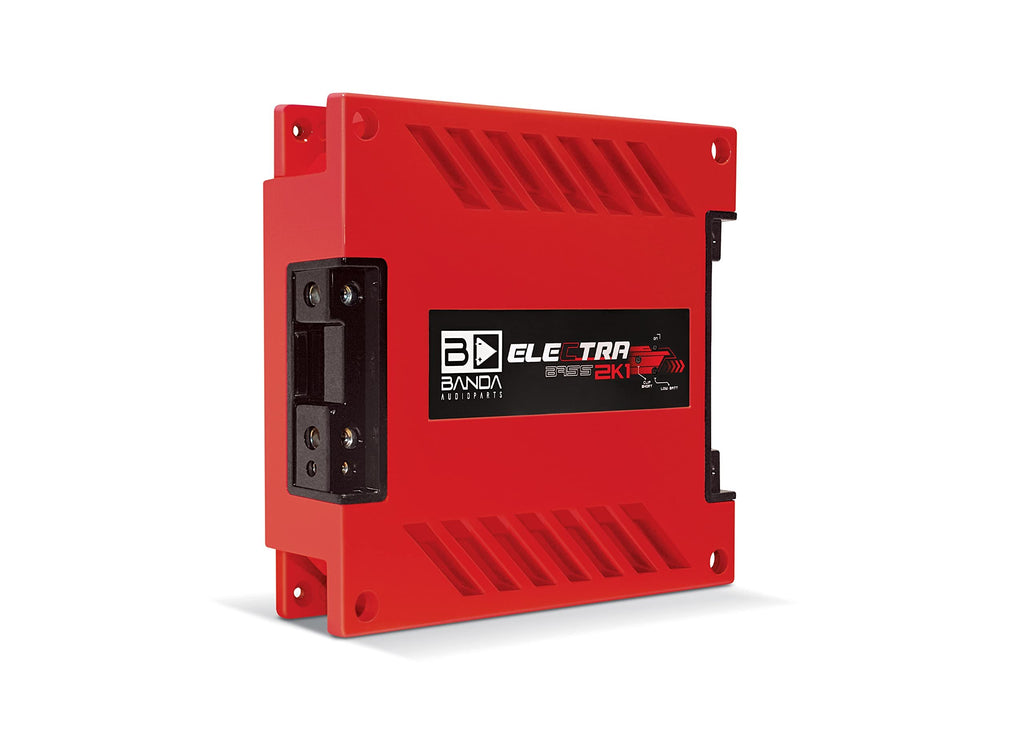

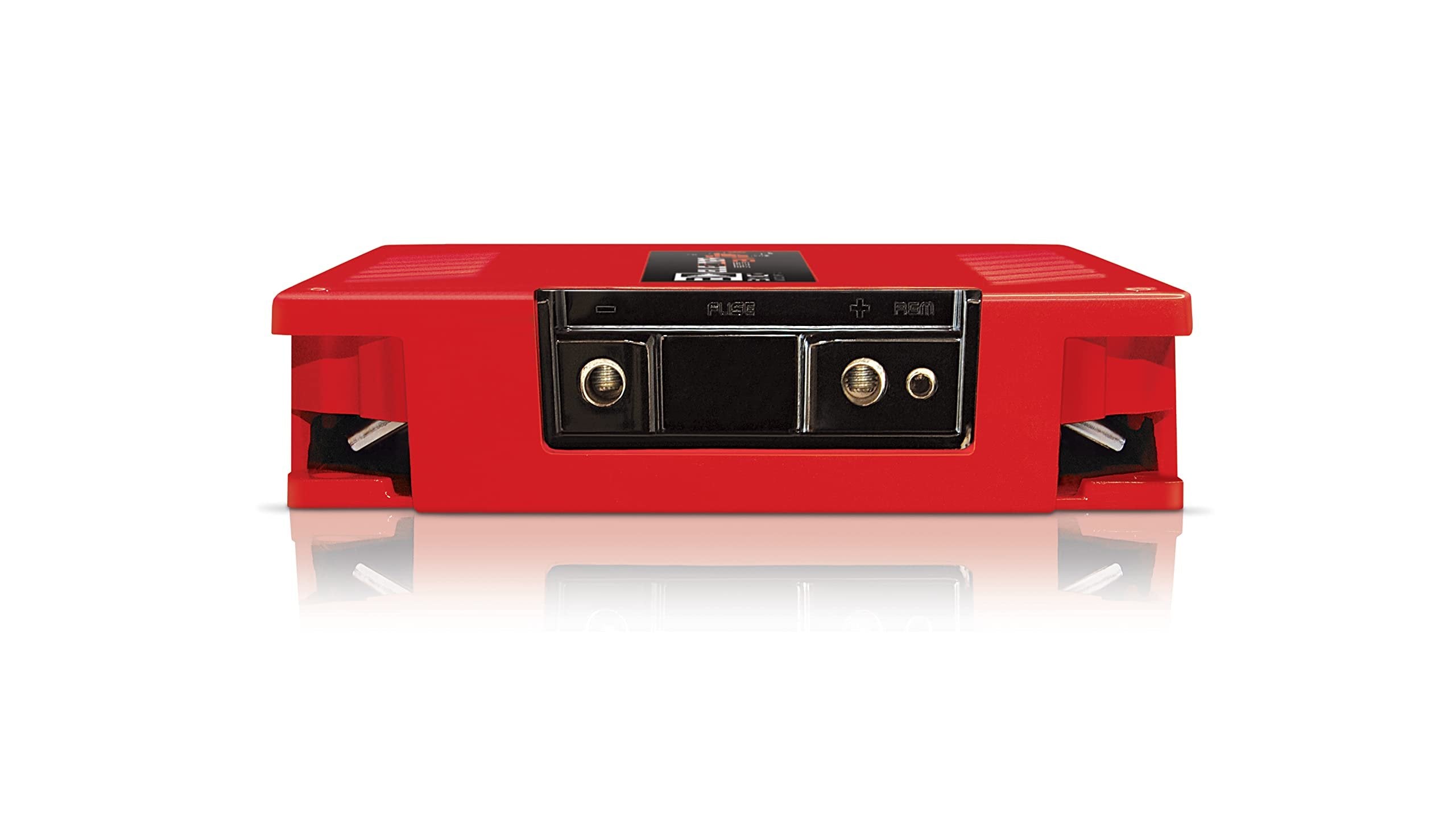

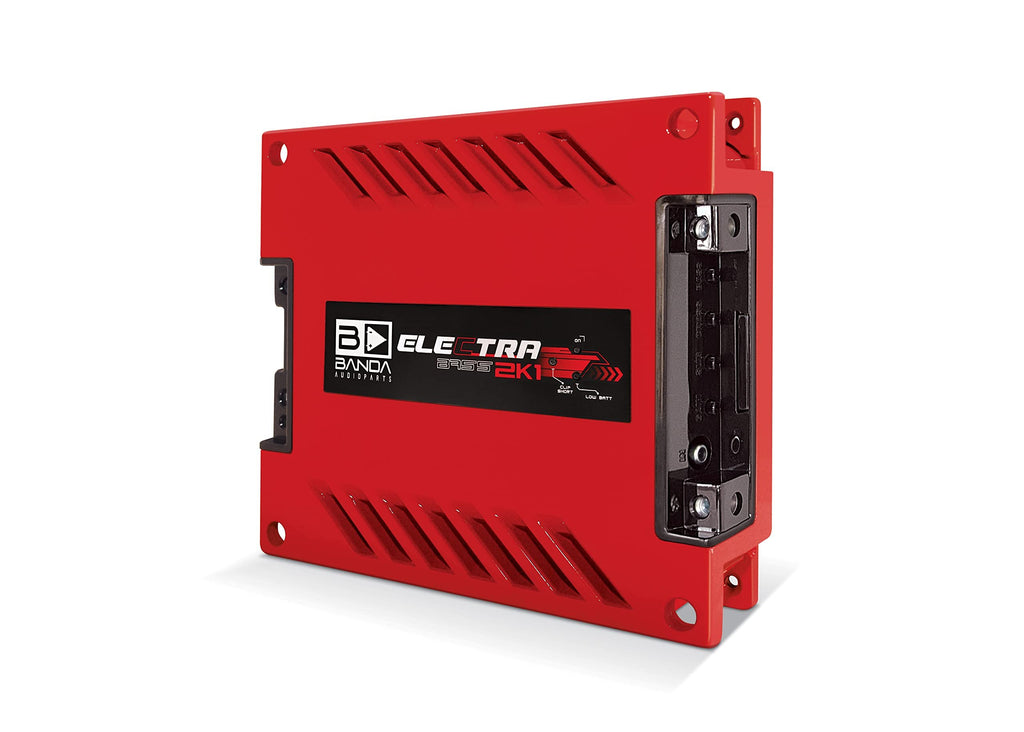

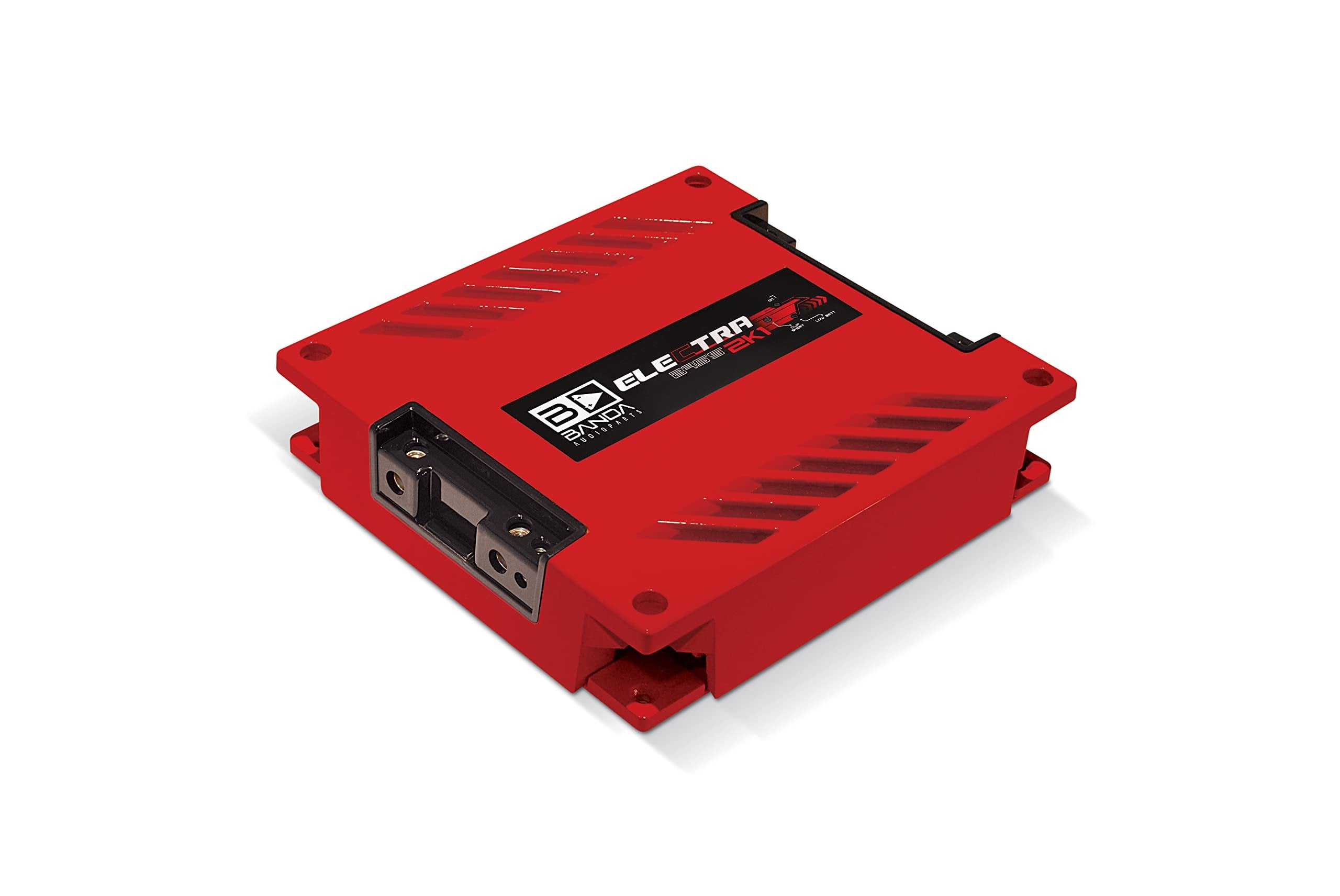

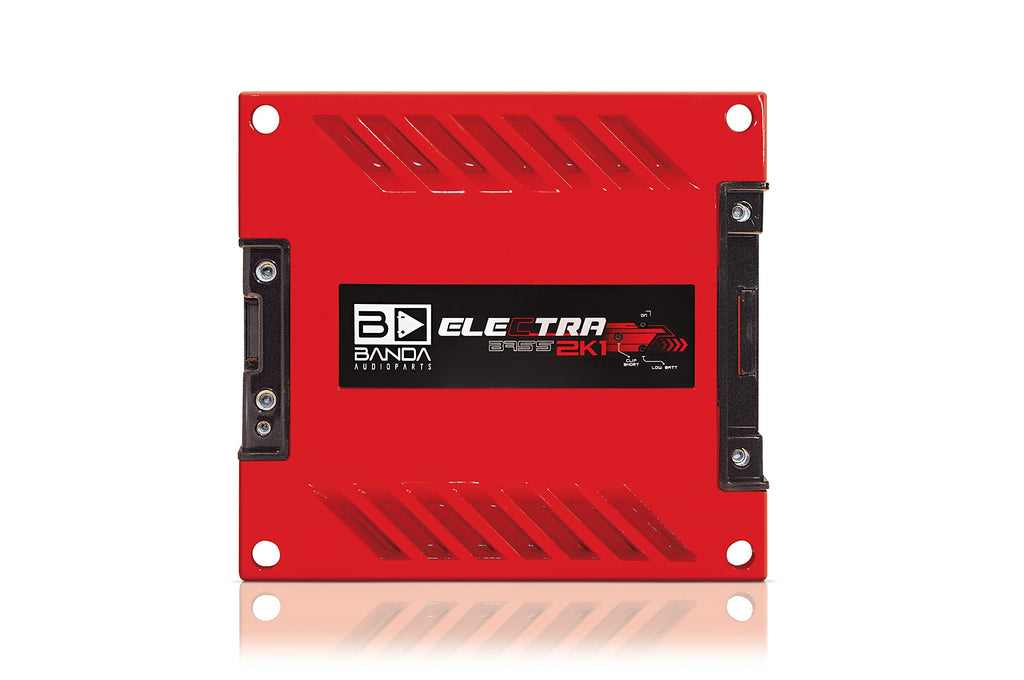

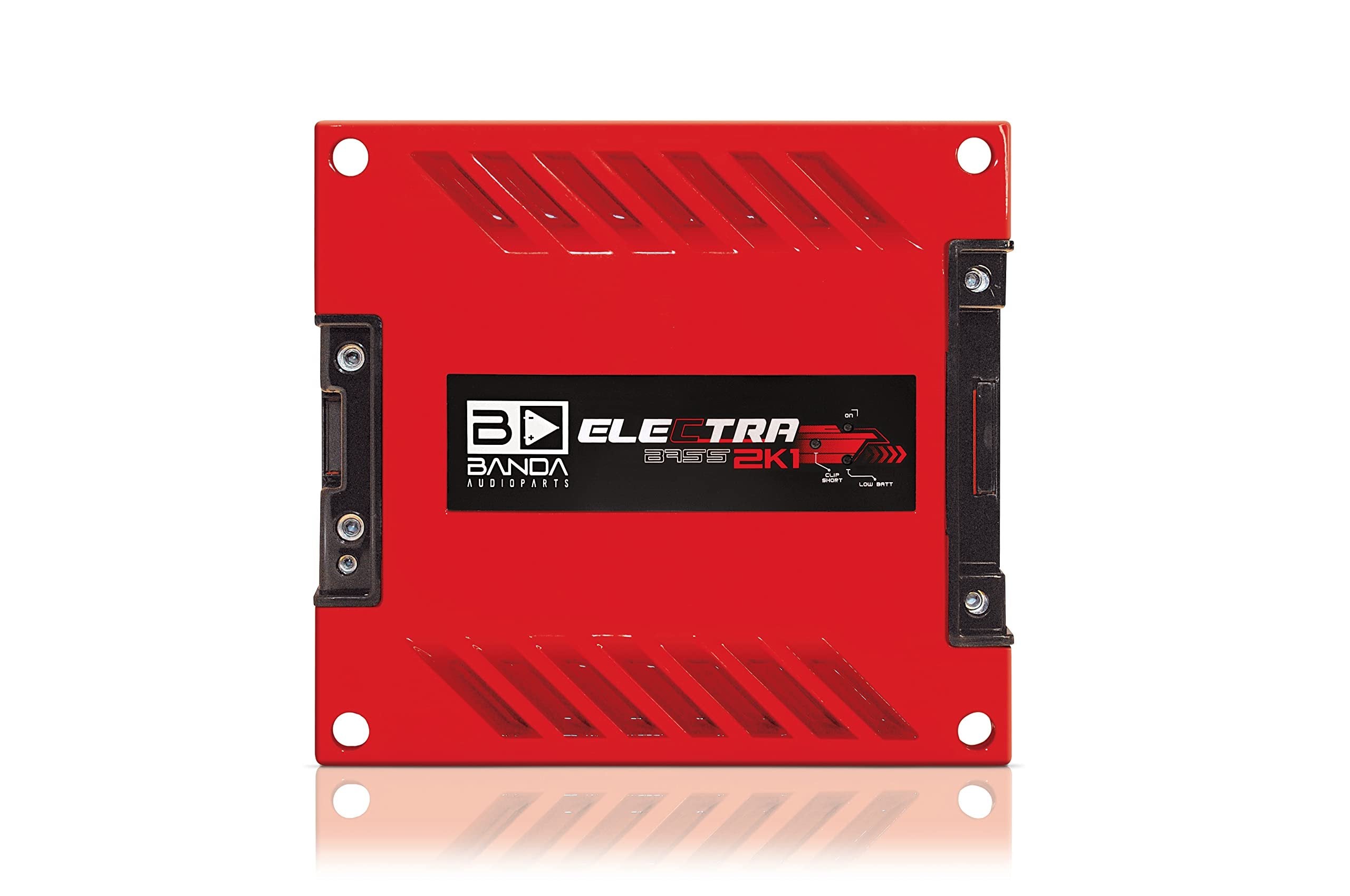

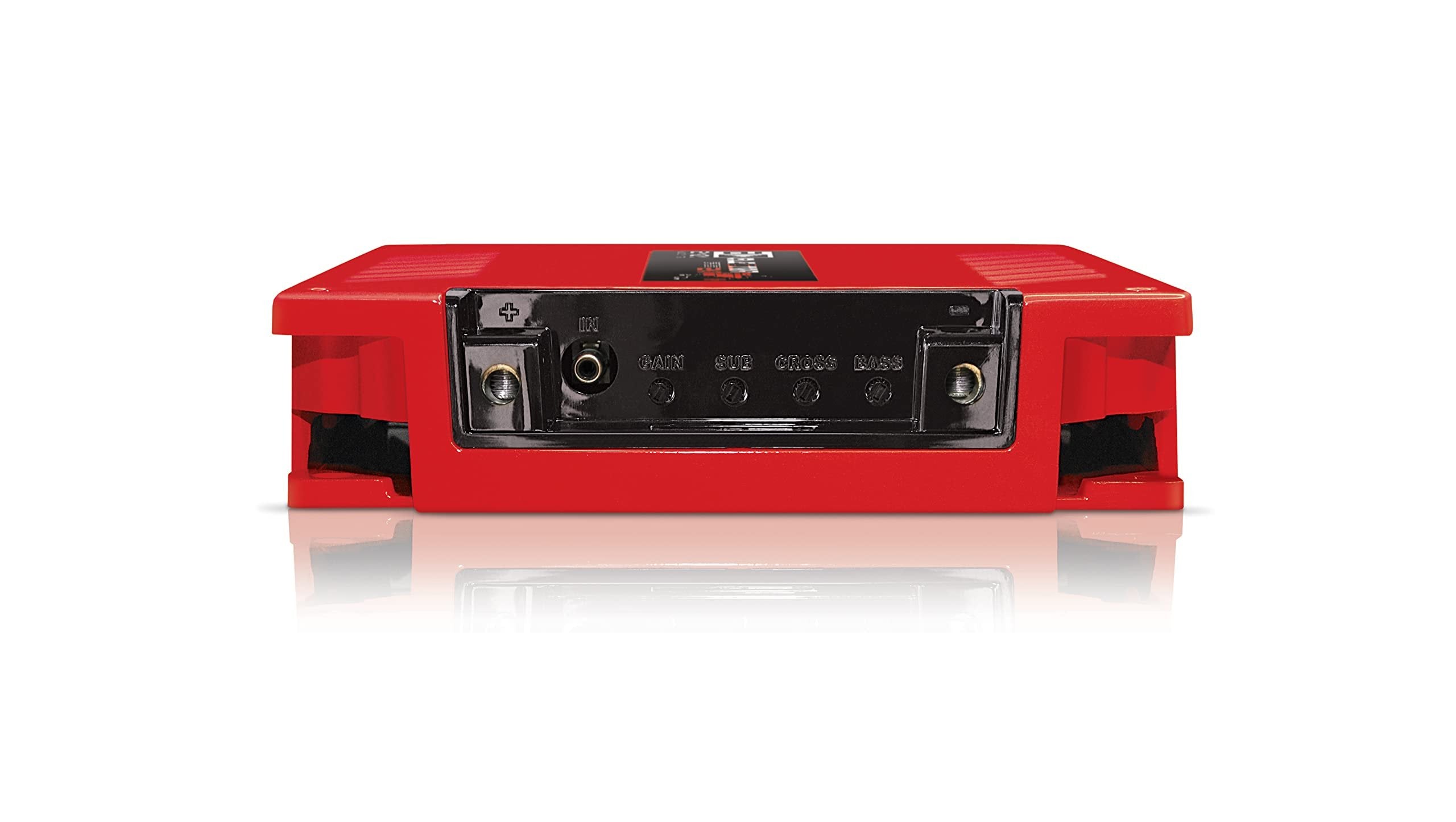

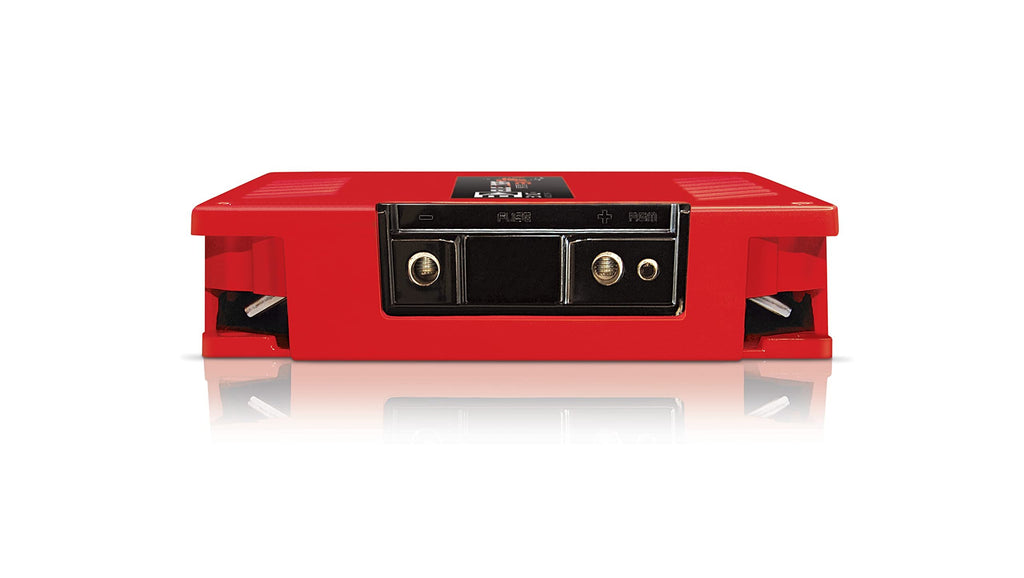

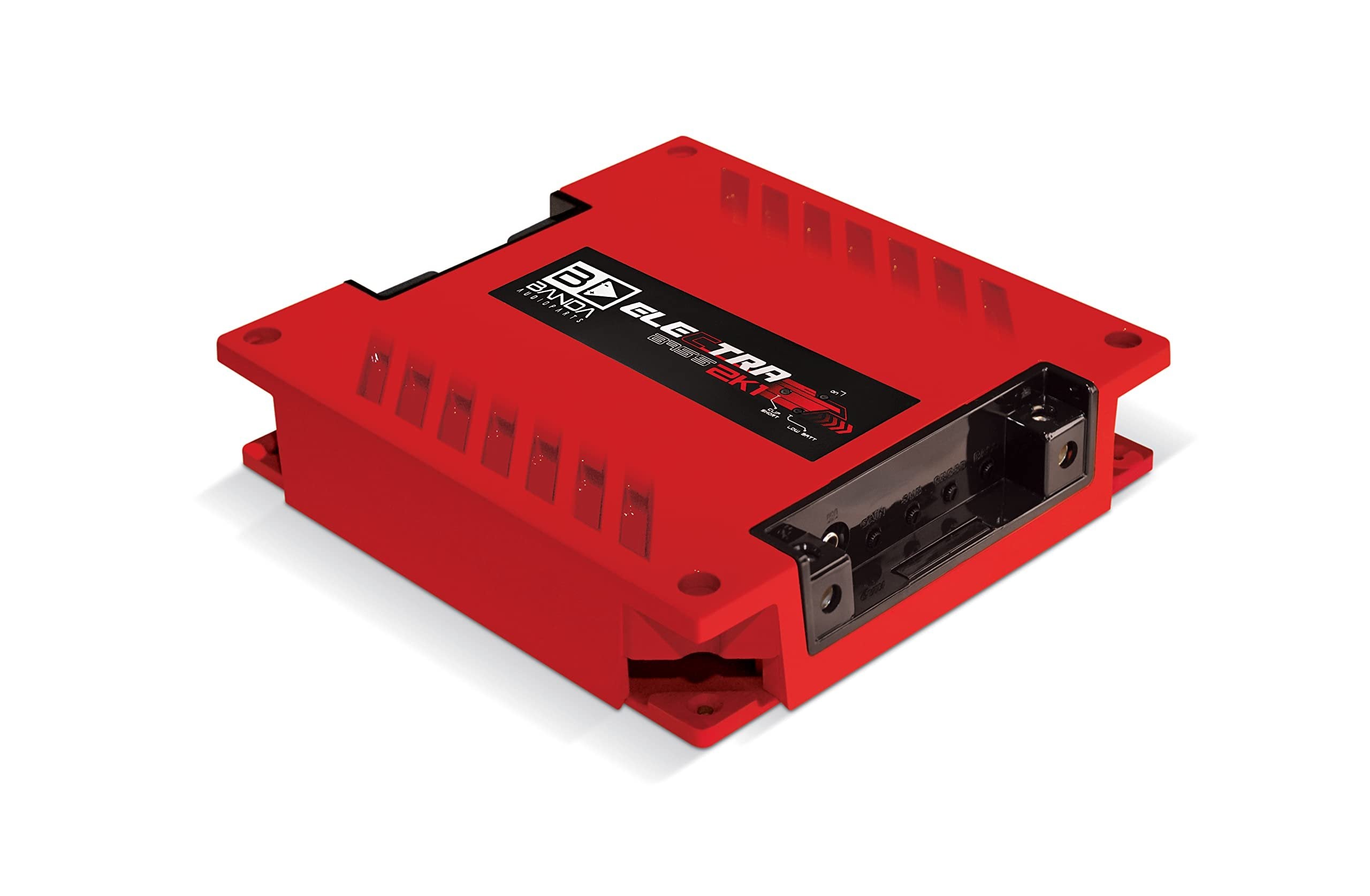

1-Channel Vehicle Audio Bass Amplifier - High-Powered Mono Bass Amplifier w/Subsonic Filter and Low Pass Filter Stable at 1 ohm, LED Indicators, Sound Specialization, Red - BANDA 2K1OHMRED
POWER SUPPLY: Class D vehicle amplifier, Power 14.4v @ 1 Ohm: 2600 WRMS, Power 14.4v @ 2 Ohms: 2000 WRMS: Power 12.6v @ 1 Ohm: 2000 WRMS, Power 12.6v @ 2 Ohms: 14800 WRMS, Efficiency @ 2 Ohms: 77%, Efficiency @ 1 Ohm: 65%
MONO BASS AMPLIFIER INDICATORS: Blue LED: source and powered amplifier indicator, Red LED: output distortion (clipping), Constant - output short circuit indicator, Yellow LED: low voltage battery, Constant - Fuse blown or missing
POWER OUTPUT AND IMPEDANCE: Input Voltage: 9 to 15V, Input Impedance: 100K Ohms, THD + Noise: less than 0.10%, Input Sensitivity: 160mV – 4V, Signal to Noise Ratio: 70dB
SOUND SPECIALIZATION: This high-powered Power Amplifier is cutting edge technology at its finest. RCA connectors ensure a secure connection between amplifier and speakers that allow distortion-free sound
OTHER TECHNICAL SPECS: Recommended Fuse: 100A, Current at Rest: 2A, Ave. Current Draw (Sinusoidal): 220A, Ave Current Draw (Music): 110A, Power Wire Gauge: 21mm/4 AWG, Speaker Wire Gauge: 2x4mm/2x11 AWG, Size: 9.6’’ x 8.2’’ x 2.1’’
