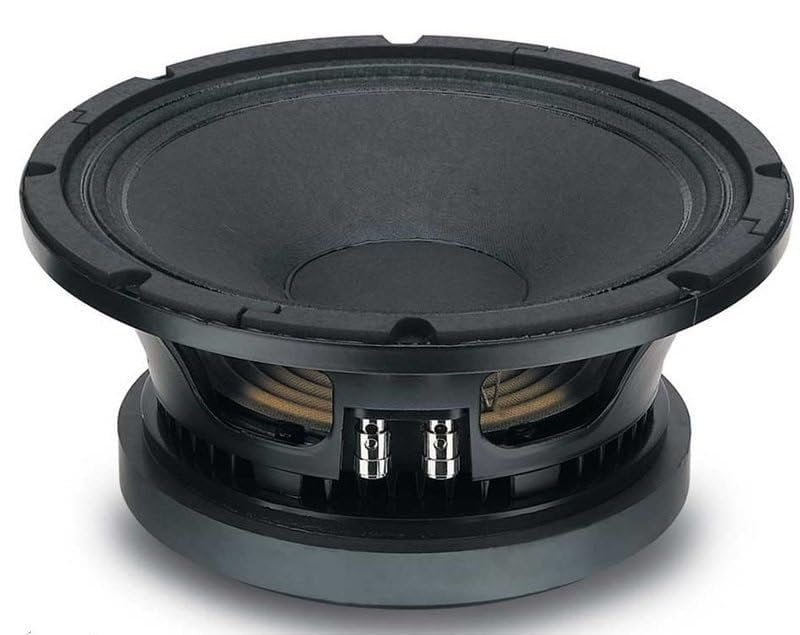

Eighteen Sound 18 10M600-810-inch Speaker Ferrite Midrange Driver 8 Ohms with Exceptional Sensitivity Over The Middle Frequency Band 800-Watt"* LF General Specifications || * Nominal Diameter: 260 mm (10 in) || * Rated Impedance: 8 Ohm || * AES Power: 400 W || * Program Power: 500 W || * Peak Power: 1200 W || * Sensitivity: 102 dB || * Frequency Range: 80 to 5200 Hz || * Power Compression at -10dB: 0,5 dB || * Power Compression at -3dB: 1,6 dB || * Power Compression at Full Power: 2,3 dB || * Max Recomm.Frequency: 3000 Hz || * Recomm.Enclosure Volume: 5 to 30 lt.(0,18 to 1,09 cuft) || "* Minimum Impedance || * 6,4 Ohm at 25 Degrees C || * Max Peak To Peak Excursion: 16 mm (0,63 in) || * Voice Coil Diameter: 75 mm (3 in) || * Voice Coil Winding Material: aluminum || * Suspension: M roll, polycotton || * Cone: Curvilinear, Paper || * HF General Specifications || * Thiele Small Parameters || * Fs: 70 Hz || * Re: 5,2 Ohm || * Sd: 0,035 sq.mt.(54,25 sq.in.) || * Qms: 4,5 || * Qes: 0,25 || * Qts: 0,23 || * Vas: 25,6 lt.(0,9 cuft) || * Mms: 32 gr.(0,07 lb) || * BL: 17,6 Tm ||* Overall diameter: 260 mm (10,24 in) || * N.of mounting holes & bolt: 8 || * Mounting holes diameter: 7,15 mm (0,28 in) || * Bolt circle diameter: 244,5 mm (9,63 in) || * Front mount baffle cutout Diameter: 232 mm (9,13 in) || * Rear mount baffle cutout Diameter: 232 mm (9,13 in) || * Total depth: (4,95 in) || * Flange & gasket thickness: (0,57 in) || * Net weight: 7,35 kg (16,23 lb) || * Shipping weight: (17,22 lb) || * CardBoard Packaging dimensions: (10,83 x 10,83 x 6,46 in) ||The 10M600 is a top performance 10-in ferrite midrange driver which offers high power handling capability w/exceptional sensitivity over the middle frequency band. It is suitable for either direct radiating or horn loaded applications as part of a 3 or 4-way auditorium, touring, or outdoor festival sound system. It is the result of an intensive development program which aimed to produce the best 10-in ferrite midrange driver available.The smooth curvilinear paper cone has a special high strength wood pulp composition & has been designed to achieve the best possible linearity within the middle frequency range & to control bell-mode resonances around the cone circumference. The cone is carried by a double half-roll suspension composed of a material which is more resistant to aging & fatigue than traditional materials, providing the correct damping & excursion control.
