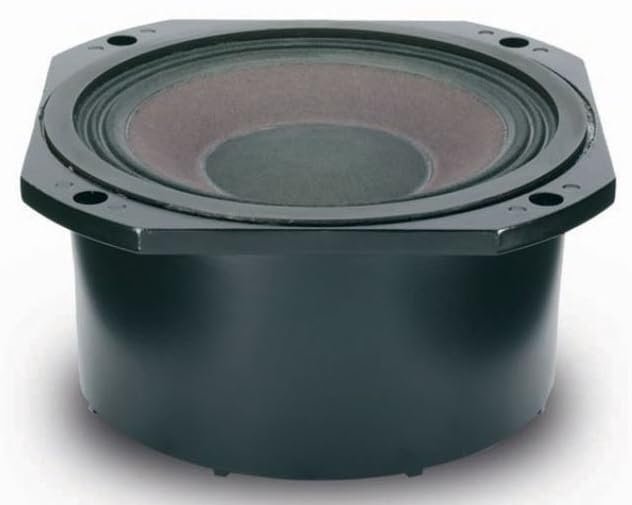

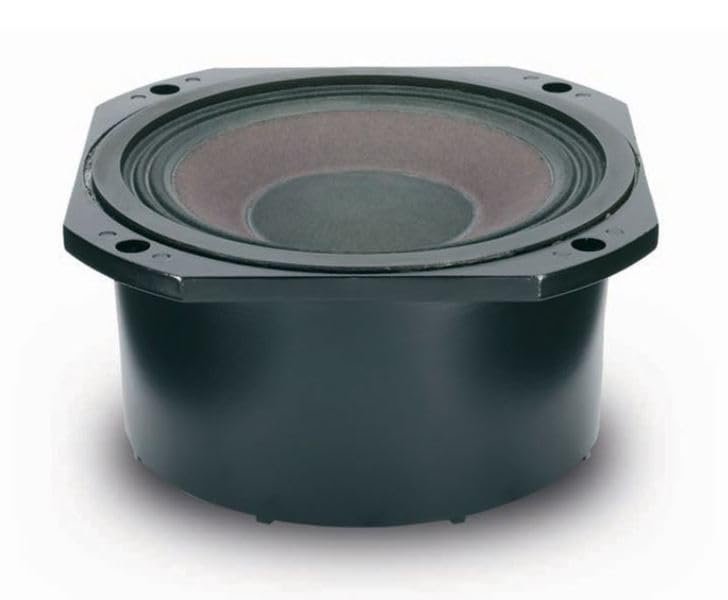

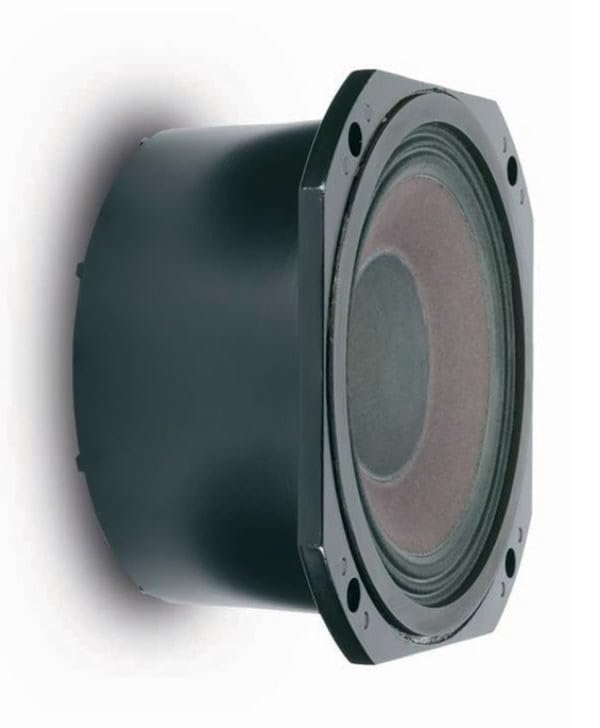

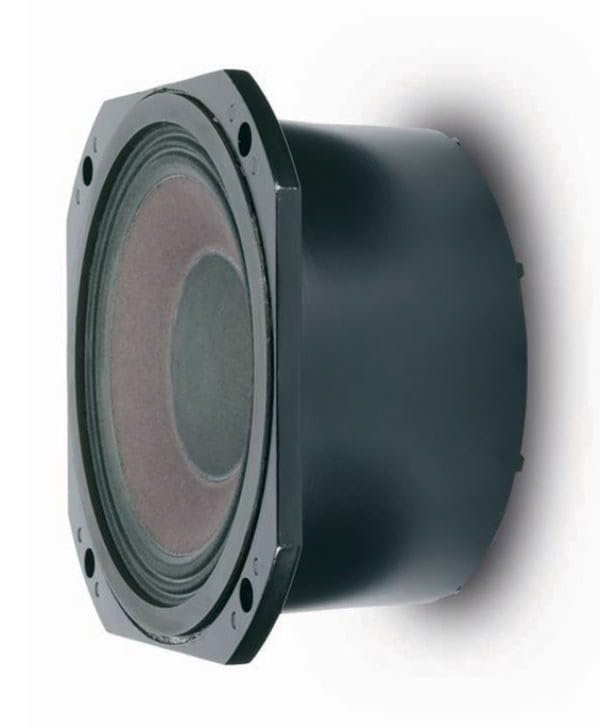

18 Sound Eighteen Sound 8NM610-8 8 Neo Mid Bass Sealed Back
- FEATURES :: 104 dB SPL 1W / 1m average sensitivity (free air) || 75 mm (3 in) Interleaved Sandwich Voice coil (ISV || 400 W AES power handling || High force neodymium motor assembly || Copper ring to linearize impedance curve || Extremely low distortion design || Sealed basket design || Humidity resistant cone || Ideal for high quality, very high SPL midrange applications ||
- "SPECIFICATIONS || Nominal Impedance : 8 Ω || Minimum Impedance : 11.0 Ω || Nominal Power Handling1 : 400 W || Continuous Power Handling2 : 600 W || Sensitivity3 : 104.0 dB || Frequency Range : 400 - 5000 Hz || Voice Coil Diameter : 75 mm (3.0 in) || "
- MOUNTING AND SHIPPING INFO || || Overall Diameter :: 240 mm (9.45 in) || || Bolt Circle Diameter :: 220 mm (8.66 in) || || Baffle Cutout Diameter :: 192.0 mm (7.56 in) || || Depth :: 113 mm (4.45 in) || || Flange and Gasket Thickness :: 14 mm (0.55 in) || || Net Weight :: 4.5 kg (9.92 lb) || || Shipping Weight :: 4.8 kg (10.58 lb) ||
- The 8NM610 is a 8 inch neodymium high output midrange frequency transducer designed around a cast aluminum sealed basket. The design goal for this unit is to achieve an extremely high sound output and quality for direct and mainly horn loaded applications such as line array configurations. The back cavity volume has been optimized with attention to horn applications and also on the heat extraction because it is a true powerful heatsink for all the encapsulated magnet structure. ||
- An oversized external configuration neodymium magnet, considerably more efficient than traditional under-pole magnet topology, have been used in order to provide high flux density and excellent distortion control. A flux stabilizing copper ring minimizes the overall harmonic and intermodulation distortion figure. The curvilinear cone, made with a high damping wood pulp, has been developed to achieve the best possible linearity within its frequency range.
