Name: 18 Sound R15NLW9401-4 RECONE KIT for 15NLW9401-4 BASS 2400-Watt VC NEO 4 OHM Woofer 100 mm Interleaved Sandwich Voice Coil 1200W AES Power Handling Fiberglass Reinforced Water Repellent Treated Cone
Brand: 18 Sound
SKU: R15NLW9401-4
Price: 244.66 USD
Availability: OutOfStock

Roll over image to zoom in Click on image to zoom

18 Sound R15NLW9401-4 RECONE KIT for 15NLW9401-4 BASS 2400-Watt VC NEO 4 OHM Woofer 100 mm Interleaved Sandwich Voice Coil 1200W AES Power Handling Fiberglass Reinforced Water Repellent Treated Cone

18 SOUND RECONE KIT FOR 15NLW9401-4 || Nominal Diameter: 380 mm (15 in) || * Rated Impedance: 8 Ohm || * AES Power: 600 W || * Program Power: 1200 W || * Peak Power: 2500 W || * Sensitivity: 97 dB || * Frequency Range: 50 - 4300 Hz || * Power Compression @-10dB: 1.0 dB || * Power Compression @-3dB: 2.8 dB || * Power Compression @Full Power: 4.0 dB ||
Max Recomm.Frequency: 1800 Hz || * Recomm.Enclosure Volume: 80 - 140 lt.(2.82 - 4.95 cuft) || * Minimum Impedance: 6.1 Ohm at 25 DegreesC || * Max Peak To Peak Excursion: 38 mm (1.50 in) || * Voice Coil Diameter: 75 mm (3 in) || * Voice Coil winding material: Aluminum || * Suspension: Triple-roll.Polycotton || * Cone: Curvilinear.high damping pulp ||
Thiele Small Parameters || * Fs: 39 Hz || * Re: 5.1 Ohm || * Sd: 0.091 sq.mt.(141.05 sq.in.) || * Qms: 9.34 || * Qes: 0.39 || * Qts: 0.37 || * Vas: 218 lt.(7.70 cuft) || * Mms: 88 gr.(0.19 lb) || * BL: 17.6 Tm || * Linear Mathematical Xmax: +/- 8 mm ( +/- 0.31 in) || * Le (1kHz): 1.10 mH || * Ref.Efficiency 1W@1m (half space): 97.2 dB ||

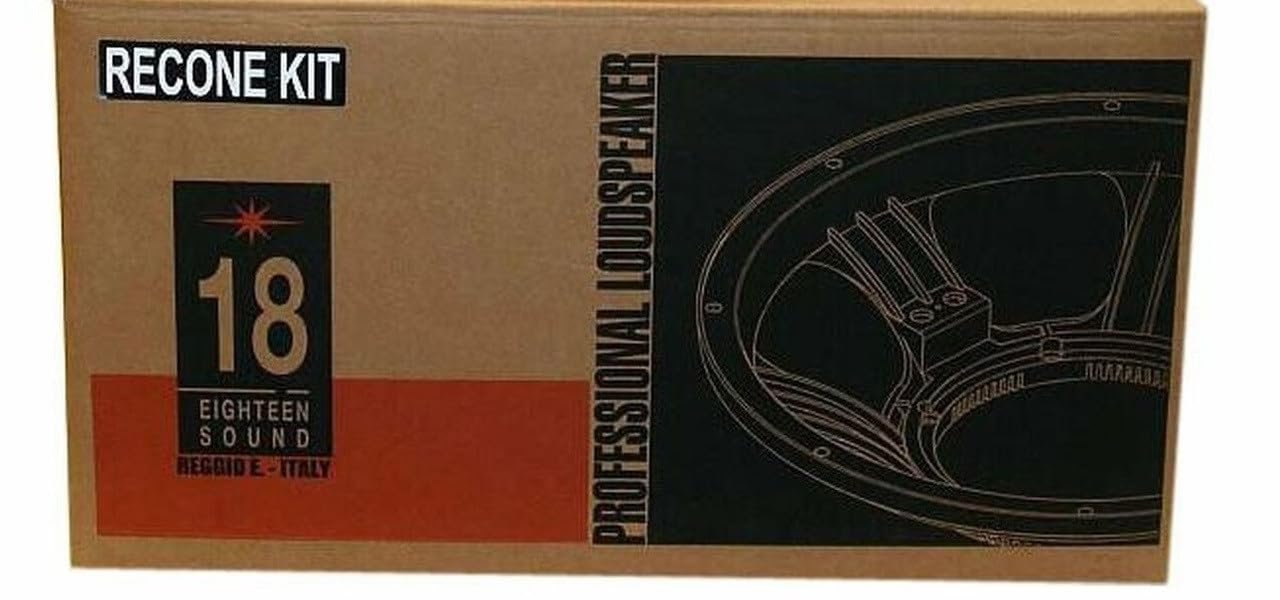

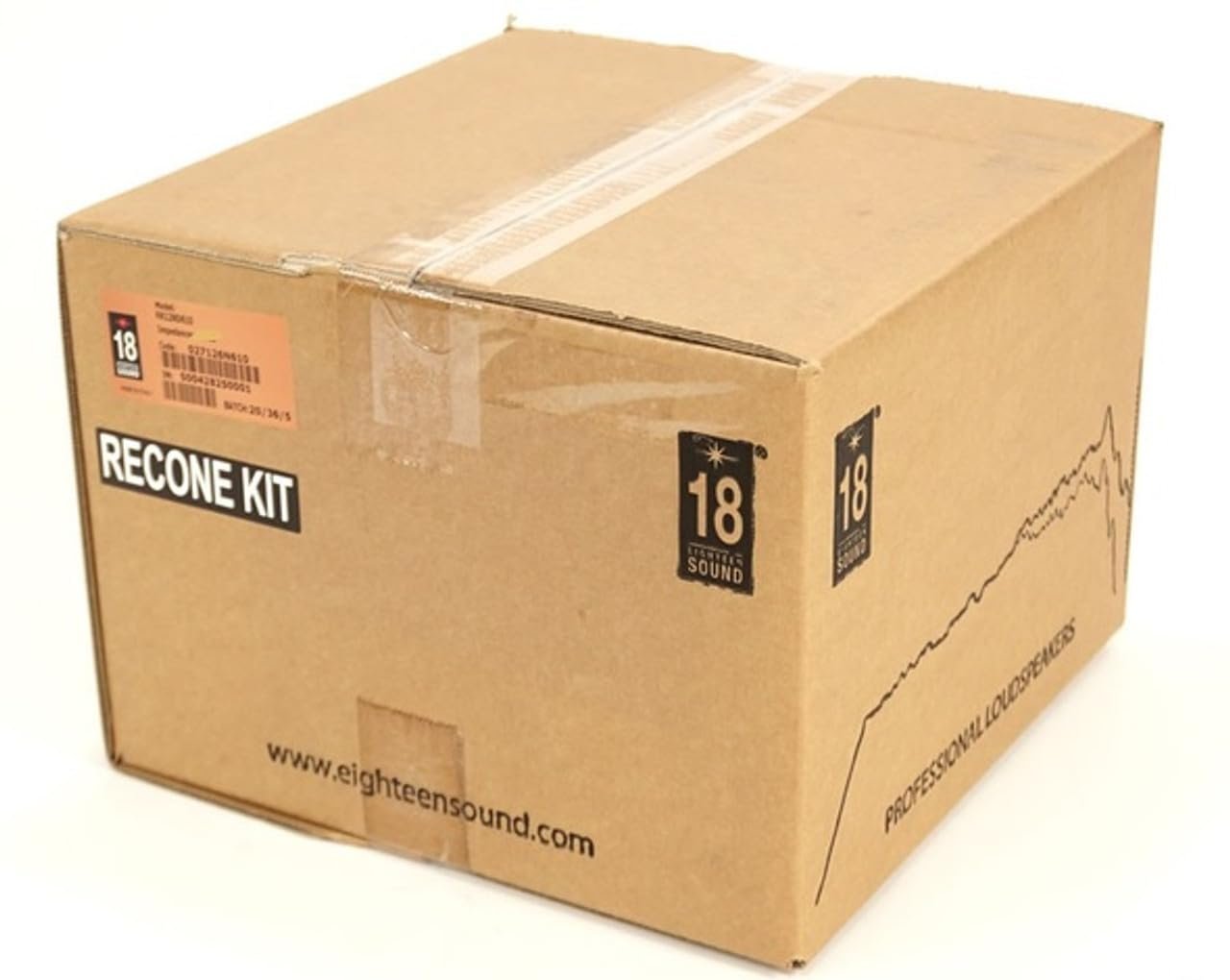

18 SOUND RECONE KIT FOR 15NLW9401-4
18 SOUND RECONE KIT FOR 15NLW9401-4
