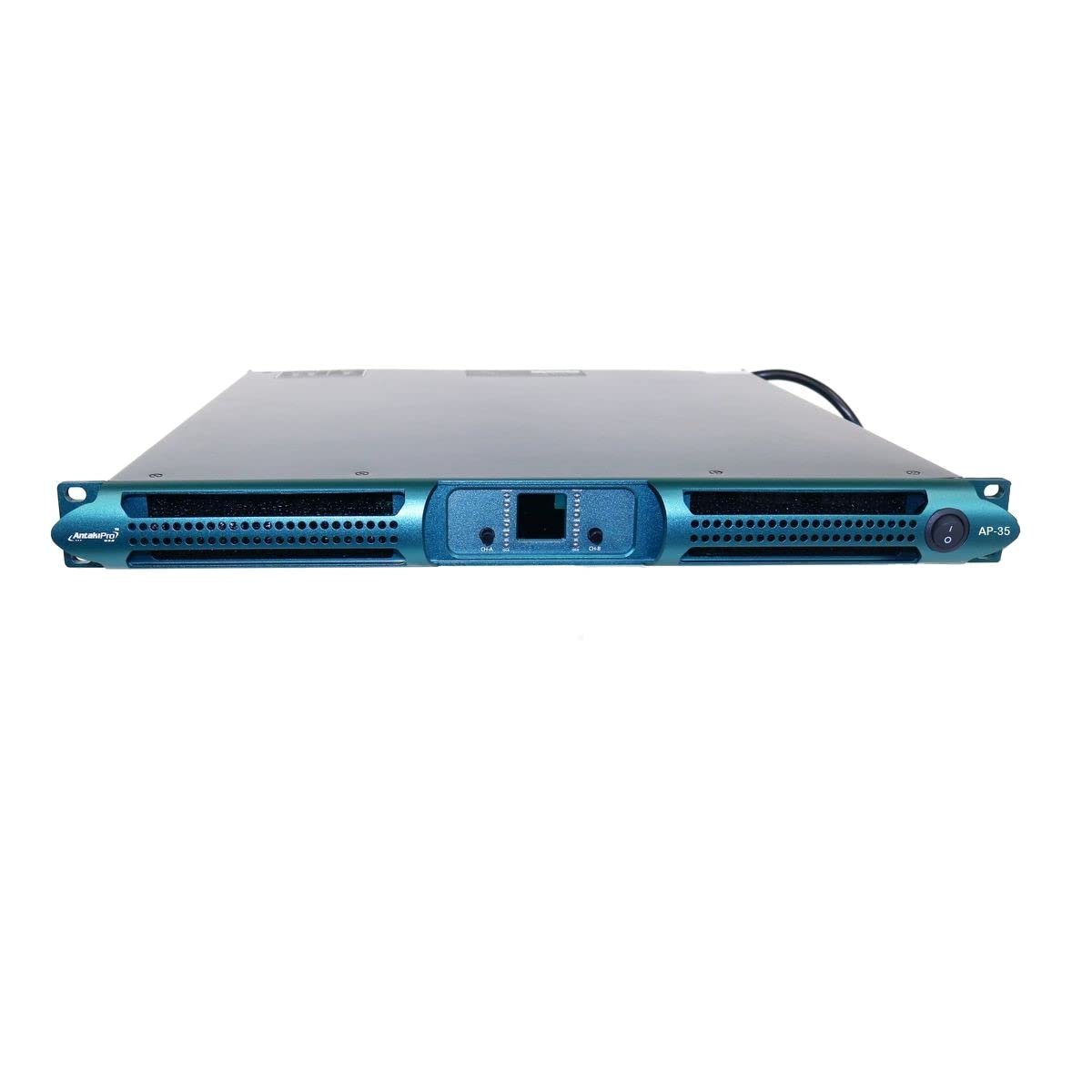

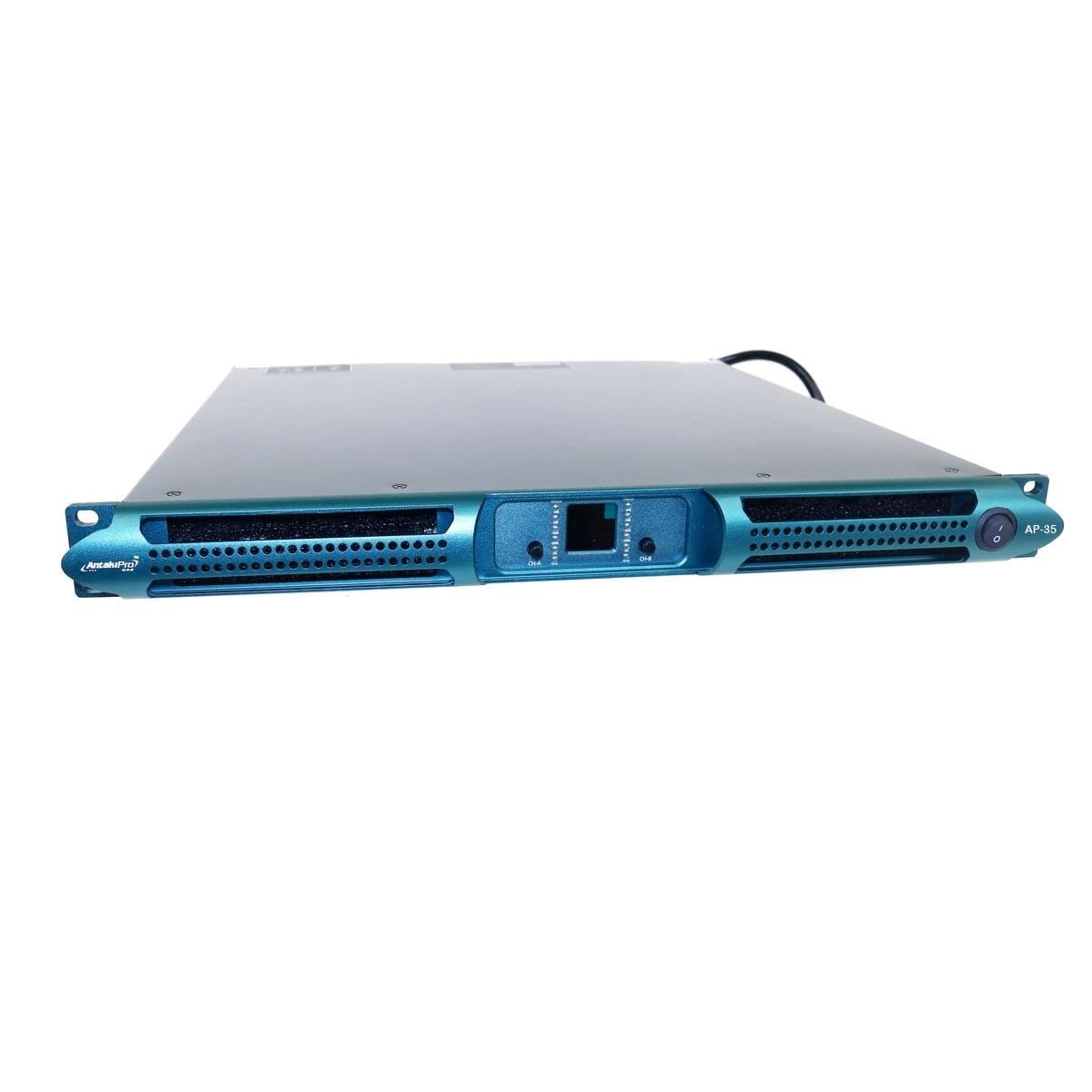

Antakipro AP-35 2ch 14950w 4 Ohm Bridge Dj Amp

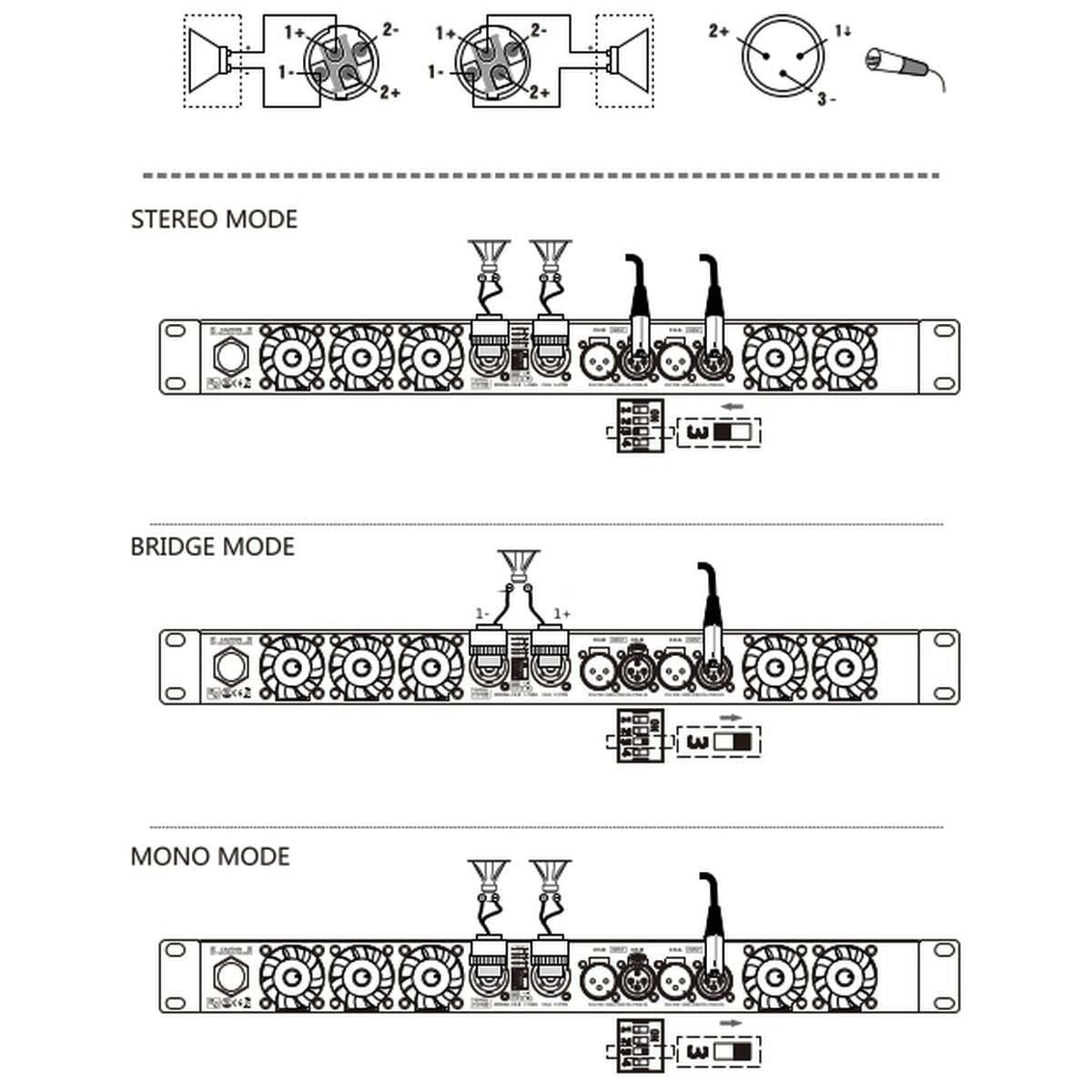

- Class - D high power audio venue amplifier. Ideal for stage or club settings. Smart and strategically functonal appearance. Intelligent soft boot, sophisticated short - circuit, overload, overheat protection. Compact steel frame, shockproof, compressive resistance. With built - in low frenquency exciter. Able to work in stereo, parallell and bridge modes. Can work under voltages of 60V to 400V.
- EIAJ Test Standard, 1 kHz, 1% THD: 2 x 3500 Watts @ 8 Ohms; 2 x 6500 Watts @ 4 Ohms; 2 x 7500 Watts @ 2 Ohms; 2 x 13000 Watts 8 Ohms Bridged; 2 x 15000 Watts 4 Ohms Bridged. * 1/8 Maximum Power Output in 4 Ohms: 1857 Watts, 10 Amps 2 Channel; 1857 Watts, 19.2 Amps Bridged. * 1/4 Maximum Power Output in 4 Ohms: 3268 Watts, 20 Amps 2 Channel; 3268 Watts, 38.9 Amps
- Alternating Current Power Supply Power: PFC Power * Rated power demand: 100 - 240 V +/ - 10%, 50/60 Hz * Operation voltage: 90V - 270V * Power correction factor cos (f): >0.95 @ >500 W * Standby: 47W and 0.8A * Gain,Sensitivity: 32dB, 35dB, 38dB, 41dB * Maximum Output Voltage/Current: 185V/85A(370V in the BRIDGE MODE) * Power Comsumption: 230V (115V in the BRIDGE MODE) * Operating temperature: 0 Degrees - 45C / 32 Degrees - 113 Degrees F * Cooling system: Tunnel through cooling system
- Frequency Response: 20 Hz - 20 kHz (1 W @ 8 ohms, +/ - 0.5 dB) * Signal - to - Noise Ratio: >110 dBA (20 Hz - 20 kHz, A weighted) * Crosstalk: > 66 dB @ 1 kHz * Input Impedance: 10 k Ohms balanced * Total Harmonic Distortion (THD): <0.5% from 1 W to full power (Typical value<0.05%) <0.5% from 1 W to full power (Typical value<0.05%) * Intermodulation Distortion (IMD): <0.5% from 1 W to full power (Typical value<0.05%) * Damping Factor (8 ohms) > 5000 @ 20 - 200 Hz
