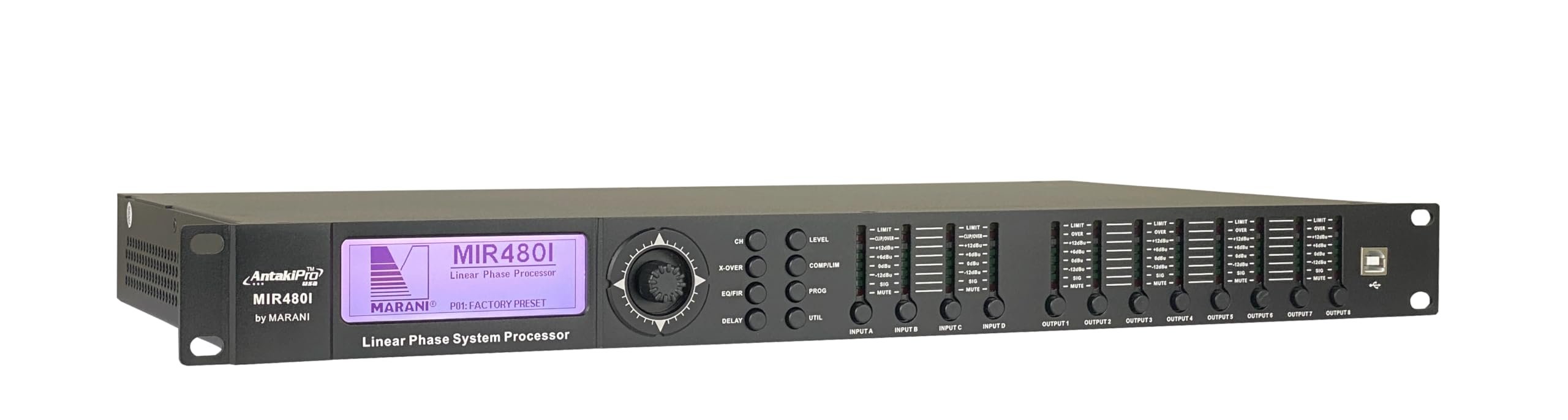

ANTAKIPRO MIR480I MIR Flagship FI Series Dynamic Auto Pro Audio Sound Management Equalizer System 4 Input 8 Output Channel DSP AUD 5 Antakipro by Marani for The MIR480 880FEATURES (1) || Exclusive MARANI Technology || MIR Marani Linear Phase HP/LP filters (no phase distortion) || 8 Channels plug-in with 5-band dynamic equalization (DEQ) || - 3 Peak filters and Low/High Shelving filters || - 4 Operational modes (Boost/Cut Above/Below Threshold) || - 3 Q-value modes peak filters: ConstQ, VarQLTH, VarQHTL || - Full 20 Hz ~ 20 kHz frequency range coverage || Backup source input switching ||FEATURES (2) || Flexible Routing Matrices || Output channel summing matrices option || Up to 4096 Taps FIR filter || Dynamic Loudness Filter || RMS compressor on each input/output channel || Low distortion Peak Limiter on output channels || Simultaneous control of 128 networked units || Grouping with control of gain, mute, PEQ, and polarity || Managed through our MARANI Control software ||AUDIO (1) || Input impedance : 20KΩ || Output impedance : 150Ω || A/D dynamic range : 123dB || D/A dynamic range : 129dB || Maximum input level : =22dBu || Maximum output level : =21.5dBu || Total harmonic distortion : <0.0015% (+21dBu 1KHz) || Frequency response : 20Hz~45kHz || Crosstalk : ≦-98dB ||AUDIO (2) || Signal-to-noise ratio : ≧116dB +20dBu 1KHz || Noise floor : ≦-96dB (A weighting) || Common Mode Rejection Ratio : 65dB || Number of analog input channels : 4 || Number of analog output channels : 8 || Rs485 control port : 2 || Network control port : 1 || GENERAL || Dimensions : 482x44x253(mm) 1RU || Package size : 580x340x120（mm） || Weight, Net / Shipping : 3.3 Kg / 3.8Kg || Preset number : 50 ||The MIR-F/I Series is the pinnacle of professional audio processing technology. Designed for professional Sound and System Engineers, these processors feature advanced capabilities such as Dynamic EQ (DEQ) and Auto EQ (AEQ). With up to 27 bands of parametric equalizers, the MIR-F/I Series allows extensive customization to meet the unique needs of any audio environment. The 8 channels Dynamic EQ processing module incorporates a sophisticated 5-band dynamic equalization system
