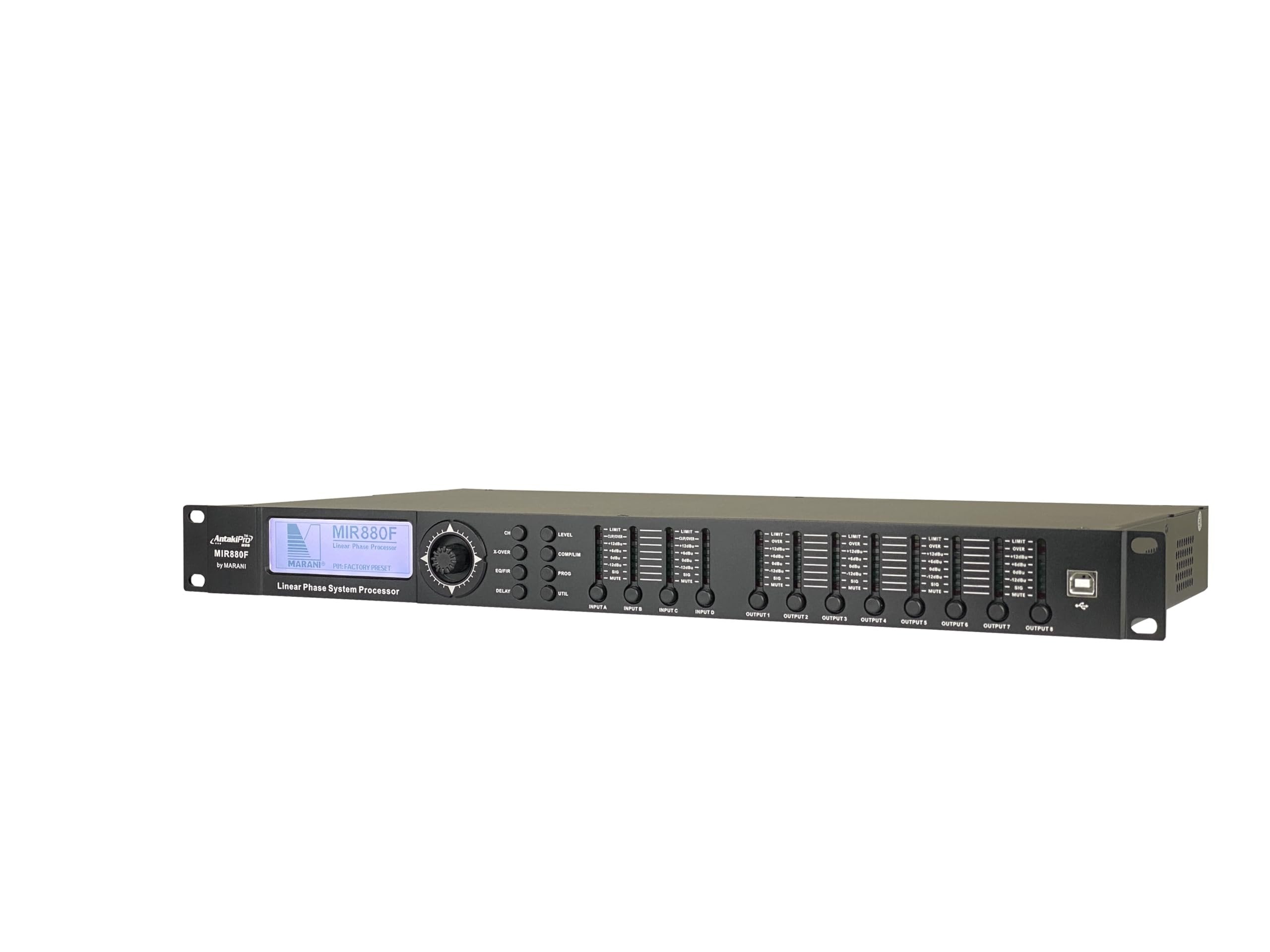

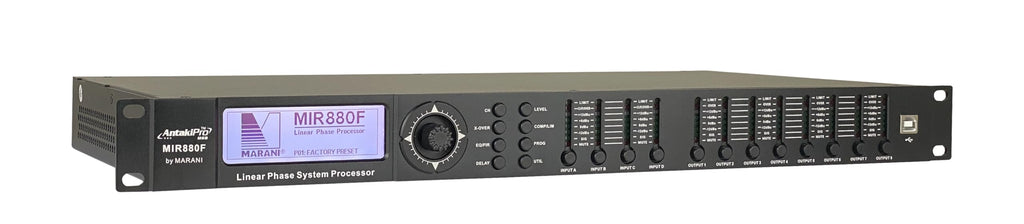

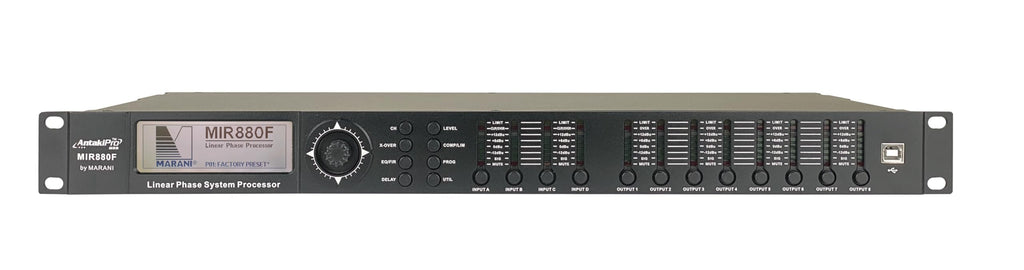

ANTAKIPRO MIR880F MIR Flagship FI Series Digital Processor 8 Input 8 Output DSP AUD 5 Pro Audio Sound System Processing Channels AutoEQ Balancing Algorithm - Antakipro by Marani for The MIR480 880
AUDIO (1) || Input impedance : 20KΩ || Output impedance : 150Ω || A/D dynamic range : 123dB || D/A dynamic range : 129dB || Maximum input level : +22dBu || Maximum output level : +21.5dBu || Total harmonic distortion : <0.0015% (+21dBu 1KHz) || Frequency response : 20Hz~45kHz || Crosstalk : ≦-98dB || Signal-to-noise ratio : ≧116dB +20dBu 1KHz || Noise floor : ≦-96dB (A weighting) ||

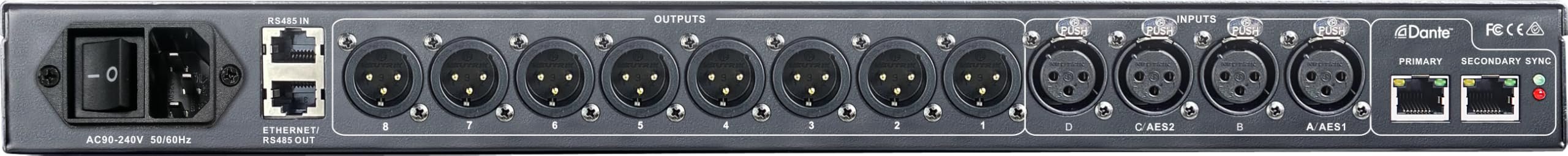

AUDIO (2) || Number of Dante channels : 4x4@48kHz 2x2@96kHz Ultimo/Brooklyn optional || Common Mode Rejection Ratio : 65dB || Number of analog input channels : 4 || Number of analog output channels : 8 || Rs485 control port : 2 || Network control port : 1 || GENERAL || Dimensions : 482x44x253(mm) 1RU || Package size : 580x340x120(mm) || Weight, Net / Shipping : 3.3 Kg / 3.8Kg || Preset number : 50 ||
FEATURES (1) || Whole machine operates at a sampling rate of 96KHz the frequency response remains flat between 20Hz-45kHz || Complete 8 input +8 output processing channels maximum simultaneously 12 output channels (analog +Dante) || Innovative full matrix mixing input channels are sent to plug-in nodes in any proportion different plug-in nodes can also be mixed into one or more output channels or even two adjacent output channels can be mix into the physical output channel ||
FEATURES (2) || AutoEQ automatic balancing algorithm, can run at the input/plug-in/output position, one-click measurement of impulse response, according to manually set or automatically calculated flat frequency response. You can use pure IIR/ pure FIR/IIR+FIR mixed modes to completely solve the phase problem. || Up to 4096Taps FIR filter. || Advanced Plugins, including 96kHz extended bandwidth FIR filter and Dynamic EQ..etc. ||
FEATURES (3) || The MIR linear phase crossover filter is a brand new frequency crossover filter, can use any of the classical filter shape, without any phase distortion, so that the phase curve remains original. || Each output is equipped with a Dynamic EQ (DEQ, Dynamic Equalization) designed and developed exclusively by MARANI for dynamic compensation/attenuation management of the system. Each DEQ provides 5 segments of filters including: 3 peak filters and low/high Scheffer filters ||
