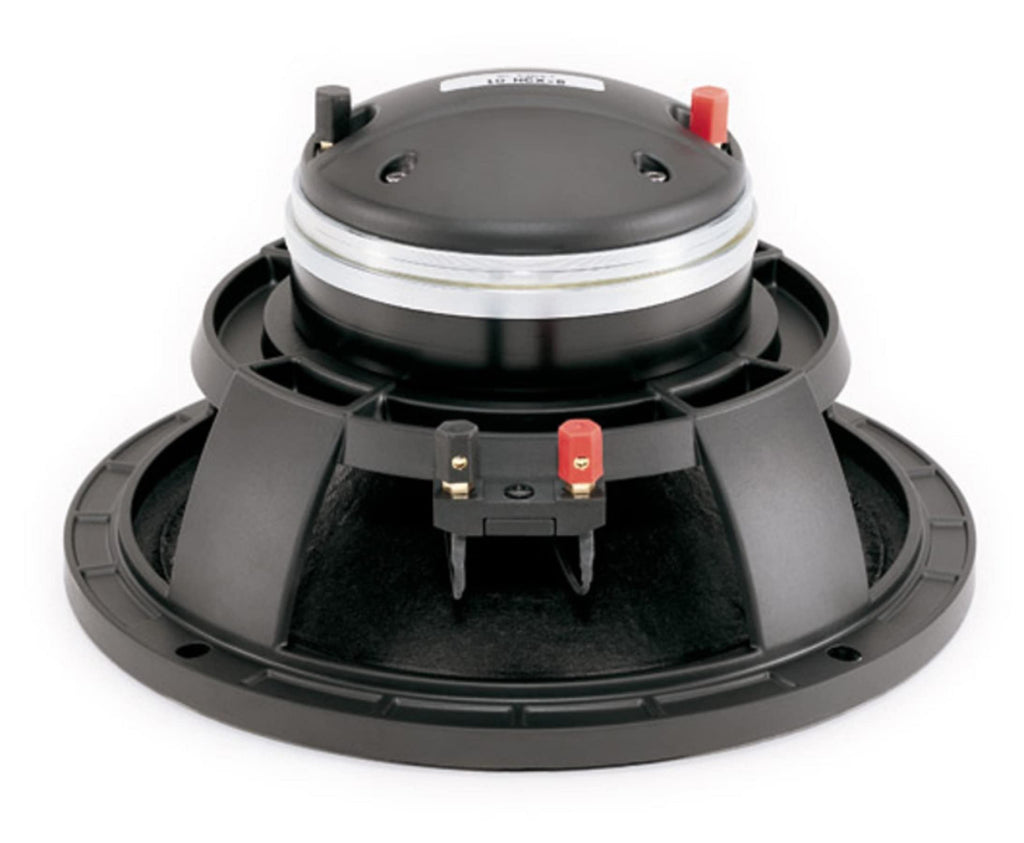

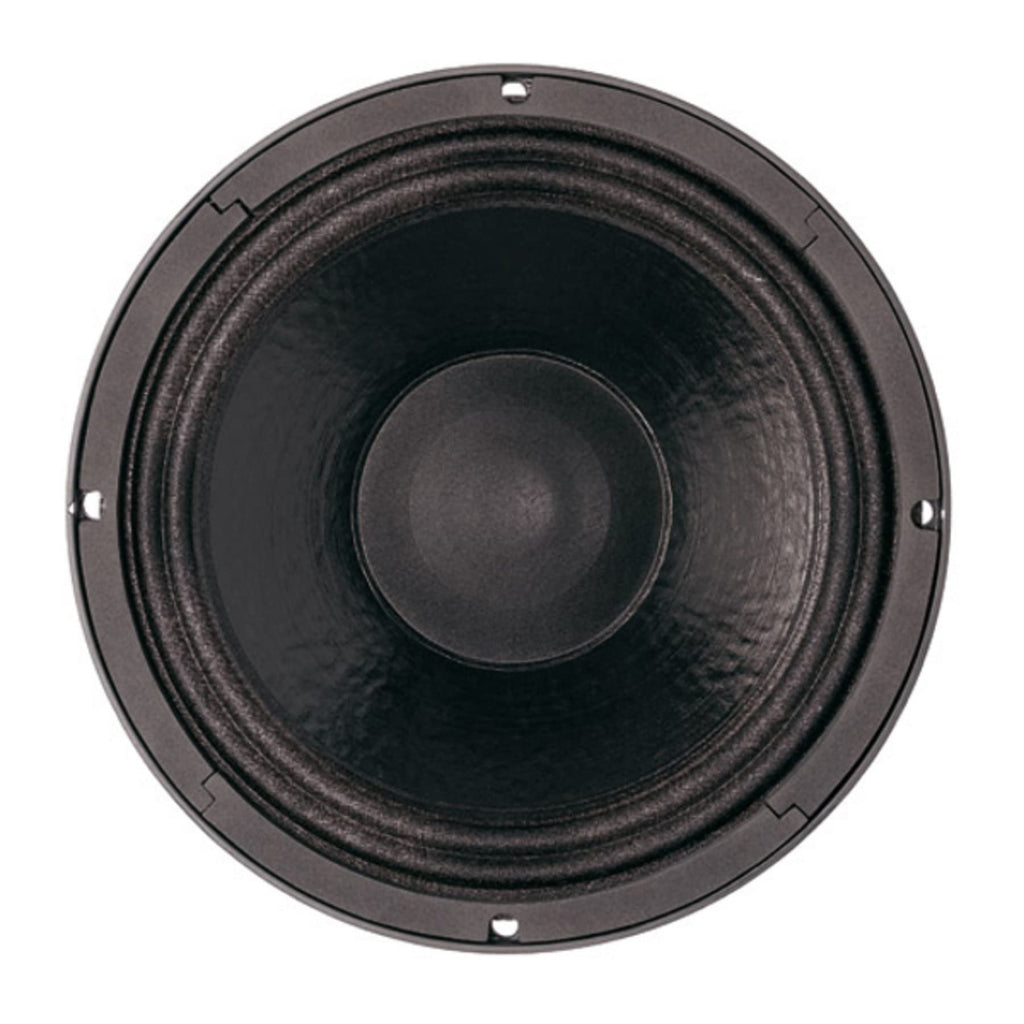

B & C Speakers 10NCX-8 Coaxials 10-Inch Neo Coax 8 Ohm Neodymium Ring Magnet 400 Watt Pro Audio Component Speaker Driver for Motorcycle Car || 400 W continuous program power capacity * 70° nominal coverage * 60 - 18000 Hz response * 94 dB sensitivity * Neodymium magnet assembly * 45.8 mm (1.8”) HF unit exit diameter * FB10NCX dedicated crossover network || SPECIFICATIONS || Nominal Diameter :: 225 mm (10.0 in) || Nominal Impedance :: 8 Ω || Minimum Impedance LF :: 6.8 Ω || Minimum Impedance HF :: 7.3 Ω || Frequency Range :: 60 - 18000 Hz || Dispersion Angle1 :: 70 ° || Woofer Cone Treatment :: TWP Waterproof Both Sides || Magnet Material :: Neodymium Ring || PARAMETERS || Resonance Frequency :: 57 Hz || Re :: 5.6 Ω || Qes :: 0.35 || Qms :: 3.7 || Qts :: 0.32 || Vas :: 40.0 dm3 (1.4 ft3) || Sd :: 320.0 cm2 (49.1 in2) || η₀ :: 2.0 % || Xmax :: ± 3.0 mm || Xvar :: ± 6.0 mm || Mms :: 28.0 g || Bl :: 12.7 Txm || Le :: 1.2 mH || EBP :: 162 Hz || MOUNTING AND SHIPPING INFO || Overall Diameter :: 262 mm (10.3 in) || Bolt Circle Diameter :: 245 mm (9.6 in) || Baffle Cutout Diameter :: 230 mm (8.8 in) || Depth :: 144 mm (5.7 in) || Flange and Gasket Thickness :: 14 mm (0.55 in) || Net Weight :: 3.9 kg (8.6 lb) || Shipping Units :: 1 || Shipping Weight :: 4.8 kg (10.58 lb) || Shipping Box :: 360x360x200 mm (14.17x14.17x7.87 in) || SERVICE KIT || LF recone kit :: RCK010NCX8 || MF replacement diaphragm :: MMD6108M, B0BWC34GY9, 728990194065, 10NCX-8
400 W continuous program power capacity * 70° nominal coverage * 60 - 18000 Hz response * 94 dB sensitivity * Neodymium magnet assembly * 45.8 mm (1.8”) HF unit exit diameter * FB10NCX dedicated crossover network
SPECIFICATIONS || Nominal Diameter :: 225 mm (10.0 in) || Nominal Impedance :: 8 Ω || Minimum Impedance LF :: 6.8 Ω || Minimum Impedance HF :: 7.3 Ω || Frequency Range :: 60 - 18000 Hz || Dispersion Angle1 :: 70 ° || Woofer Cone Treatment :: TWP Waterproof Both Sides || Magnet Material :: Neodymium Ring
PARAMETERS || Resonance Frequency :: 57 Hz || Re :: 5.6 Ω || Qes :: 0.35 || Qms :: 3.7 || Qts :: 0.32 || Vas :: 40.0 dm3 (1.4 ft3) || Sd :: 320.0 cm2 (49.1 in2) || η₀ :: 2.0 % || Xmax :: ± 3.0 mm || Xvar :: ± 6.0 mm || Mms :: 28.0 g || Bl :: 12.7 Txm || Le :: 1.2 mH || EBP :: 162 Hz
MOUNTING AND SHIPPING INFO || Overall Diameter :: 262 mm (10.3 in) || Bolt Circle Diameter :: 245 mm (9.6 in) || Baffle Cutout Diameter :: 230 mm (8.8 in) || Depth :: 144 mm (5.7 in) || Flange and Gasket Thickness :: 14 mm (0.55 in) || Net Weight :: 3.9 kg (8.6 lb) || Shipping Units :: 1 || Shipping Weight :: 4.8 kg (10.58 lb) || Shipping Box :: 360x360x200 mm (14.17x14.17x7.87 in)
SERVICE KIT || LF recone kit :: RCK010NCX8 || MF replacement diaphragm :: MMD6108M
