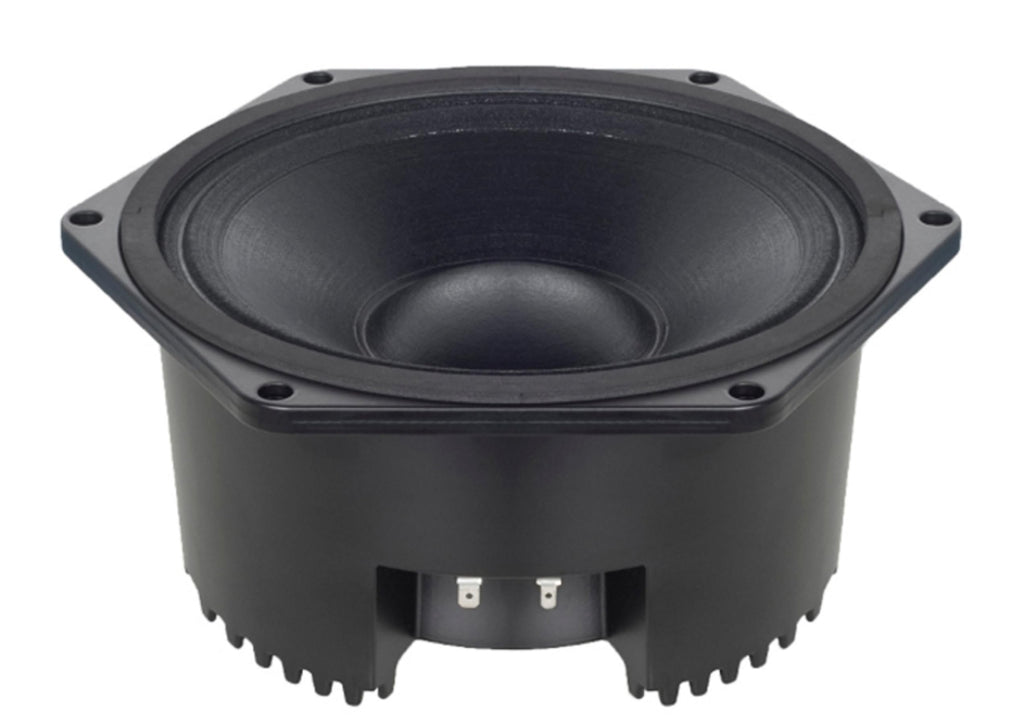

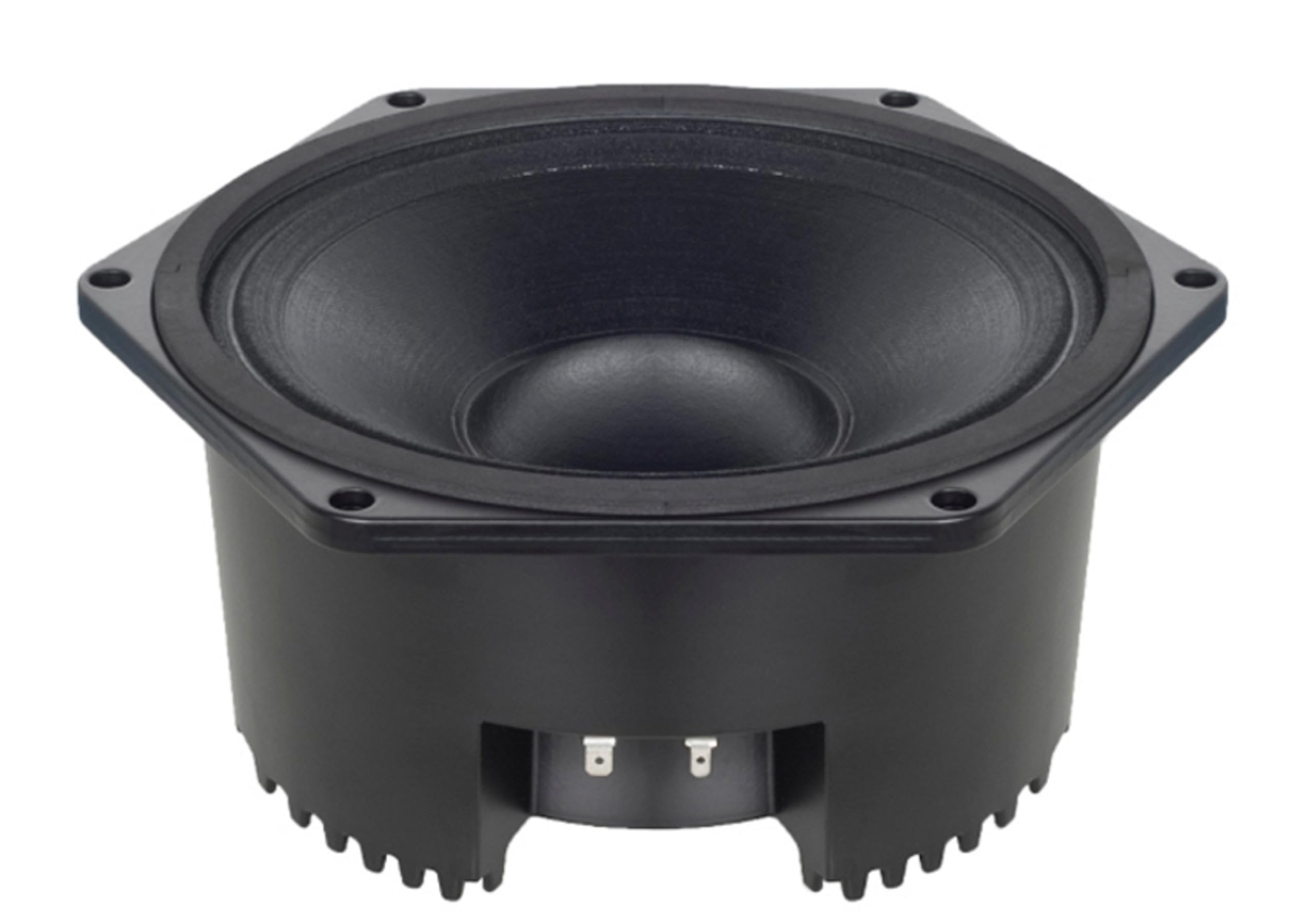

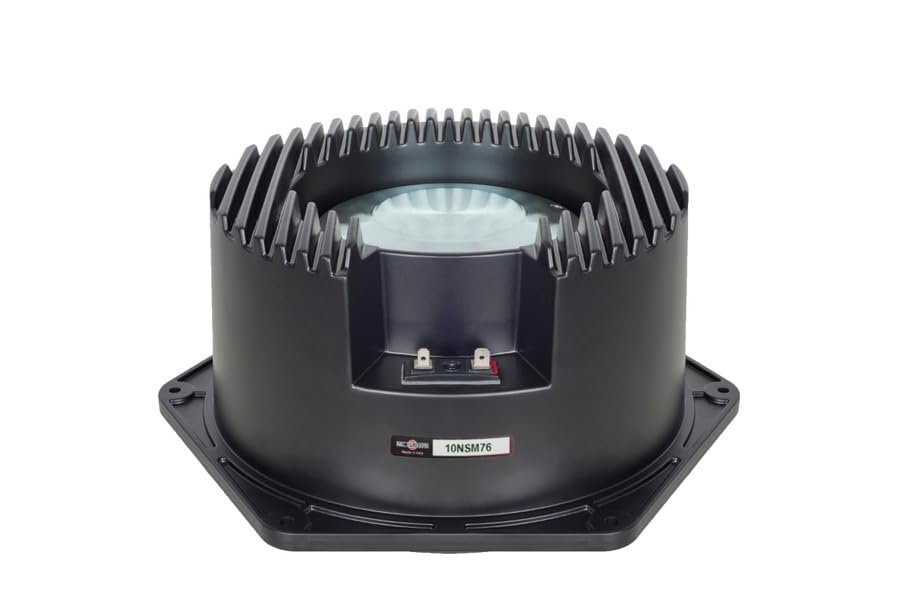

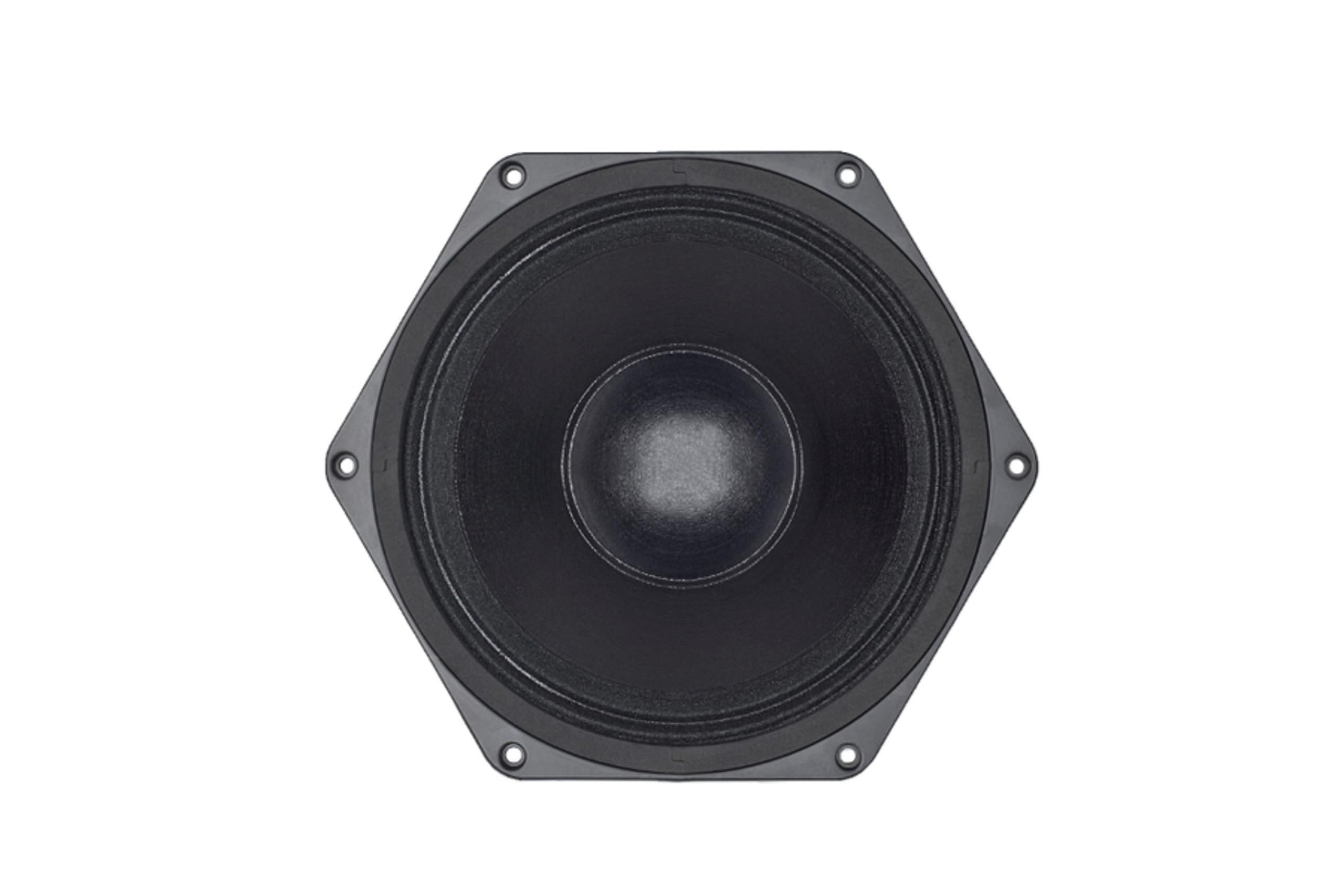

B&C Speakers 10NSM76-8 LF Drivers 10-inch ND Sealed Mid Pro Audio Component Speaker Driver for Motorcycle Car with 8 Ohms Impedance 400 Watts Rms 800 Watts Max Neodymium Inside Slug
- "HIGHLIGHTS 800 W continuous program power capacity | 76 mm (3 in) aluminium voice coil | 235 - 3500 Hz response | 100 dB sensitivity | Ideal for Direct Radiation and Horn Loaded | Midrange application | "
- "SPECIFICATIONS | Nominal Diameter : 250 mm (10.0 in) | Nominal Impedance : 8 Ω | Minimum Impedance : 7.0 Ω | Nominal Power Handling1 : 400 W | Continuous power handling2 : 800 W | Sensitivity (1W/1m)3 : 100.0 dB | Frequency Range : 235 - 3500 Hz | Voice Coil Diameter : 76 mm (3.0 in) | Winding Material : Aluminium | Former Material : Glass Fibre | Winding Depth : 11.0 mm (0.45 in) | Magnetic Gap Depth : 9.0 mm (0.35 in) | Flux Density : 1.6 T | "
- "MOUNTING AND SHIPPING INFO || Overall Diameter : 291 mm (11.46 in) | Bolt Circle Diameter : 274 mm (10.79 in) | Baffle Cutout Diameter : 234.0 mm (9.21 in) | Depth : 130 mm (5.12 in) | Flange and Gasket Thickness : 12 mm (0.47 in) | Air Volume Occupied by Driver : 5.0 dm3 (0.18 ft3) | Net Weight : 4.55 kg (10.03 lb) | Shipping Units : 1 | Shipping Weight : 5.45 kg (12.02 lb) | Shipping Box : 360x360x200 mm (14.17x14.17x7.87 in) | "
- "DESIGN : || Surround Shape : Accordion | Cone Shape : Radial | Magnet Material : Neodymium Ring | Spider : Single | Pole Design : T-Pole | Woofer Cone Treatment : WP Waterproof Front Side | "
- For simplified cabinet assembly & efficient thermal transfer to the air, our NS M series of sealed back midranges feature a cast aluminum sealed chassis, high strength neodymium motor & large internal volume for good low frequency performance. Large voice coils provide power handling, while careful selection of suspension and cone components results in exceptional sensitivity. These dedicated narrow-bandwidth midranges offer the lowest distortion at given output of any midrange available.
