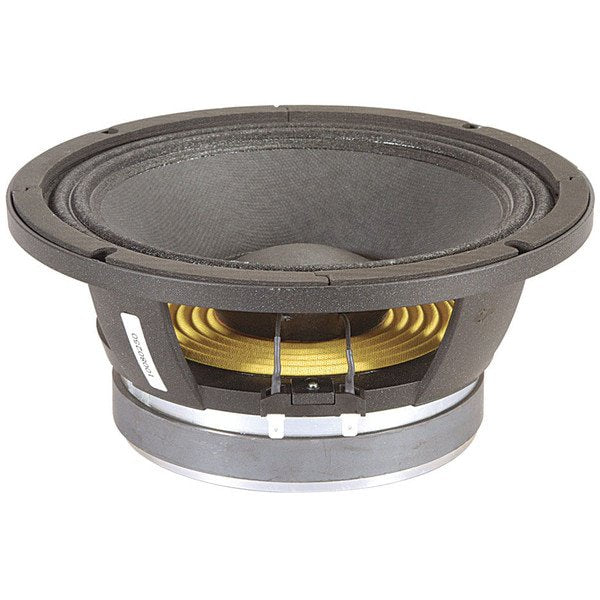

B&C Speakers 10PS26-8 LF Driver 10-inch Woofer Mid Bass 350 Wrms 700 Watts Pro Audio Car Motorcycle Speaker Component Driver Applications 8-OhmFEATURES 700 W continuous program power capacity || 76 mm (3 in) aluminium voice coil || 55 - 4000 Hz response || 96 dB sensitivity || Shorting copper cap for extended HF response ||SPECIFICATIONS || Nominal Diameter : 250 mm (10 in) || Minimum Impedance : 7.1 Ω || Continuous Power Handling : 700 W || Frequency Range : 55 Hz - 4000 Hz || Winding Material : Aluminium || Winding Depth : 18 mm (0.71 in) || Flux Density : 0.9 T || Nominal Impedance : 8 Ω || Nominal Power Handling : 350 W || Sensitivity : 96 dB || Voice Coil Diameter : 76 mm (3 in) || Former Material : Glass Fibre || Magnetic Gap Depth : 10 mm (0.4 in) || Woofer Cone Treatment : None ||PARAMETERS || Fs : 54 Hz || Qes : 0.33 || Qts : 0.29 || Sd : 320 cm² (49.1 sq²) || Xmax : 5.5 mm || Mms : 33 g || Le : 1.2 mH || Re : 6 Ω || Qms : 2.9 || Vas : 38 dm³ (1.3 ft³) || η0 : 1.8 % || Xvar : 5 mm || Bl : 14.1 Tm || EBP : 164 Hz ||DESIGN || Surround Shape : Double Roll || Magnet Material : Ferrite || Pole Design : T-Pole || Recommended Enclosure : 25 dm³ (0.88 ft³) || Cone Shape : Exponential || Spider : Single || Woofer Cone Treatment : None || Recommended Tuning : 65 Hz ||MOUNTING AND SHIPPING INFO || Overall Diameter : 262 mm (10.3 in) || Baffle Cutout Diameter : 230 mm (8.8 in) || Flange and Gasket Thickness : 14 mm (0.55 in) || Shipping Units : 1 pcs || Shipping Box : 295x314x175 mm (11.61x12.36x6.89 in) || Bolt Circle Diameter : 245 mm (9.6 in) || Depth : 123 mm (4.8 in) || Net Weight : 6.05 kg (13.34 lb) || Shipping Weight : 6.65 kg (14.66 lb)
