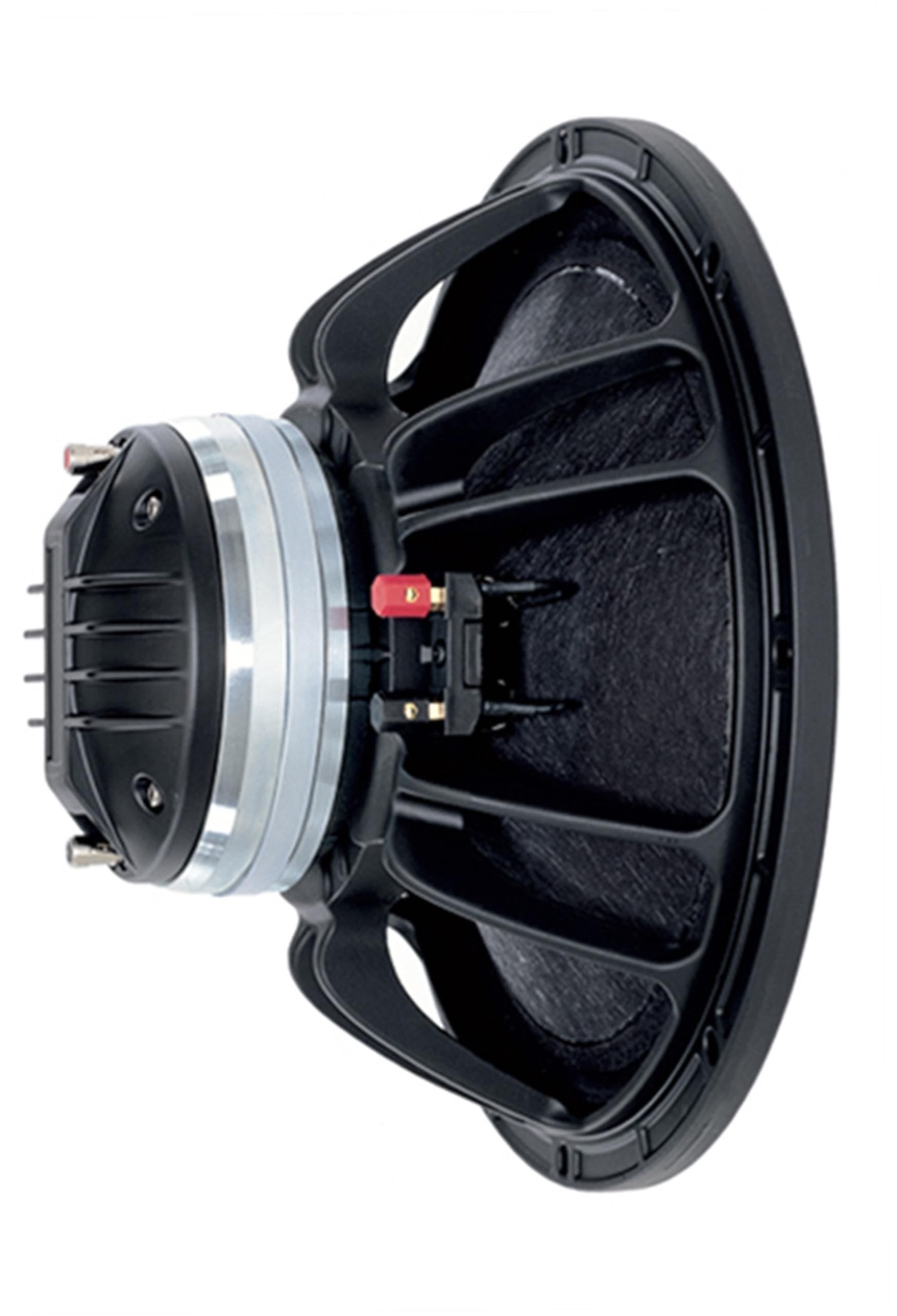

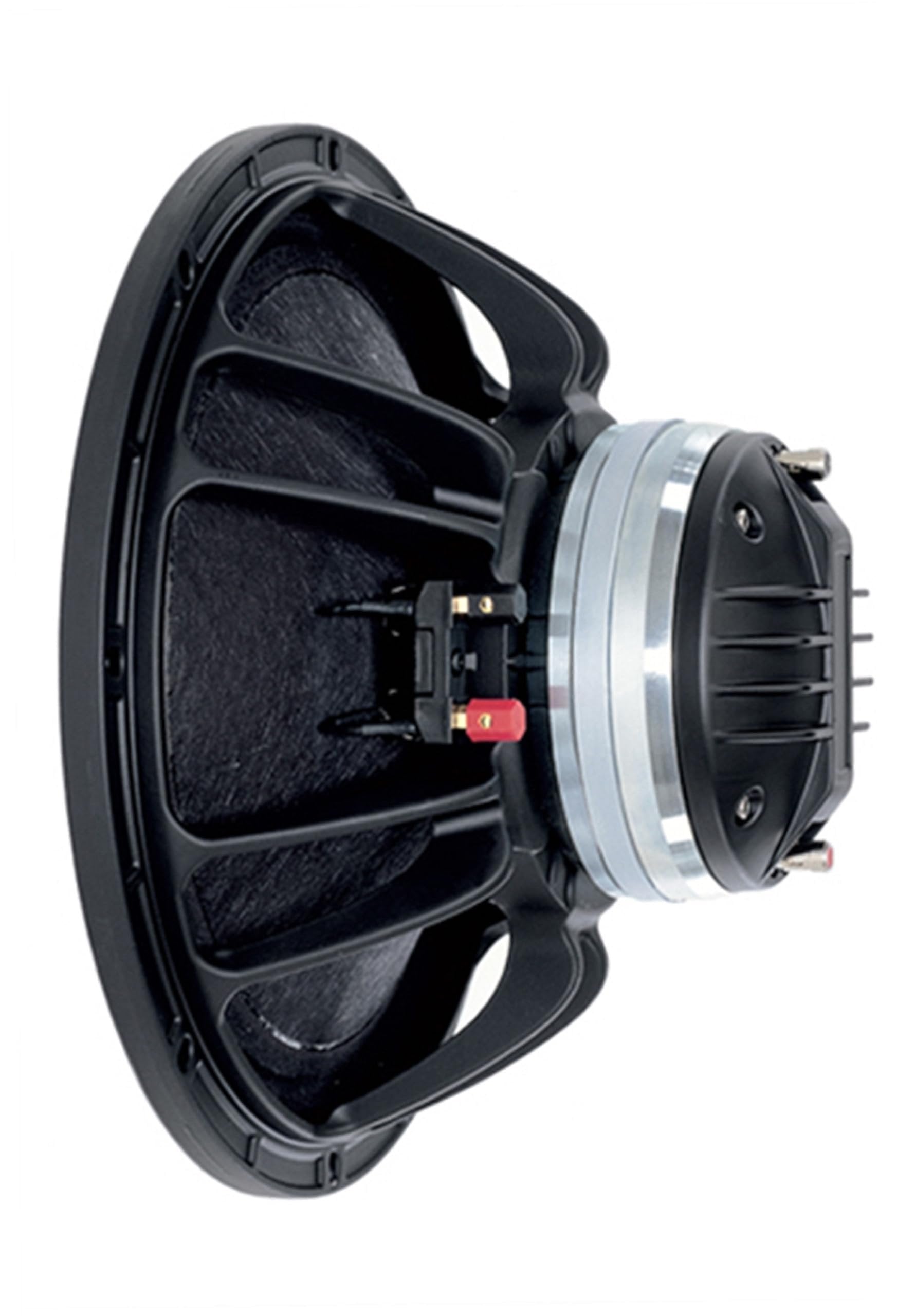

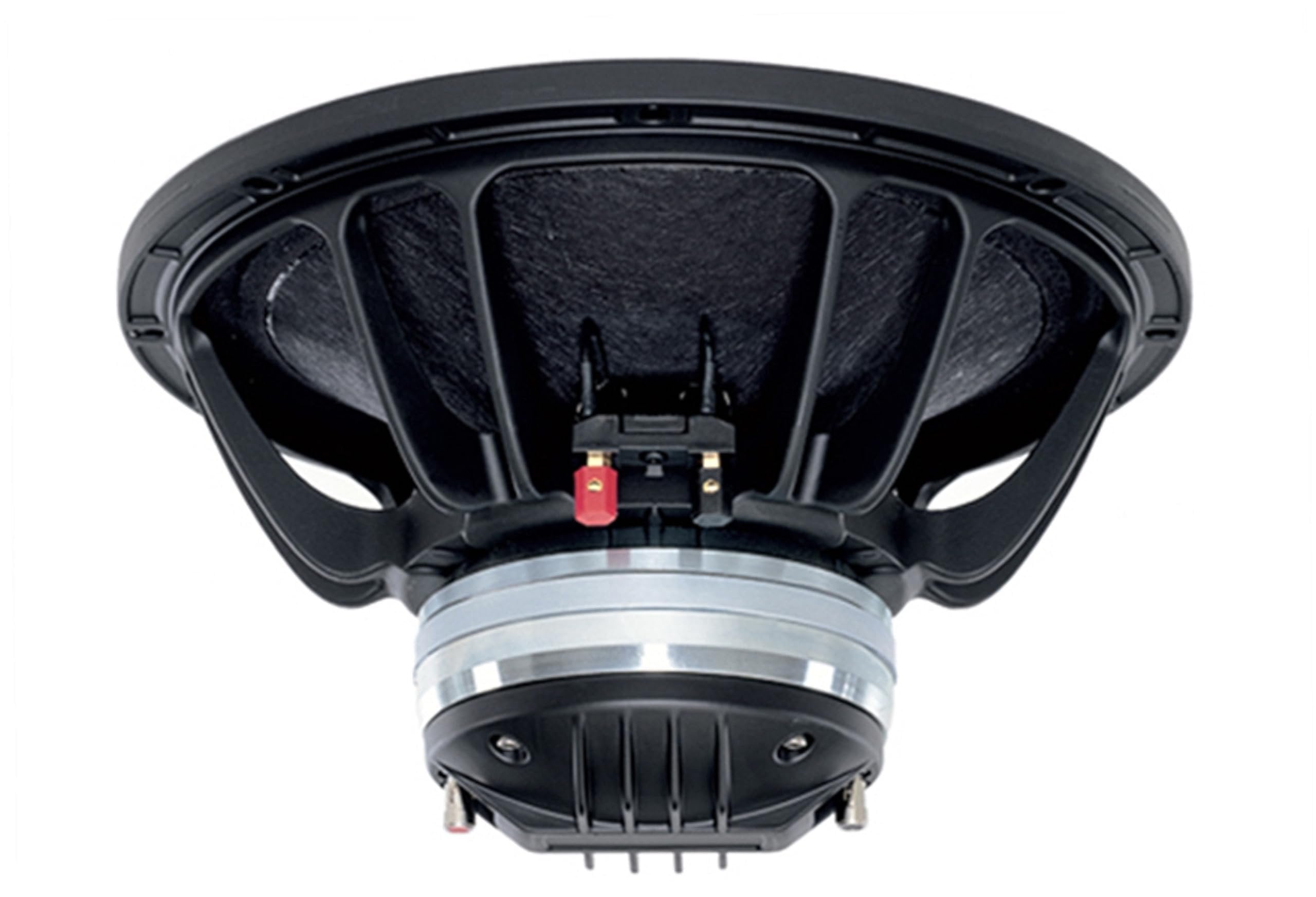

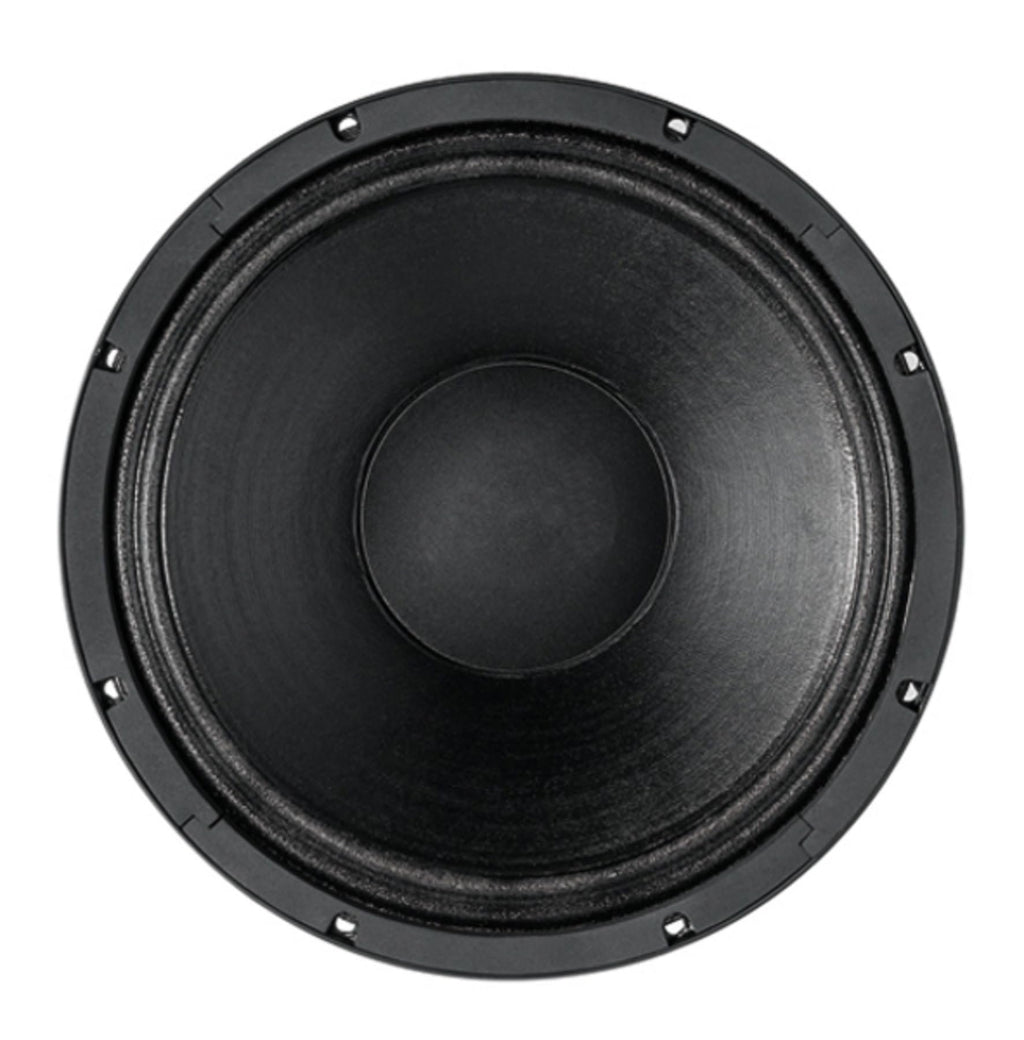

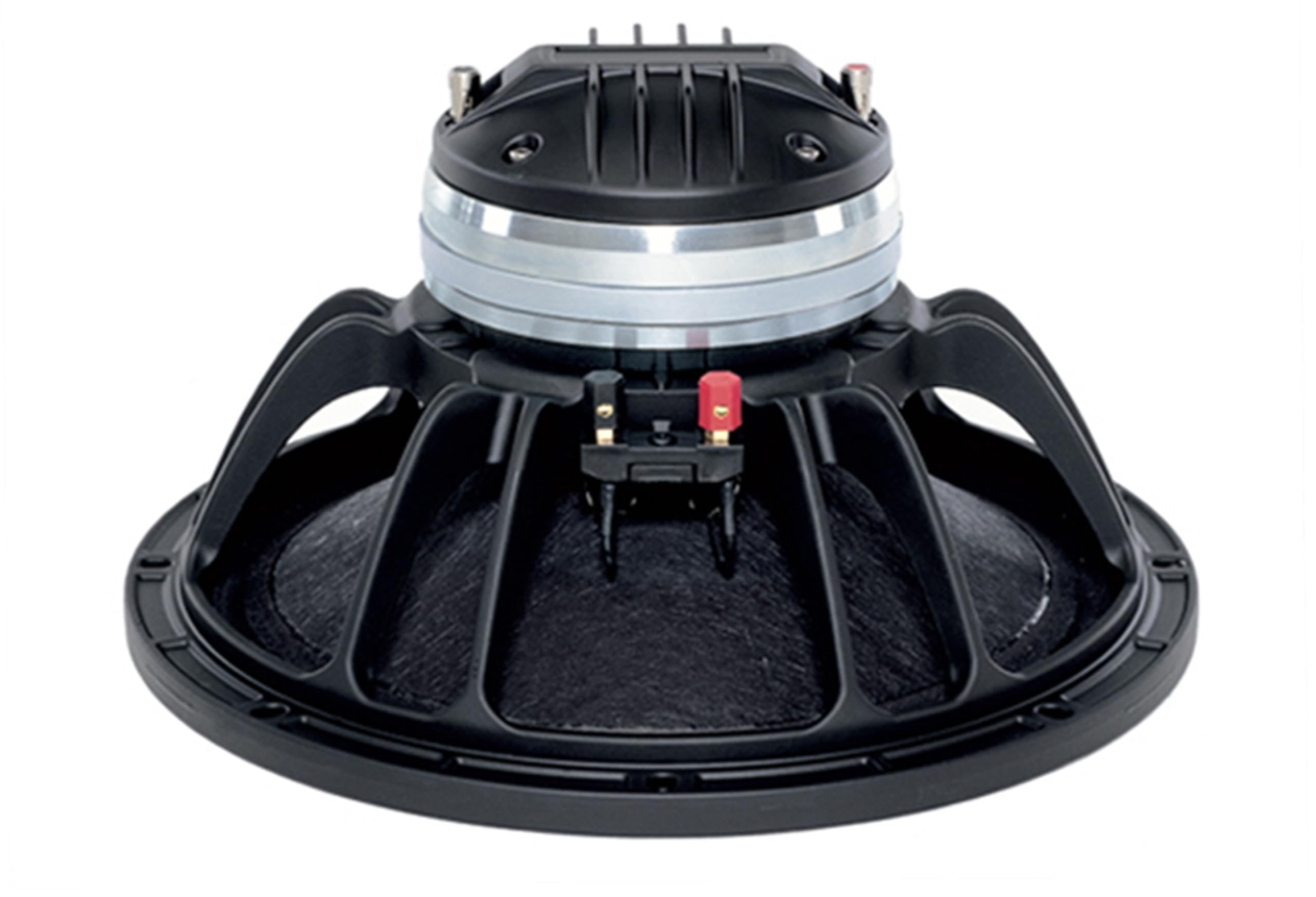

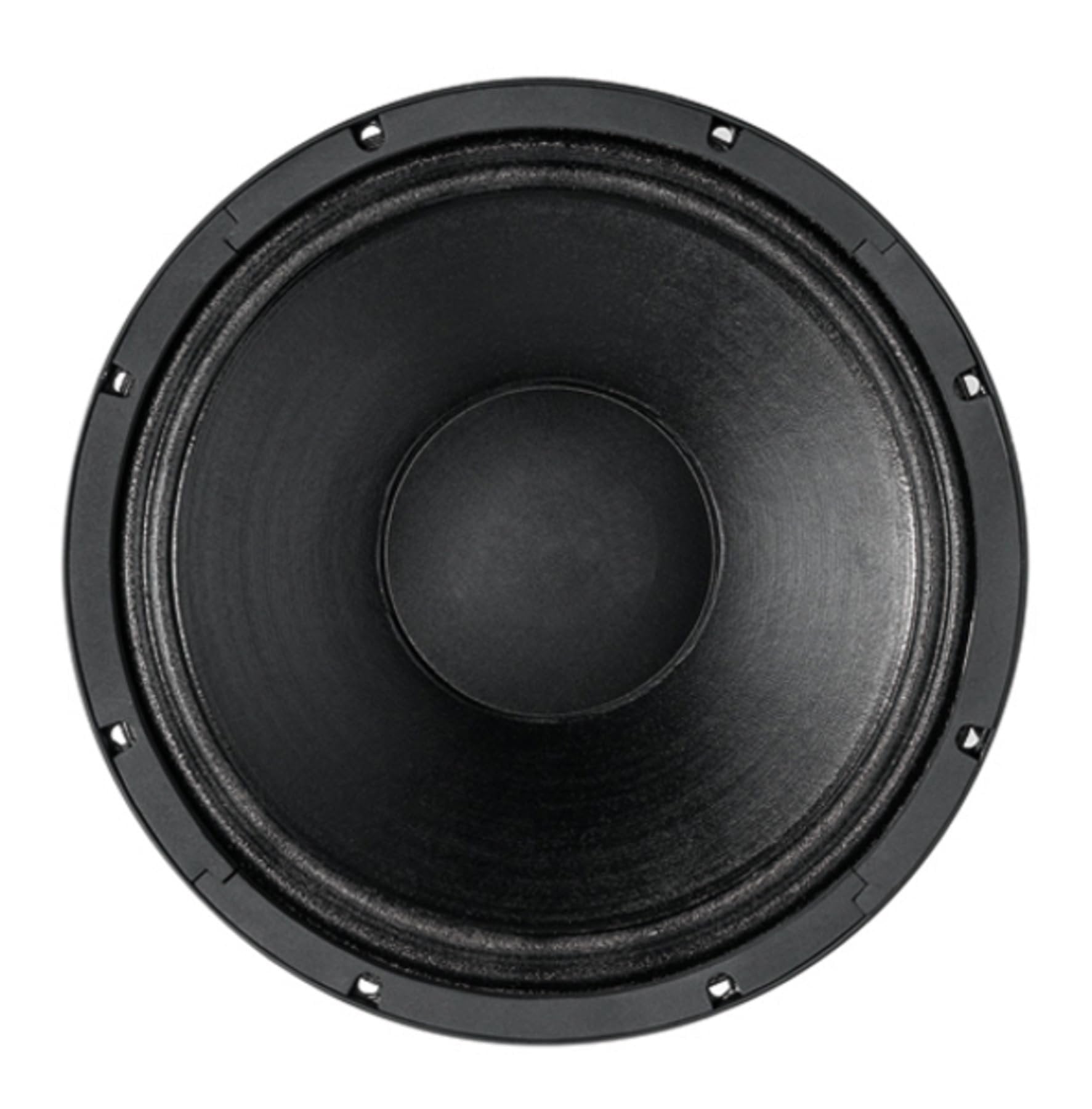

B&C Speakers 12CXN76-8 Studio Subwoofer 12-in High Power Woofer 8 Ohms with Mid High Performace 350 Watts Rms 700 Watts Max Pro Audio Component Speaker Driver for Motorcycle Car
700 W continuous program power capacity * 80 Degrees nominal coverage * 45 - 18000 Hz response * 99 dB sensitivity * Single Neodymium magnet assembly * Nominal diameter: 320 mm (12.0 in) * Nominal impedance: 8 Ohms * Minimum impedance lf: 6.5 Ohms * Minimum impedance hf: 8.0 Ohms * Frequency range: 45 - 18000 Hz * Dispersion angle: 80 Degrees * Magnet material: Neodymium Ring
SPECIFICATIONS LF Unit || LF Sensitivity: 99.0 dB * LF Nominal Power Handling: 350 Watts * LF Continuous Power Handling: 700 Watts * LF Voice Coil Diameter: 76 mm (3.0 in) * LF Winding Material: Copper
SPECIFICATIONS HF Unit || HF Sensitivity: 105.0 dB * HF Nominal Power Handling: 80 Watt * HF Continuous Power Handling: 160 Watt * HF Voice Coil Diameter: 75 mm (3.0 in) * HF Winding Material: Aluminium * Diaphragm material: Polyester/Titanium * Recommended crossover: 1.2 kHz
PARAMETERS || * Fs: 42 Hz * Re: 5.0 O * Qes: 0.2 * Qms: 8.0 * Qts: 0.19 * Vas: 120.0 dm3 (4.2 ft3) * Sd: 522.0 cm2 (80.9 in2) * 0: 4.1 % * Xmax: 4.0 mm * Xvar: 6.0 mm * Mms: 47 g * Bl: 17.6 Txm * Le: 0.8 mH * EBP: 210 Hz
MOUNTING AND SHIPPING INFO || Overall diameter: 315 mm (12.4 in) * Bolt circle diameter: 298 mm (11.7 in) * Baffle cutout diameter: 282 mm (11.1 in) * Depth: 170 mm (6.7 in) * Flange & gasket thickness: 14 mm (0.55 in) * Net weight: 5.0 kg (11.0 lb) * Shipping units: 1 * Shipping weight: 5.9 kg (13.0 lb) * Shipping box: 380x380x240 mm (15x15x9.4 in) * Service Kit * Service kit lf: RCK12CXN768 * Replacement diaphragm: MMD9028M
