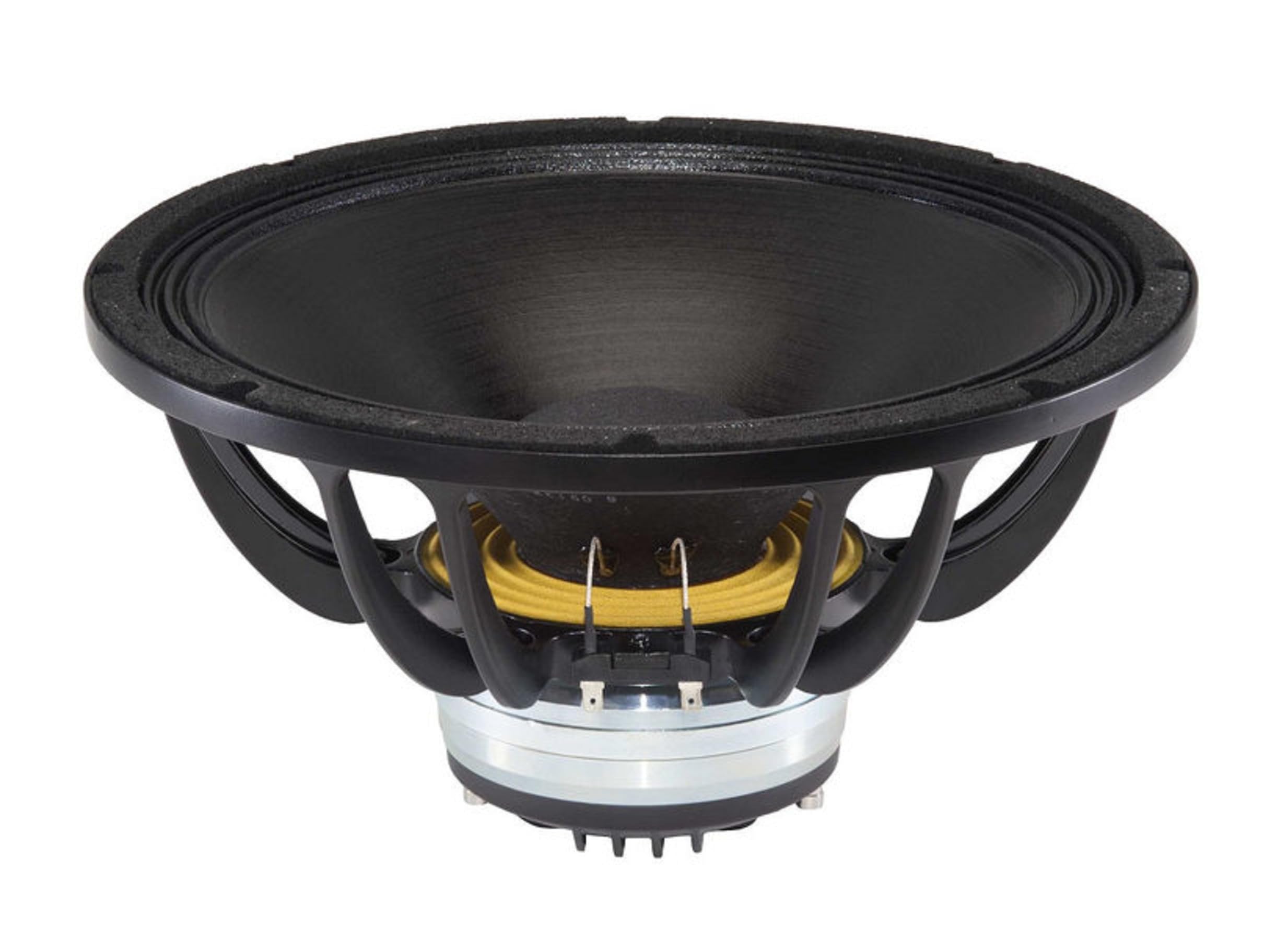

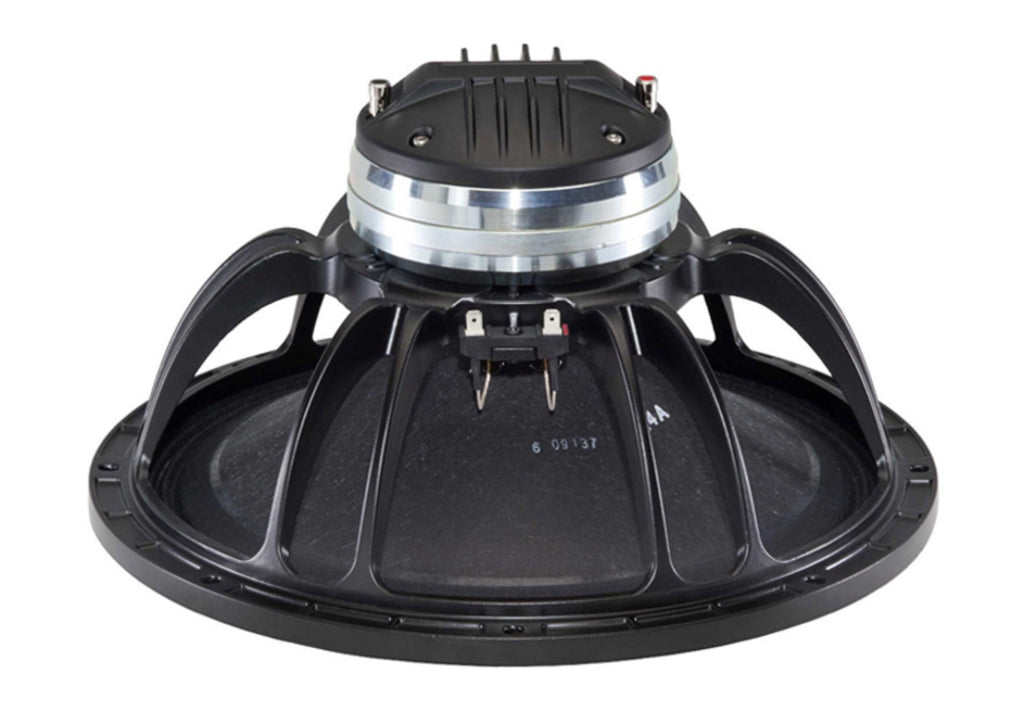

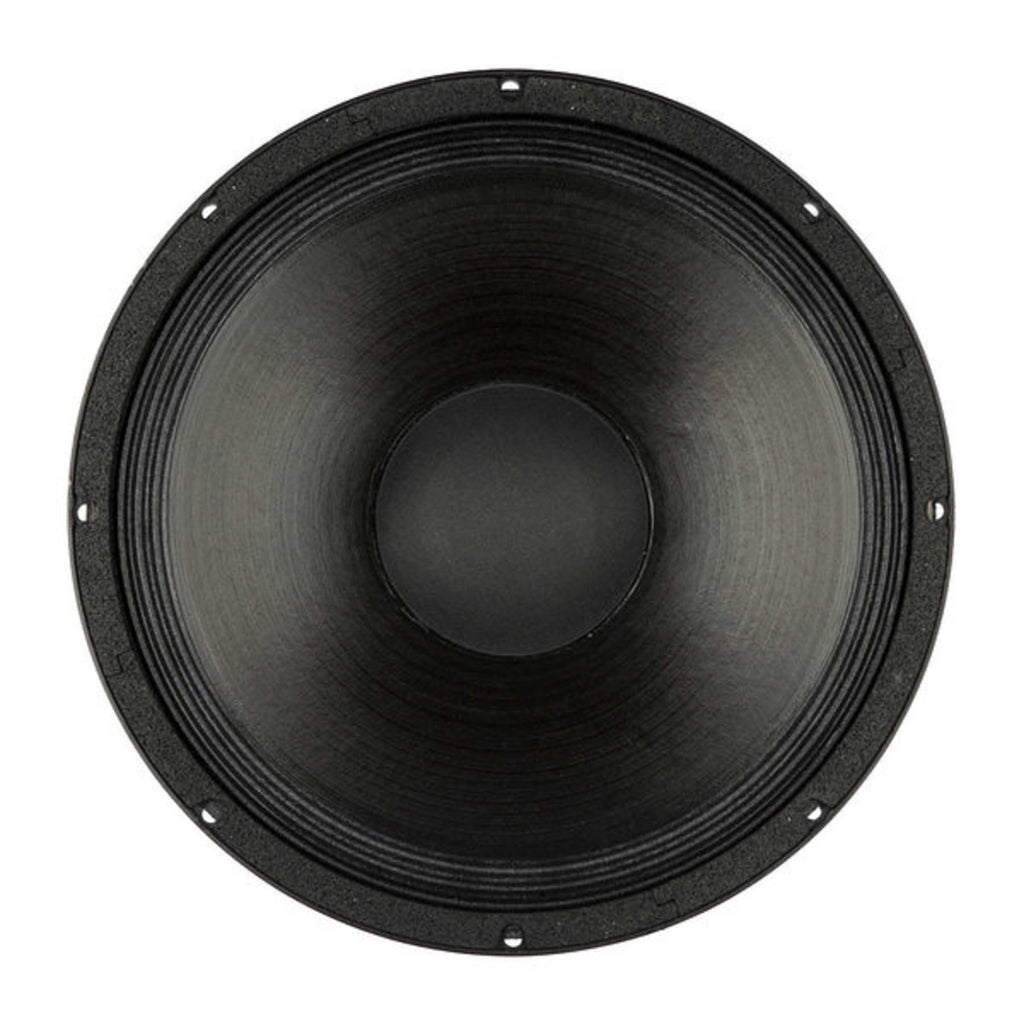

B&C Speakers 14CXN76-8 Coaxials 13.5 inch Dual Voice Coil Coaxial Full Range Speaker Polyester Titanium Diaphragm Material Neodymium Pro Audio Component Speaker Driver for Motorcycle Car"HIGHLIGHTS 800 W continuous program power capacity | 80° nominal coverage | 45 - 18000 Hz response | 100 dB sensitivity | Single Neodymium magnet assembly | Aluminium demodulating ring for very low distortion | ""SPECIFICATIONS Nominal Diameter : 343 mm (13.5 in) | Nominal Impedance : 8 Ω | Minimum Impedance LF : 6.5 Ω | Minimum Impedance HF : 8.2 Ω | Frequency Range : 45 - 18000 Hz | Dispersion Angle1 : 80 ° | Woofer Cone Treatment : WP Waterproof Front Side | Magnet Material : Neodymium Ring | ""SPECIFICATIONS LF UNIT LF Sensitivity2 : 100.0 dB | LF Nominal Power Handling3 : 400 W | LF Continuous Power Handling4 : 800 W | LF Voice Coil Diameter : 76 mm (3.0 in) | LF Winding Material : Copper | LF Flux Density : 1.05 T | Former Material : Glass Fibre | Winding Depth : 16.5 mm (0.65 in) | Magnetic Gap Depth : 9.0 mm (0.35 in) | ""SPECIFICATIONS HF UNIT HF Sensitivity5 : 105.0 dB | HF Nominal Power Handling6 : 80 W | HF Continuous Power Handling7 : 160 W | HF Voice Coil Diameter : 75 mm (3.0 in) | HF Winding Material : Aluminium | HF Flux Density : 1.8 T | Diaphragm Material : Polyester/Titanium | Recommended Crossover8 : 1.2 kHz | Inductance : 0.14 mH | "MOUNTING AND SHIPPING INFO : | Overall Diameter : 359 mm (14.13 in) | Bolt Circle Diameter : 343 mm (13.5 in) | Baffle Cutout Diameter : 323 mm (12.72 in) | Depth : 188 mm (7.4 in) | Flange and Gasket Thickness : 12 mm (0.47 in) | Net Weight : 5.6 kg (12.35 lb) | Shipping Units : 1 | Shipping Weight : 6.9 kg (15.21 lb) | Shipping Box : 425x425x224 mm (16.73x16.73x8.82 in) |
