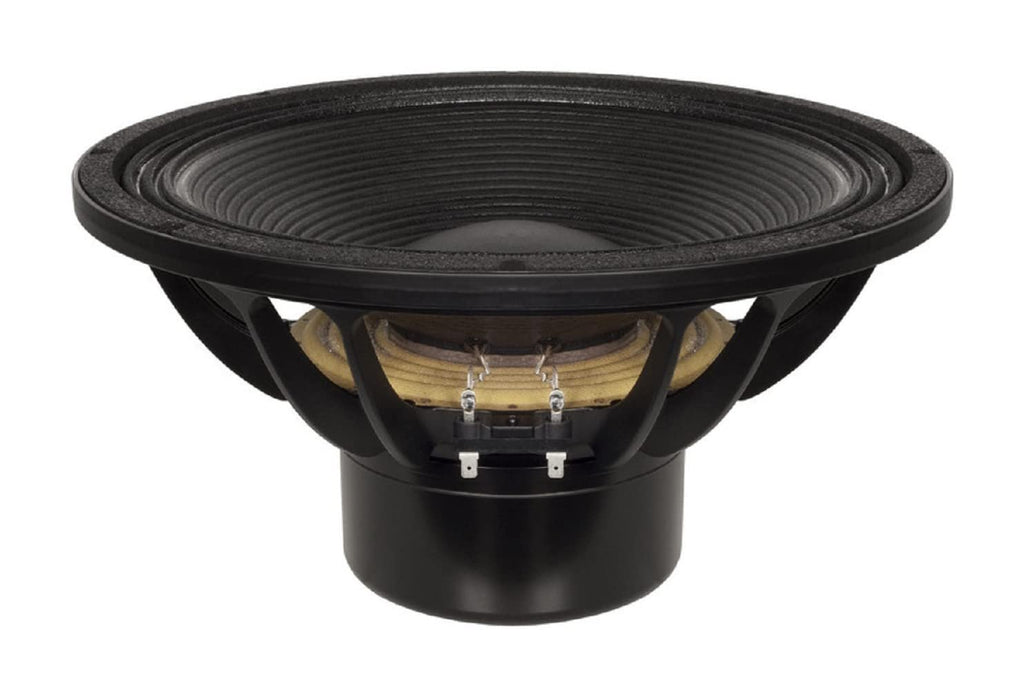

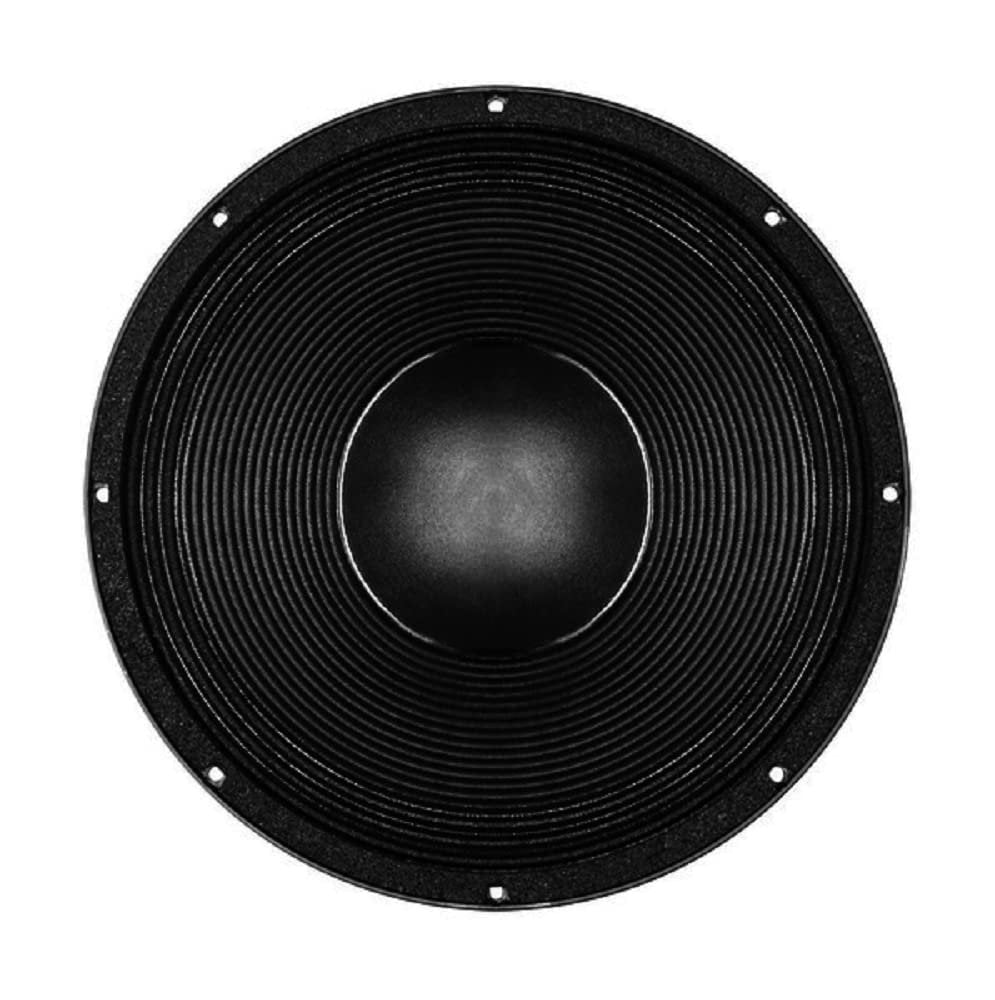

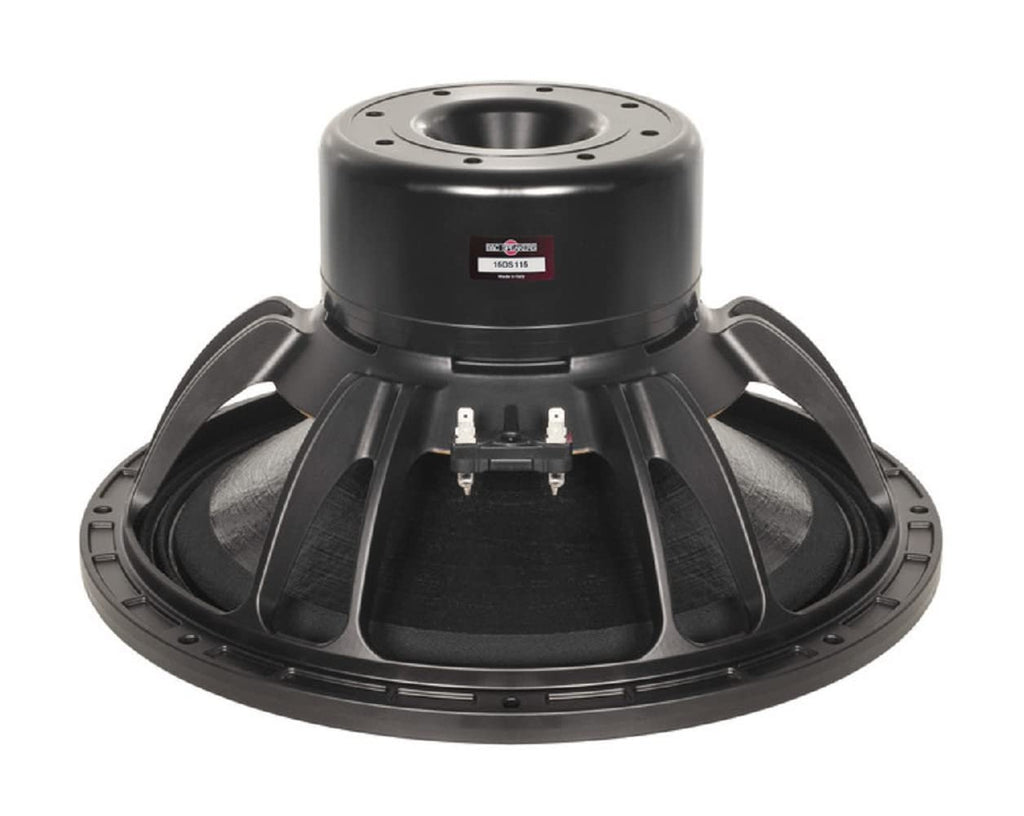

B & C Speakers 15DS115-8 LF Drivers 15 Inch Super Bass Woofer 8 Ohm Neodymium Inside Slug Magnet 3200 Watts Continous Power Handling 116-mm Four Layer Aluminum Voice Coil
This next evolution subwoofer uses a new, longer, four layer aluminum voice coil. The result is more energy in the gap, less heat, higher sensitivity, higher power handling, lower distortion and better overall performance. The 15DS115 features a 40mm long, 4.5 inch diameter (116mm) Copper Clad Aluminum Wire voice coil. With a 1600watt AES power rating, 97 dB sensitivity, and over 14 mm of Xvar, this high energy subwoofer is a significant step forward from similar models in the B&C range.
3200 W continuous program power capacity || 116 mm (4.5 in) four layer aluminum voice coil || 35 - 1000 Hz response || 97 dB sensitivity || 60 mm peak-to-peak excursion before damage || Neodymium magnet allows a very high force factor and linear excursion || Double silicone spider with optimized compliance || Ventilated voice coil gap for reduced power compression || Aluminium demodulating ring for very low distortion
SPECIFICATIONS || Nominal Diameter :: 380 mm (15.0 in) || Nominal Impedance :: 8 Ω || Minimum Impedance :: 7.2 Ω || Nominal Power Handling 1 :: 1600 W || Continuous power handling 2 :: 3200 W || Sensitivity (1W/1m) 3 :: 97.0 dB || Frequency Range :: 35 - 1000 Hz || Voice Coil Diameter :: 116 mm (4.5 in) || Winding Material :: Aluminium || Former Material :: Glass Fibre || Winding Depth :: 40.0 mm (1.57 in) || Magnetic Gap Depth :: 14.0 mm (0.55 in) || Flux Density :: 0.8 T
DESIGN || Surround Shape :: Triple Roll || Cone Shape :: Radial || Magnet Material :: Neodymium Inside Slug || Spider :: Double Silicone || Pole Design :: T-Pole || Woofer Cone Treatment :: TWP Waterproof Both Sides || Recommended Enclosure :: 80.0 dm3 (2.83 ft3) || Recommended Tuning :: 40 Hz
PARAMETERS || Resonance Frequency :: 33 Hz || Re :: 4.9 Ω || Qes :: 0.18 || Qms :: 5.2 || Qts :: 0.17 || Vas :: 94.0 dm3 (3.32 ft3) || Sd :: 855.0 cm2 (132.53 in2) || η₀ :: 1.9 % || Xmax :: ± 16.5 mm || Xvar :: ± 14.0 mm || Mms :: 254.0 g || Bl :: 38.7 Txm || Le :: 4.5 mH || EBP :: 183 Hz
