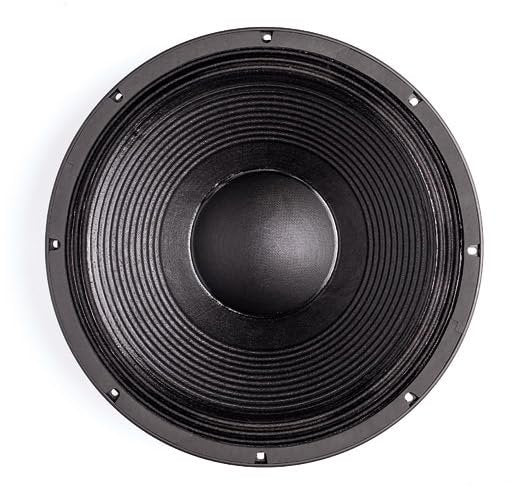

B & C Speakers 15PS100-8 15-Inch Mid Bass Woofer LF Drivers 700 Wrms 1400 Watts Pro Audio Component Speaker Driver for Motorcycle Car 8 Ohm

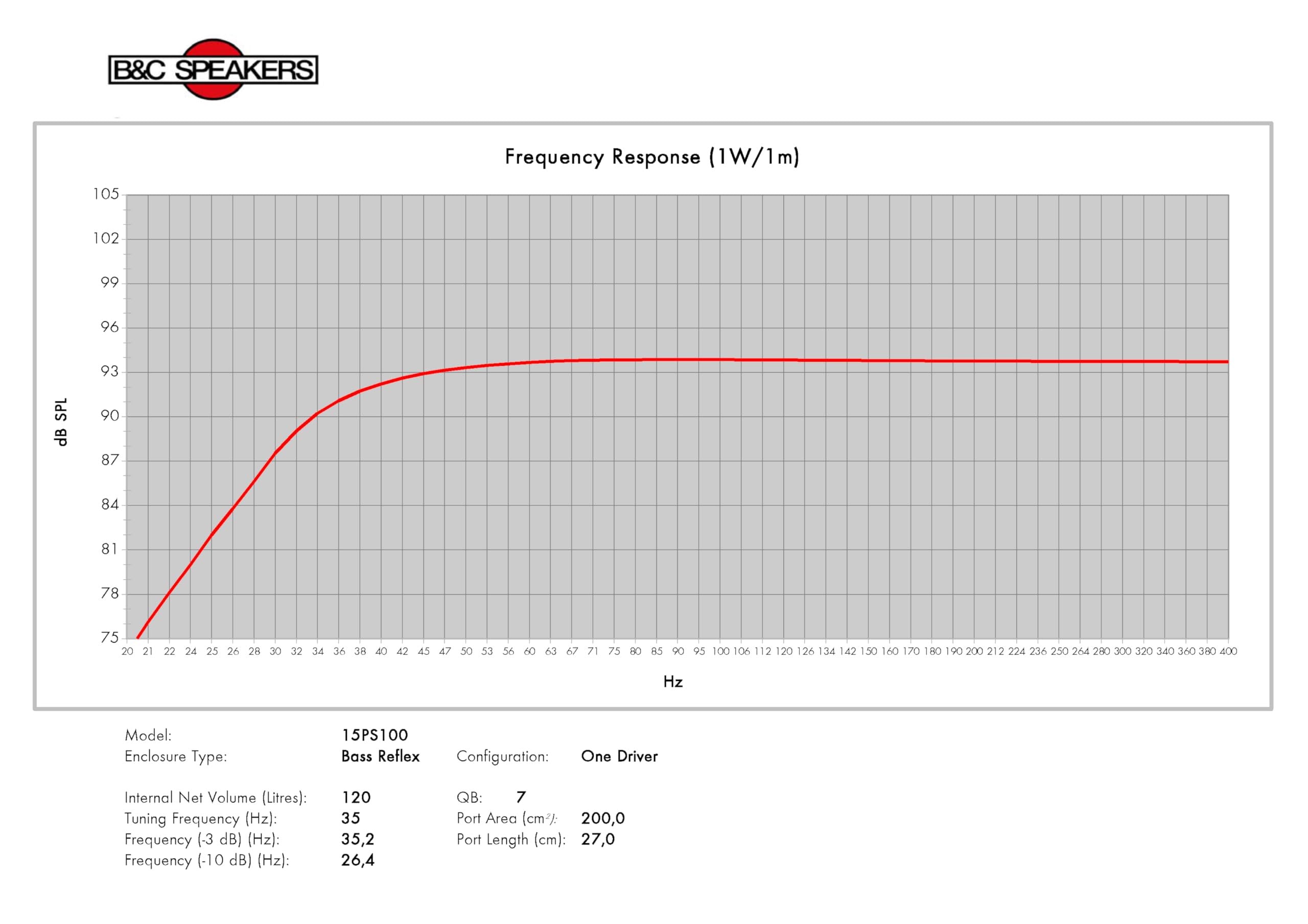

This speaker driver delivers a robust 1400-watt continuous program power capacity and features a 100 mm (4-inch) copper voice coil for efficient performance. It offers a wide frequency response range of 35 to 1500 Hz with a sensitivity of 95 dB, ensuring clear and powerful low-frequency output. The design includes a double silicone spider, providing optimized compliance for enhanced stability and durability during high-excursion operation.
Speaker driver is built for reliable performance, 8-ohm nominal impedance and a minimum impedance of 6.5 ohms. It handles 700 watts nominally and up to 1400 watts continuously, with a sensitivity of 95 dB and a frequency range of 35 to 1500 Hz. The 4-inch copper voice coil is wound on a durable glass fibre former, offering a winding depth of 0.83 inches and a magnetic gap depth of 0.4 inches. A flux density of 1.05 Tesla ensures efficient magnetic control for clear & powerful sound output.

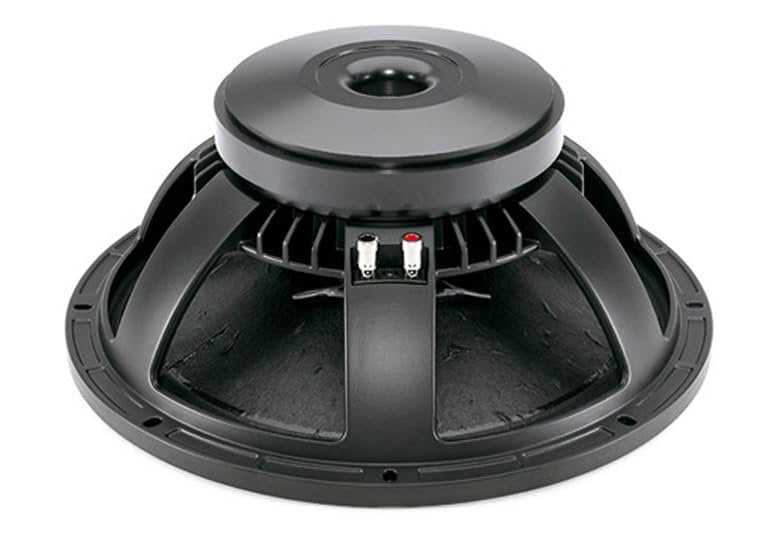

This speaker driver features a triple roll surround and radial cone shape, built with a ferrite magnet and T-pole design for stable magnetic performance. It includes a double silicone spider for enhanced compliance and a TWP-treated cone that is waterproof on both sides. The recommended enclosure volume is 120.0 dm³ (4.24 ft³), tuned to 35 Hz for optimal bass response.
This speaker driver is optimized for bass clarity and efficiency, featuring a 39 Hz resonance frequency, 855 cm² piston area, and 5.2-ohm DC resistance. With a Qts of 0.43 and an EBP of 82 Hz, it's well-suited for vented enclosures. It offers ±8.0 mm peak excursion, a 160 g moving mass, and a strong motor force of 21.2 Txm, supported by a 2.0 mH inductance and 1.35% sensitivity for reliable low-frequency performance.

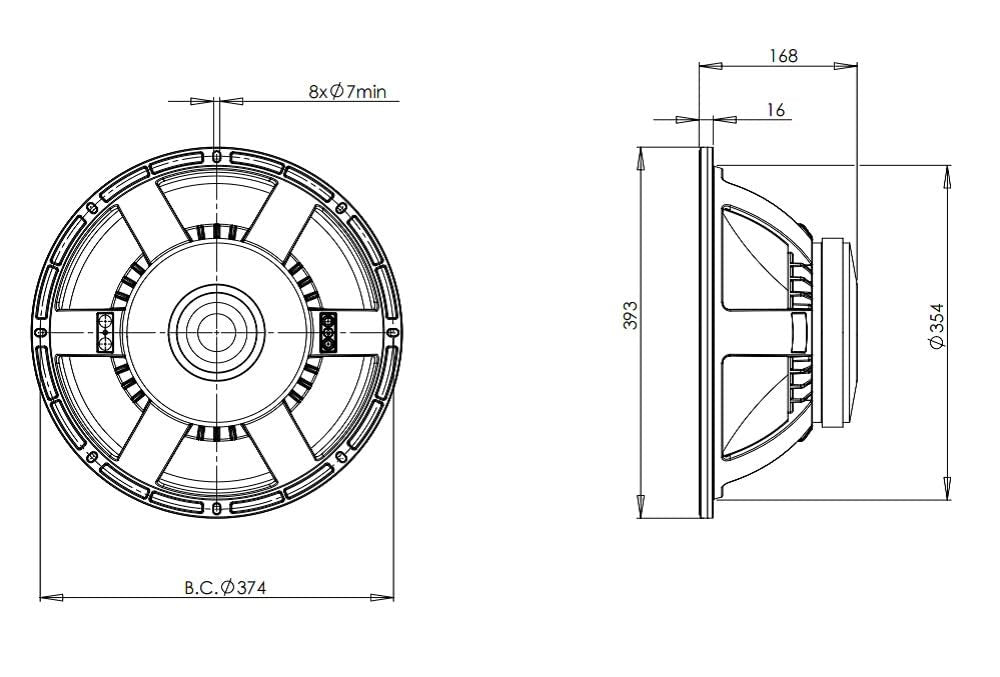

This speaker driver is designed for secure and efficient installation, featuring a 15.5-inch overall diameter, a 14.72-inch bolt circle, and a 13.9-inch baffle cutout. It has a depth of 6.6 inches and a flange and gasket thickness of 0.63 inches. The unit occupies 0.22 cubic feet of air volume and weighs 21.6 pounds. It ships in a compact 16.73 × 16.73 × 8.82 inch box with a total shipping weight of 24.47 pounds.
