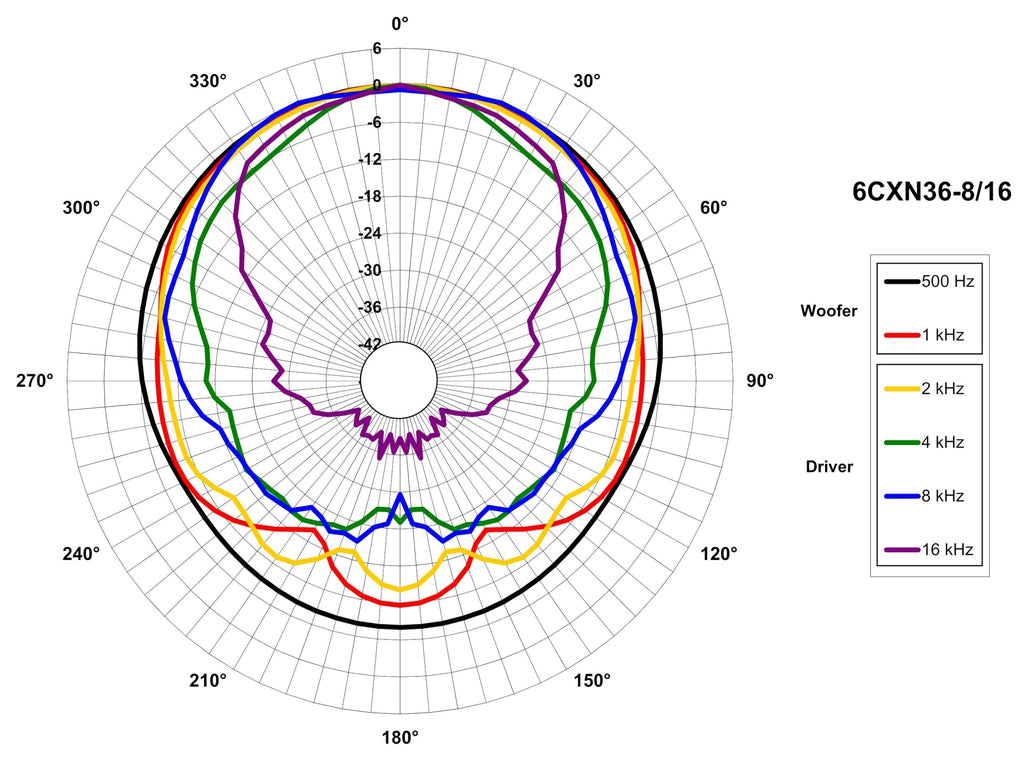

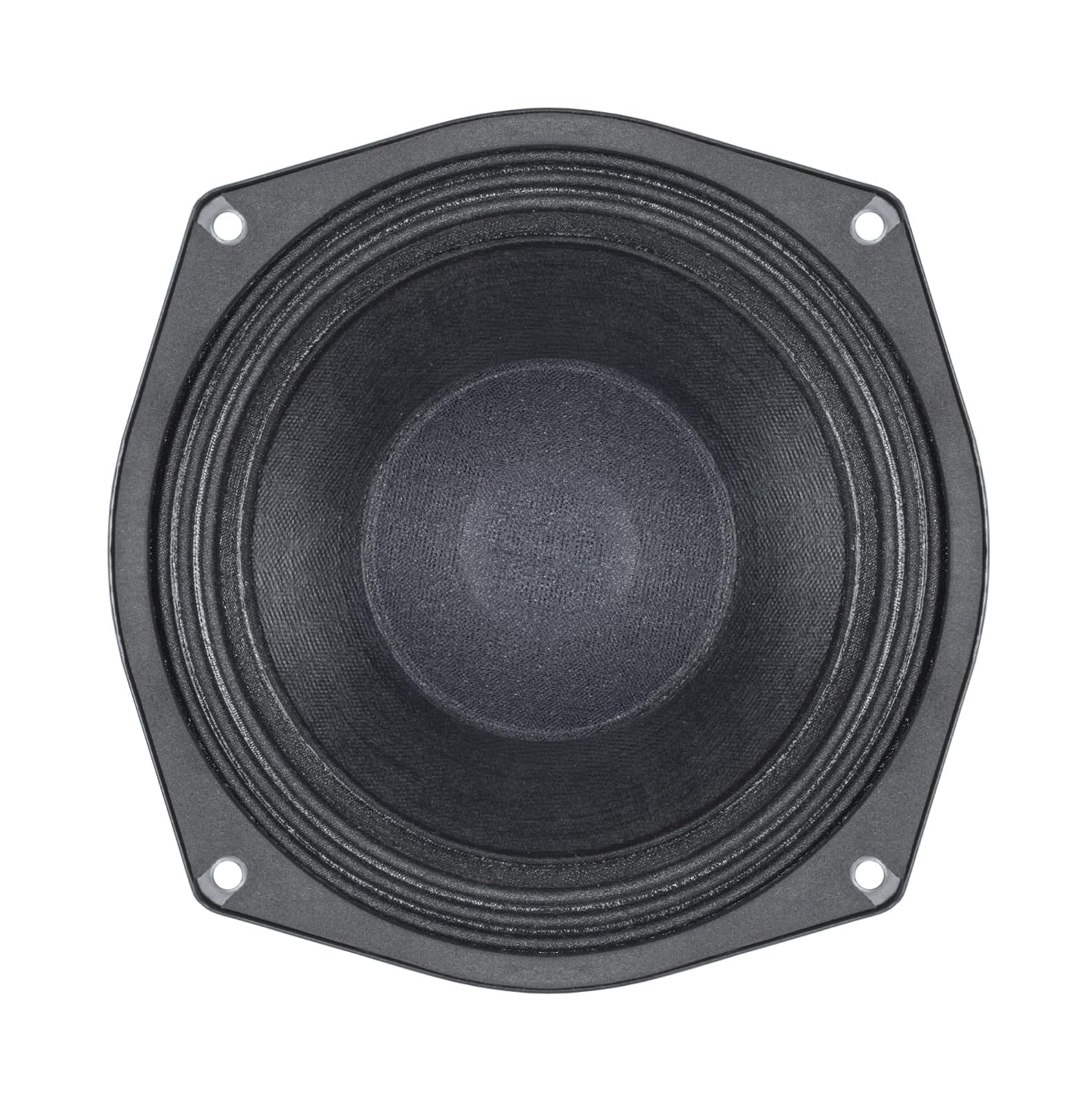

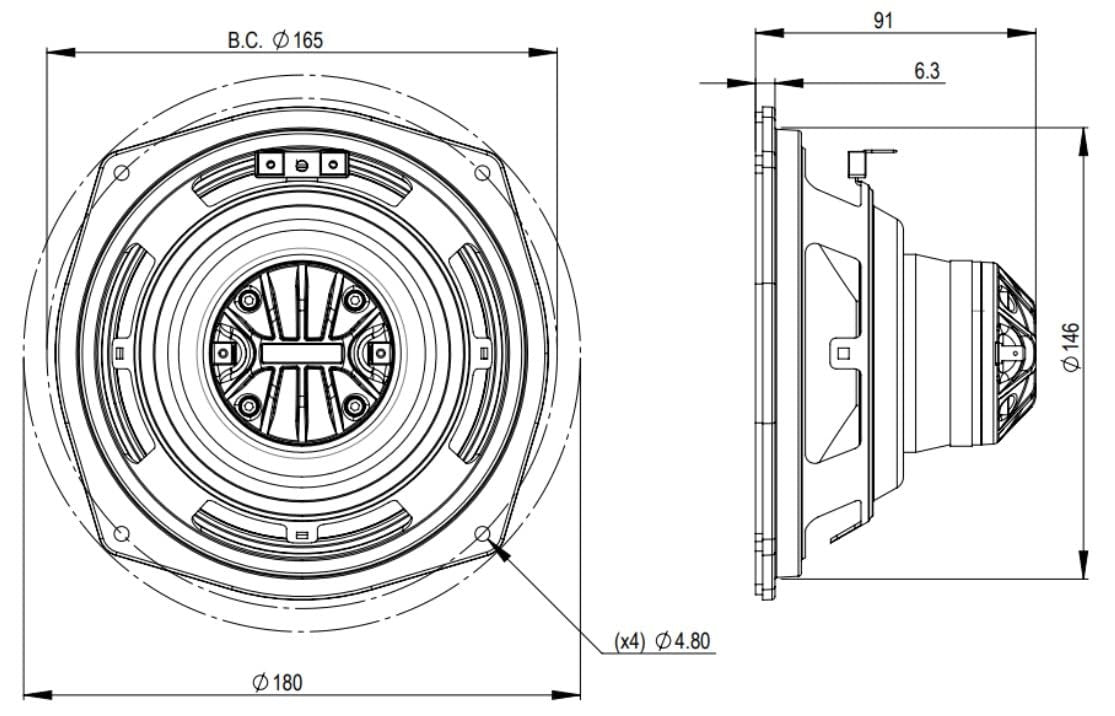

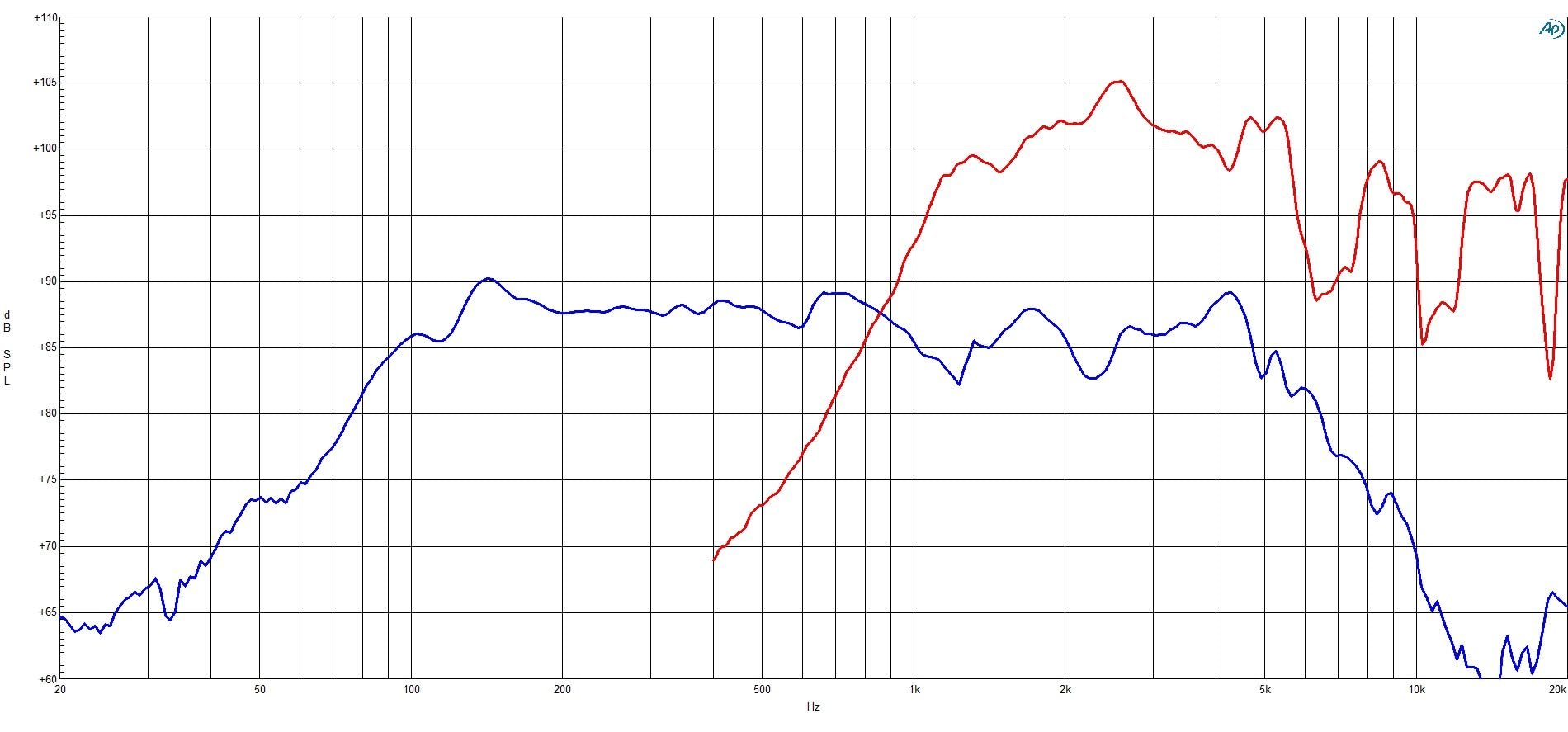

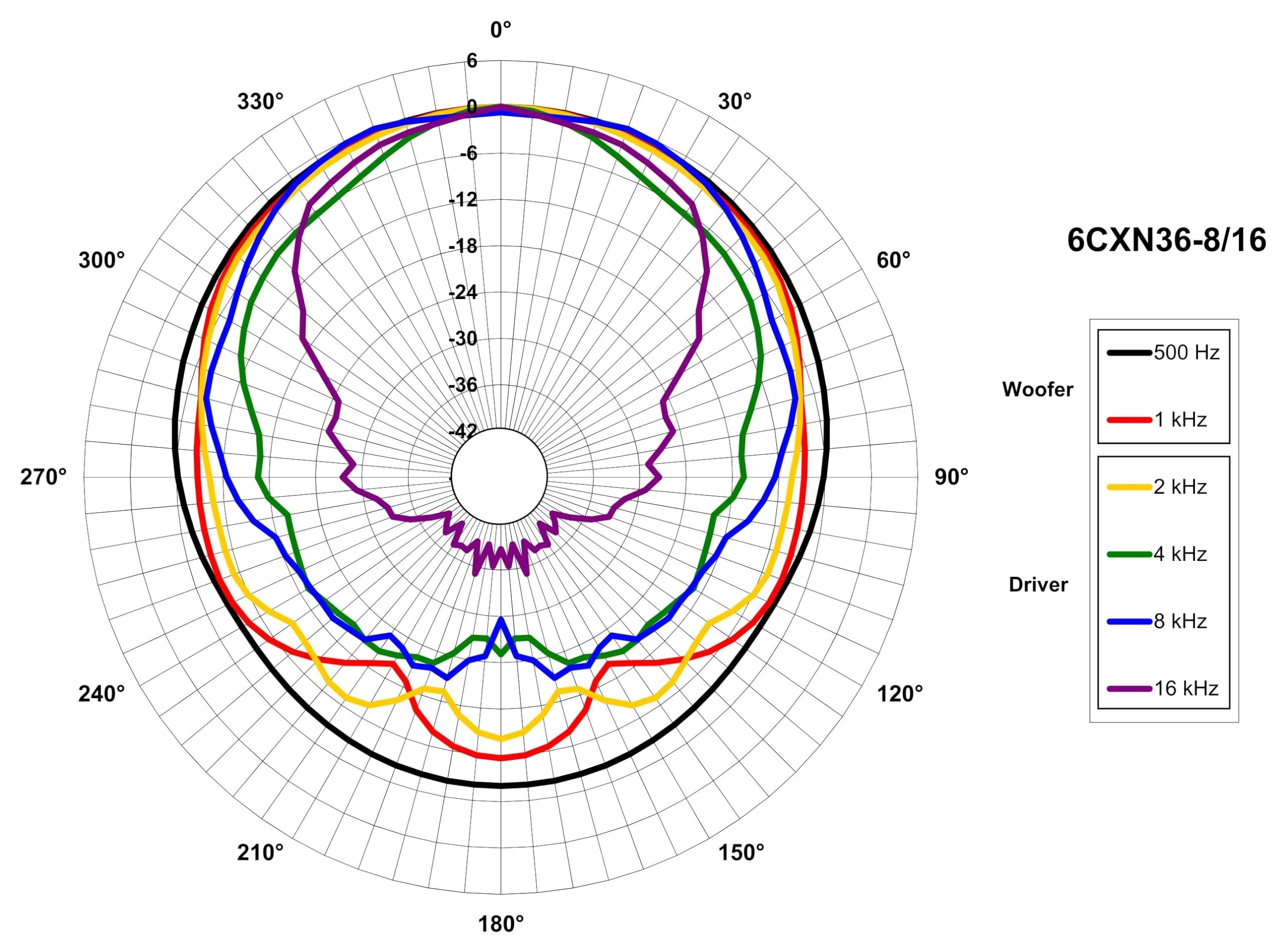

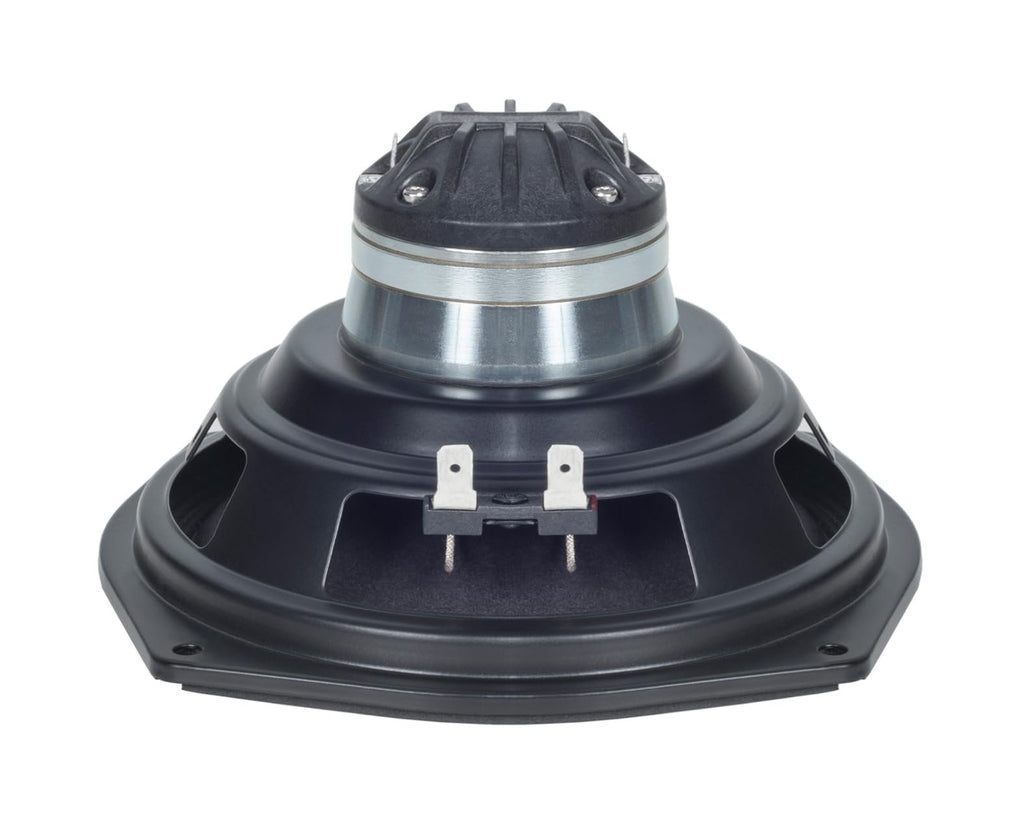

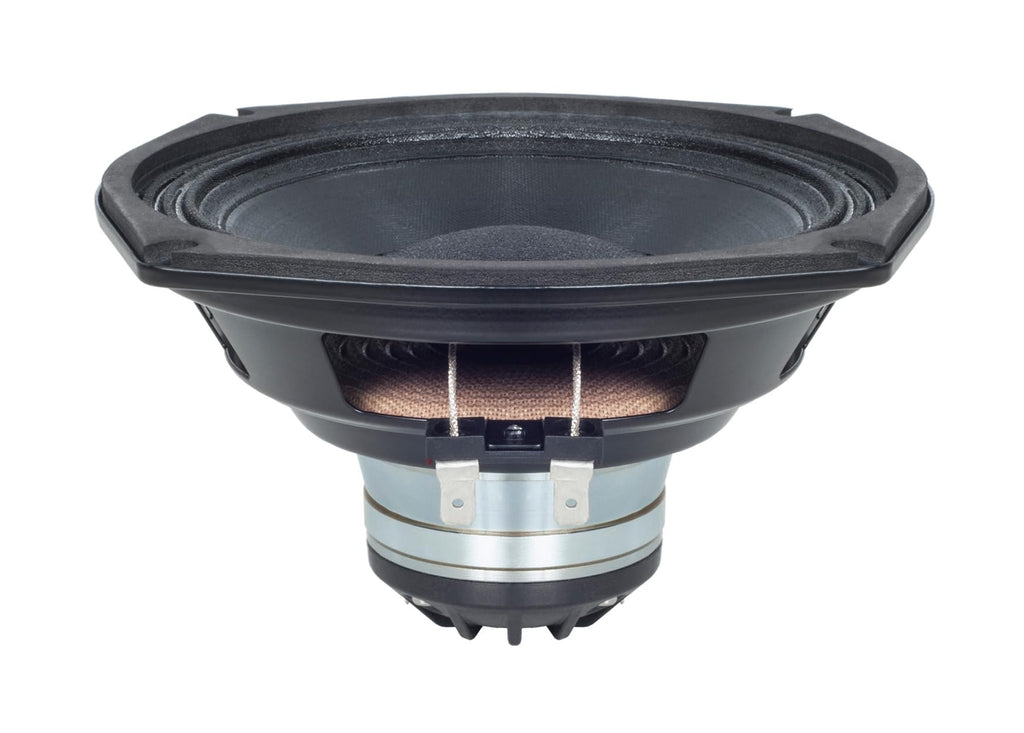

B&C Speakers 6CXN36-8 6.5-inch Neo Coaxial Driver 100 Watts Rms 200 Watts Peak 8 Ohms Motorcycle Car Pro Audio Sound Speaker Waterproof Front Side - ALT006CXN368"GENERAL || Brand : B&C Speakers || Model Number : 6CXN36-8 | 6CXN36 | ALT006CXN368/16 || UPC : 8050593401311 | 728990193976 || Nominal Diameter : 165 mm (6.5 in) || Frequency Range : 90 - 18000 Hz response || Nominal Impedance : 8 Ω || Dispersion Angle : 90° nominal coverage || FEATURES || 8 ohm LF unit, 16 ohm HF unit || 200 W continuous program power capacity || 90 dB sensitivity || Aluminium demodulating ring for very low distortion ||"SPECIFICATIONS LF UNIT || Sensitivity : 90 dB || Continuous Power Handling : 200 W || Winding Material : Copper || Nominal Diameter : 165 mm (6.5 in) || Minimum Impedance : 6.8 Ω || Winding Depth : 11 mm (0.43 in) || Woofer Cone Treatment : WP Waterproof Front Side || Nominal Power Handling : 100 W || Voice Coil Diameter : 34 mm (1.3 in) || Flux Density : 0.74 T || Nominal Impedance : 8 Ω || Former Material : Glass Fibre || Magnetic Gap Depth : 6 mm (0.24 in) ||"SPECIFICATIONS HF UNIT || Sensitivity : 100 dB || Continuous Power Handling : 50 W || Winding Material : Aluminium || Nominal Diameter : 165 mm (6.5 in) || Minimum Impedance : 10.2 Ω || Inductance : 0.14 mH || Magnet Material : Neodymium Ring || Nominal Power Handling : 25 W || Voice Coil Diameter : 36 mm (1.4 in) || Flux Density : 1.65 T || Nominal Impedance : 8 Ω || Recommended Crossover : 2 kHz || Diaphragm Material : HT Polymer ||"DESIGN || Magnet Material : Neodymium Ring || Woofer Cone Treatment : WP Waterproof Front Side || PARAMETERS || Fs : 90 Hz || Qes : 1.17 || Qts : 0.95 || Sd : 132 cm² (20.46 sq²) || Xvar : 5 mm || Bl : 5.34 Tm || EBP : 77 Hz || Re : 5.8 Ω || Qms : 5 || Vas : 7.5 dm³ (0.26 ft³) || η0 : 0.45 % || Mms : 10.2 g || Le : 0.94 mH ||"MOUNTING AND SHIPPING INFO || Overall Diameter : 180 mm (7.09 in) || Baffle Cutout Diameter : 146 mm (5.75 in) || Flange and Gasket Thickness : 6 mm (0.25 in) || Shipping Units : 1 pcs || Shipping Box : 255x255x150 mm (10.04x10.04x5.91 in) || Bolt Circle Diameter : 165 mm (6.5 in) || Depth : 91 mm (3.58 in) || Net Weight : 0.7 kg (1.54 lb) || Shipping Weight : 1.15 kg (2.54 lb) ||
