B&C Speakers 6FHX51-8 Coaxials 6.5 inches Coax Neo Mid Bass 8 Ohm 150 Watt RMS / 300 Watt Max Pro Audio Component Speaker Driver for Motorcycle Car

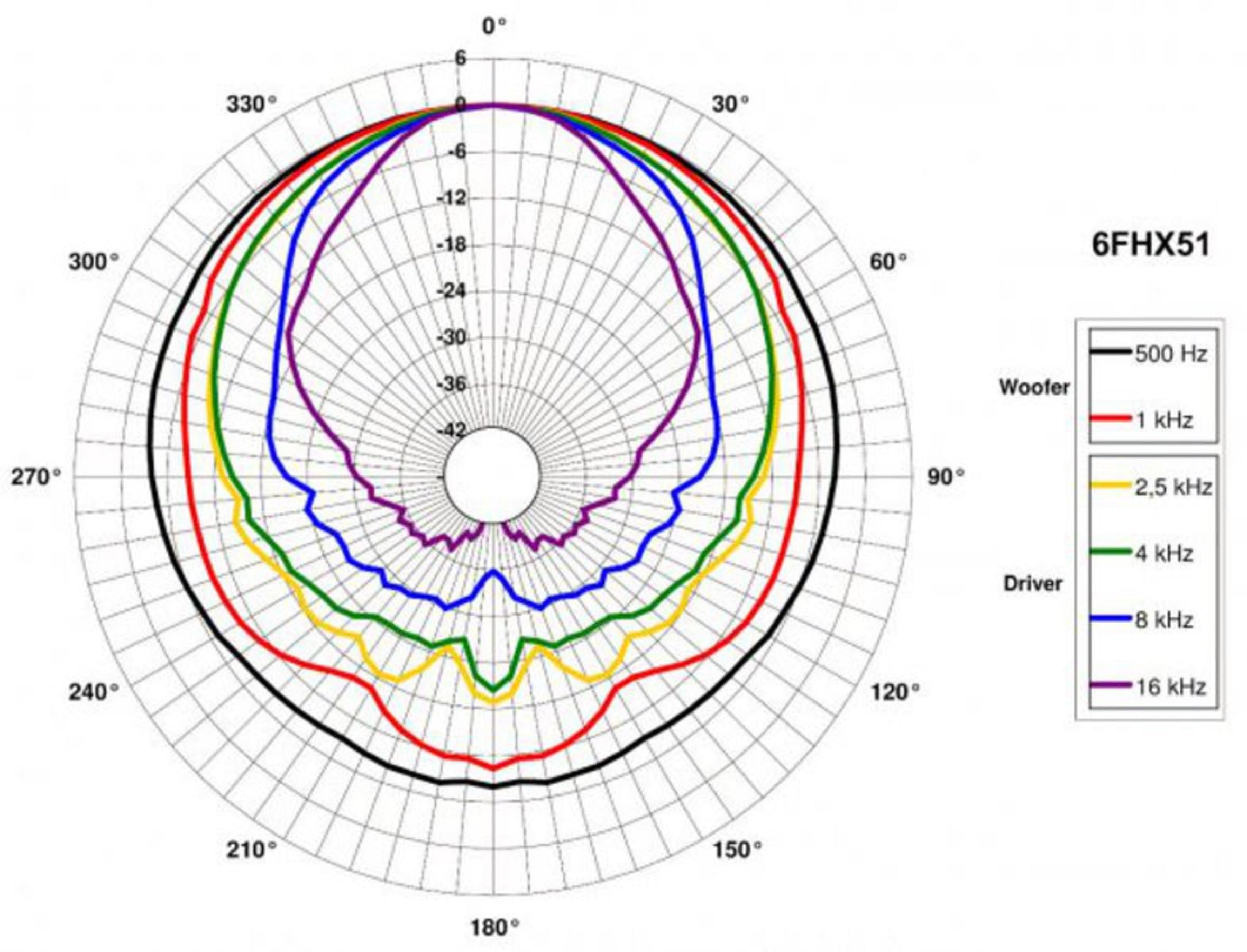

HIGHLIGHTS | 300 W continuous program power capacity | 70° nominal coverage | 85 - 18000 Hz response | 93 dB sensitivity | 20.1 mm (0.79”) HF unit exit diameter"
SPECIFICATIONS : | Nominal Diameter : 170 mm (6.5 in) | Nominal Impedance : 8 Ω | Minimum Impedance LF : 6.5 Ω | Minimum Impedance HF : 7.0 Ω | Frequency Range : 85 - 18000 Hz | Dispersion Angle1 : 70 ° | Woofer Cone Treatment : WP Waterproof Front Side | Magnet Material : Ferrite (LF) - Neodym. Ring (HF) | "
SPECIFICATIONS LF UNIT : | LF Sensitivity2 : 93.0 dB | LF Nominal Power Handling3 : 150 W | LF Continuous Power Handling4 : 300 W | LF Voice Coil Diameter : 51 mm (2.0 in) | LF Winding Material : Copper | LF Flux Density : 1.05 T | Former Material : Kapton | Winding Depth : 13.0 mm (0.51 in) | Magnetic Gap Depth : 6.0 mm (0.24 in) | "
SPECIFICATIONS HF UNIT : | HF Sensitivity5 : 108.5 dB | HF Nominal Power Handling6 : 10 W | HF Continuous Power Handling7 : 20 W | HF Voice Coil Diameter : 25 mm (1.0 in) | HF Winding Material : Aluminium | HF Flux Density : 1.65 T | Diaphragm Material : Polyester | Recommended Crossover8 : 2.5 kHz | Inductance : 0.1 mH | "
"MOUNTING AND SHIPPING INFO || Overall Diameter : 187 mm (7.4 in) | Bolt Circle Diameter : 172 mm (6.7 in) | Baffle Cutout Diameter : 146 mm (5.75 in) | Depth : 122 mm (4.8 in) | Flange and Gasket Thickness : 12 mm (0.47 in) | Air Volume Occupied by Driver : 2.7 kg (5.9 lb) | Net Weight : 1 | Shipping Units : 3.15 kg (6.94 lb) | Shipping Weight : 255x255x150 mm (10.04x10.04x5.91 in) | "
