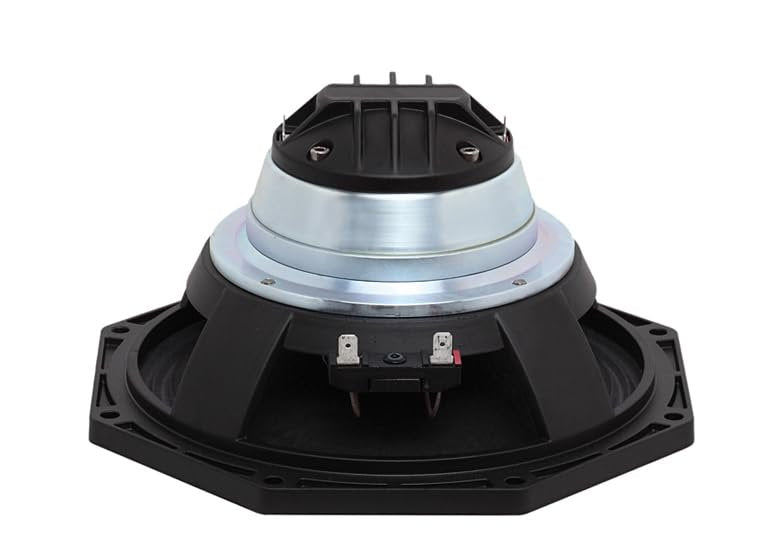

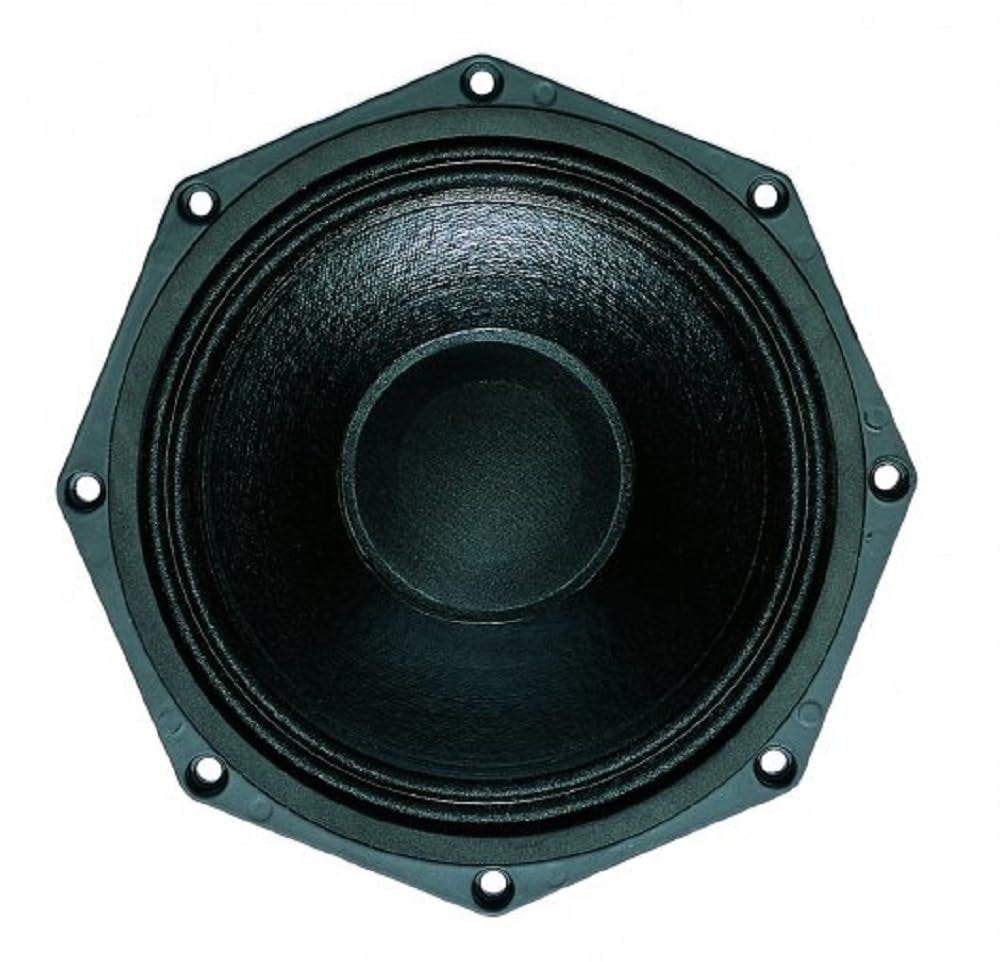

B&C Speakers 8CXN51 8-inch Coaxials Neo Woofer Cone WP Waterproof Front Side 250 Wrms 500 Watts Peak Audio Speaker 2 in Voice Coil 8 Ohm

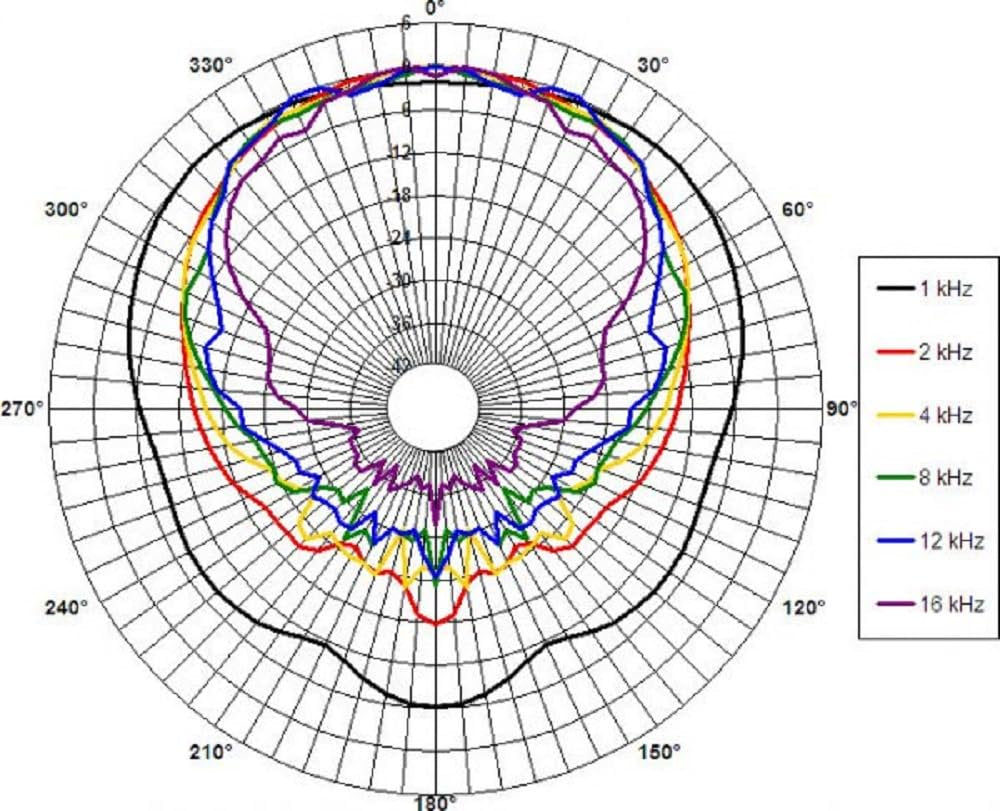

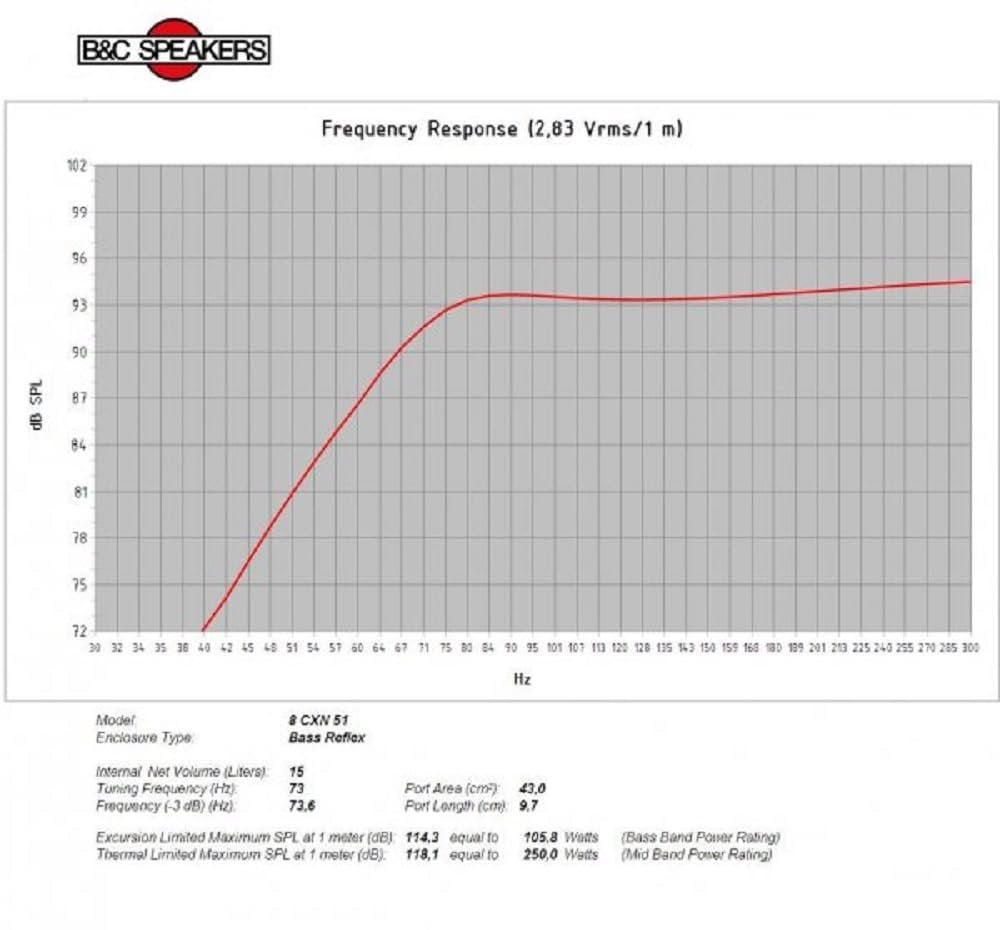

FEATURES : This 8-inch speaker driver delivers 500W continuous power with 97 dB sensitivity, offering a wide 70 Hz to 18,000 Hz frequency range. It features a 100° dispersion angle for broad sound coverage, an 8-ohm impedance, and a single Neodymium magnet assembly for efficient magnetic control and lightweight performance.
SPECIFICATIONS LF UNIT : This 8-inch LF speaker unit delivers 500W continuous power with 97 dB sensitivity and an 8-ohm impedance. It features a 2-inch aluminum voice coil wound to 0.67 inches on a glass fibre former, with a 0.31-inch magnetic gap and 1.15 T flux density for precise magnetic control. The front-side waterproof cone treatment enhances durability, making it suitable for demanding audio environments.
SPECIFICATIONS HF Unit : This 8-inch HF unit delivers 100W continuous power with an impressive 104 dB sensitivity and 8-ohm impedance. It features a 1.7-inch aluminum voice coil, 0.11 mH inductance, and 1.8 T flux density for precise high-frequency control. The polyimide diaphragm ensures durability and clarity, while the 1.8 kHz recommended crossover supports smooth integration in multi-way systems.
PARAMETERS : This speaker driver combines a Neodymium ring magnet with a front-side waterproof cone for durability and efficient bass performance. It features a 68 Hz resonant frequency, 220 cm² piston area, and 6 mm Xvar for controlled excursion. With a 22 g moving mass, BL factor of 12.6 Tm, and Qts of 0.27, it delivers strong motor force and responsive output. Its 17 dm³ Vas and 234 Hz EBP make it ideal for vented enclosures.

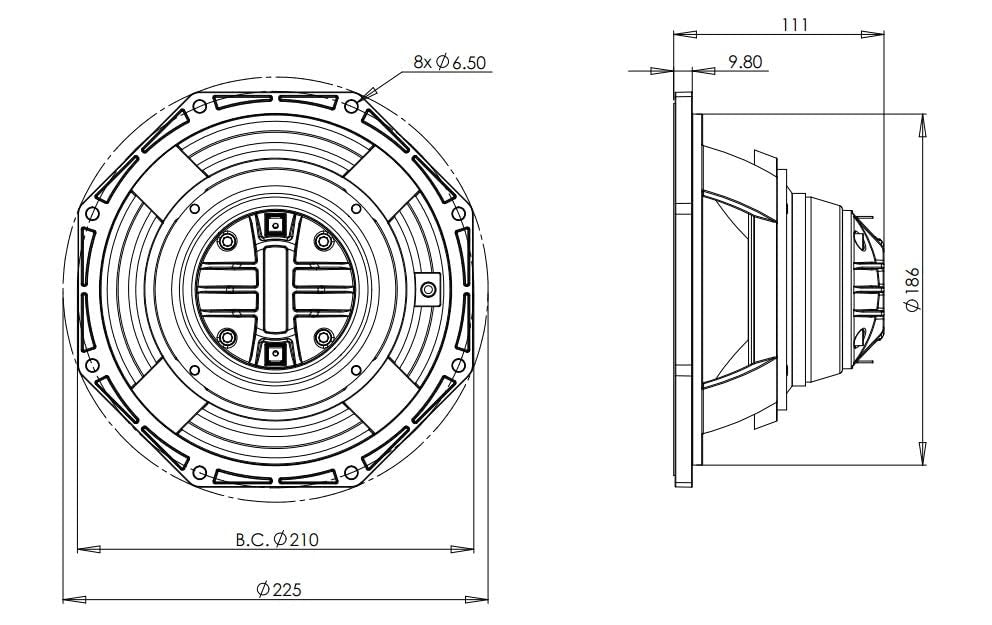

MOUNTING AND SHIPPING INFO : This speaker driver has an 8.8-inch overall diameter with a 7.4-inch baffle cutout and 8.3-inch bolt circle, making it suitable for standard mounting setups. It measures 4.4 inches deep, with a 0.4-inch flange and gasket thickness for secure installation. The unit weighs 5.73 lbs, and ships in a 11.61 × 12.36 × 6.89-inch box with a total shipping weight of 7.05 lbs.
