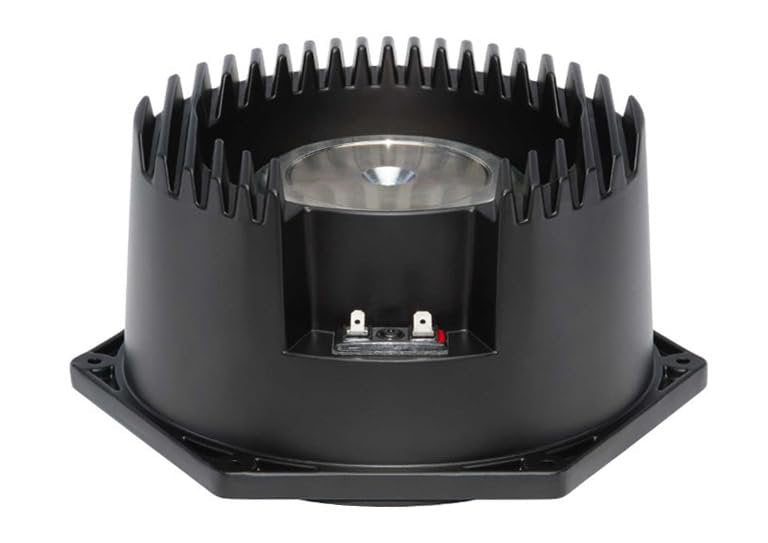

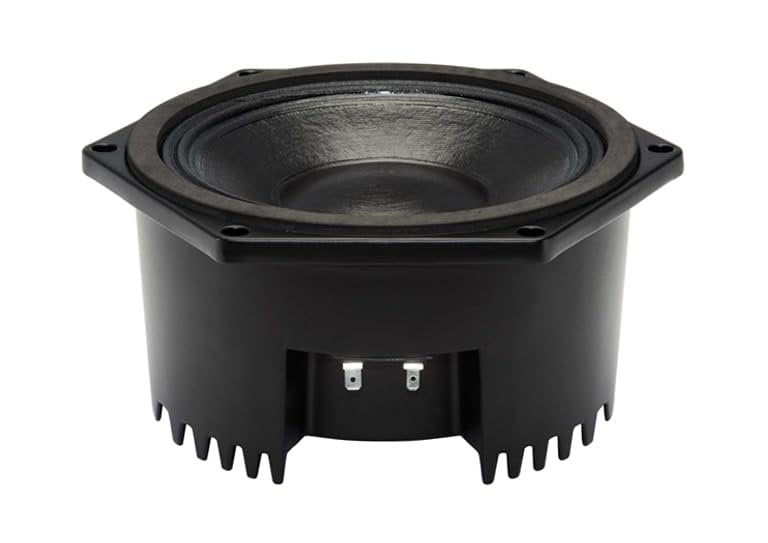

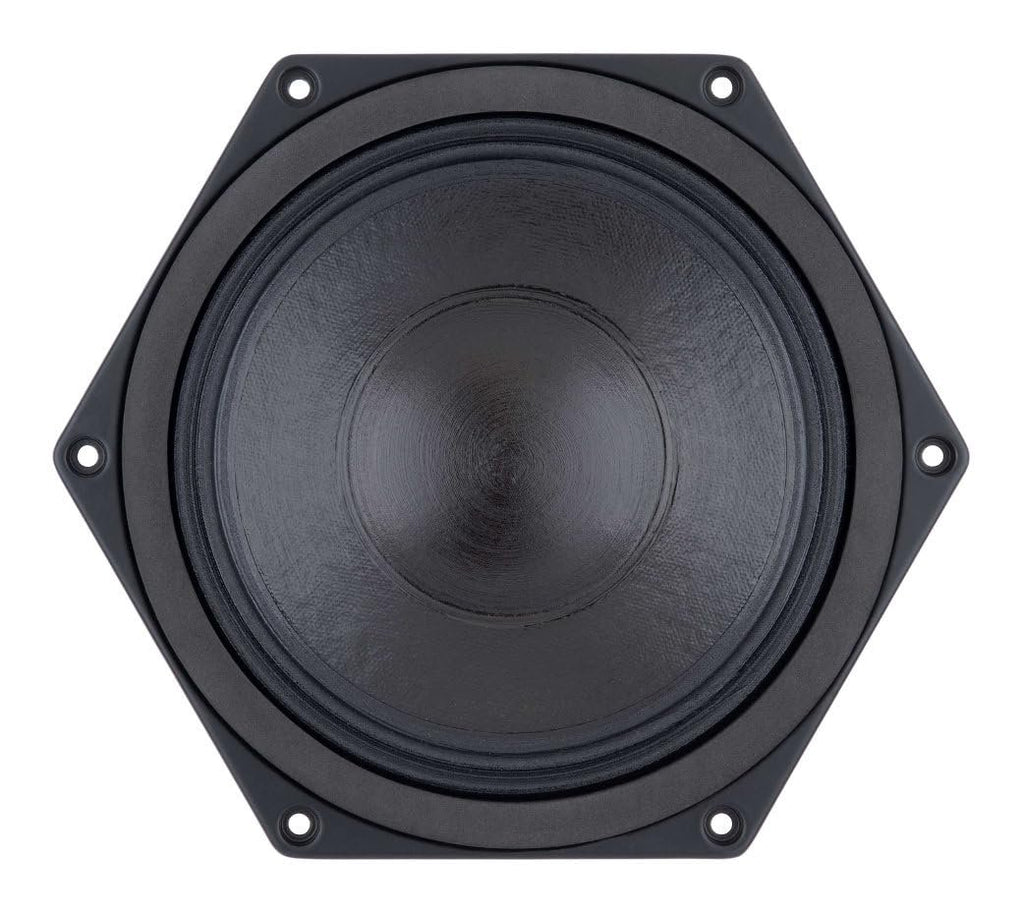

B&C Speakers 8NSM64-8 8 inch Sealed Midrange Series Glass Fibre WP Waterproof Front Side 250 Wrms 500 Watts Peak 8 Ohm
- The B&C Speakers 8NSM64-8 is a high-performance 8-inch sealed-back midrange driver designed for professional audio systems, especially in high-output 3-way setups or horn-loaded applications. ||
- HIGHLIGHTS || Powerful performance : 250WRMS (500W program power) w/ a 2.5-inch aluminum voice coil || Frequency response : 245 Hz to 2000 Hz ideal for focused midrange clarity || High sensitivity : 100 dB which means it delivers strong output with less power || Neodymium magnet : Keeps it lightweight while maintaining magnetic strength || Waterproof treated cone : Built to handle tough environments || Sealed-back design : Simplifies enclosure design and improves thermal management ||
- SPECIFICATIONS (1) || Nominal Diameter : 200 mm (8 in) || Minimum Impedance : 8.2 Ω || Continuous Power Handling : 500 W || Frequency Range : 245 Hz - 2000 Hz || Winding Material : Aluminium || Winding Depth : 13 mm (0.51 in) || Flux Density : 1.55 T ||
- SPECIFICATIONS (2) || Nominal Impedance : 8 Ω || Nominal Power Handling : 250 W || Sensitivity : 100 dB || Voice Coil Diameter : 64 mm (2.5 in) || Former Material : Glass Fibre || Magnetic Gap Depth : 10 mm (0.39 in) || Woofer Cone Treatment : WP Waterproof Front Side ||
- MOUNTING AND SHIPPING INFO || Overall Diameter : 239 mm (9.41 in) || Baffle Cutout Diameter : 200 mm (7.87 in) || Flange and Gasket Thickness : 16 mm (0.63 in) || Net Weight : 4.55 kg (10.03 lb) || Shipping Weight : 5.15 kg (11.35 lb) || Bolt Circle Diameter : 222 mm (8.74 in) || Depth : 115 mm (4.53 in) || Air Volume Occupied by Driver : 3.5 dm³ (0.12 ft³) || Shipping Units : 1 pcs || Shipping Box : 295x314x175 mm (11.61x12.36x6.89 in) ||
