B&C Speakers DRV3608 Compression Driver 1-inch Throat Diameter 35 Watts Rms 70 Watts Peak 8 Ohms Loudspeaker Motorcycle Car Pro Audio Components Speaker - DRV360-8
"GENERAL || Brand : B&C Speakers || Model Number : DRV3608 | DRV360-8 || UPC : 8059300644447 | 718852125078 || FEATURES || 70 W continuous program power capacity || 110 dB sensitivity || 1200 - 20000 Hz response || 1"" horn throat diameter || 38 mm (1.5 in) aluminum voice coil || Annular HT polymer diaphragm ||

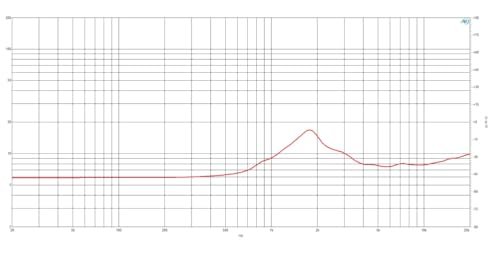

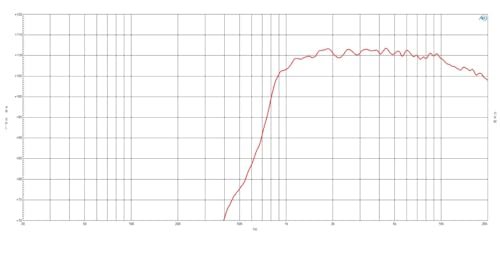

"SPECIFICATIONS || Throat Diameter : 25 mm (1 in) || Minimum Impedance : 7.6 Ω || Continuous Power Handling : 70 W || Frequency Range : 1.2 - 20 kHz || Voice Coil Diameter : 38 mm (1.5 in) || Inductance : 0.12 mH || Magnet Material : Neodymium Ring || Nominal Impedance : 8 Ω || Nominal Power Handling : 35 W || Sensitivity : 110 dB || Recommended Crossover : 1.8 kHz || Winding Material : Aluminium || Diaphragm Material : HT Polymer || Flux Density : 2 T || "

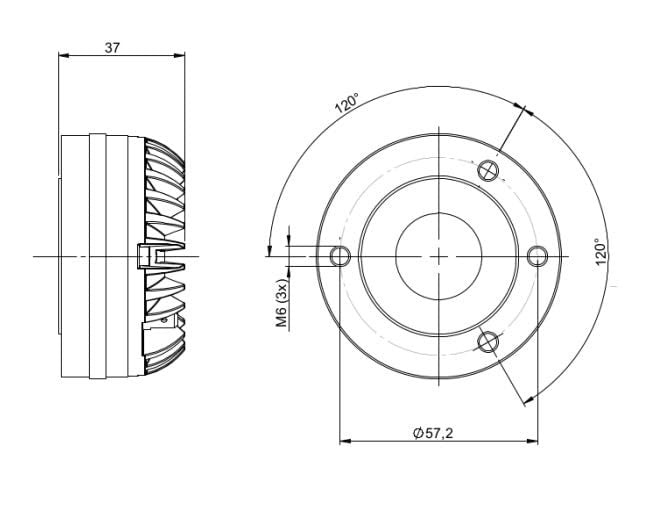

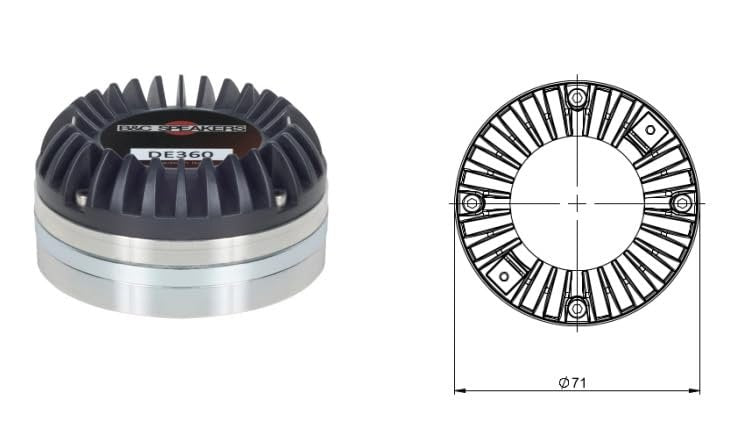

"MOUNTING AND SHIPPING INFO || Other details : 3x M6 Mounting Studs with bolts and washers included || Depth : 37 mm (1.46 in) || Shipping Units : 1 pcs || Shipping Box : 105x105x65 mm (4.13x4.13x2.56 in) || Overall Diameter : 71 mm (2.8 in) || Net Weight : 0.5 kg (1.1 lb) || Shipping Weight : 0.53 kg (1.16 lb) || "

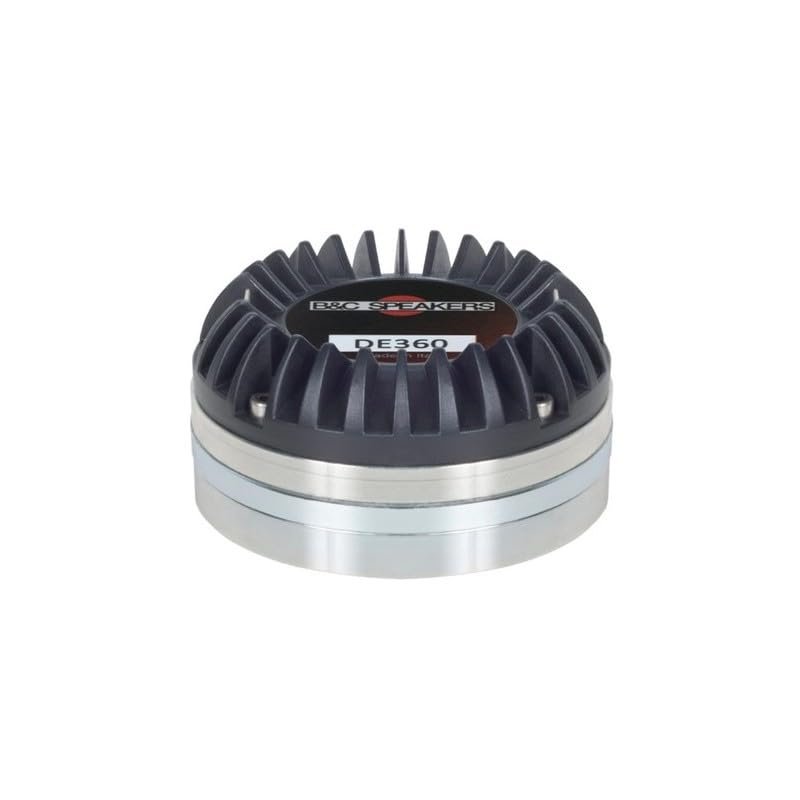

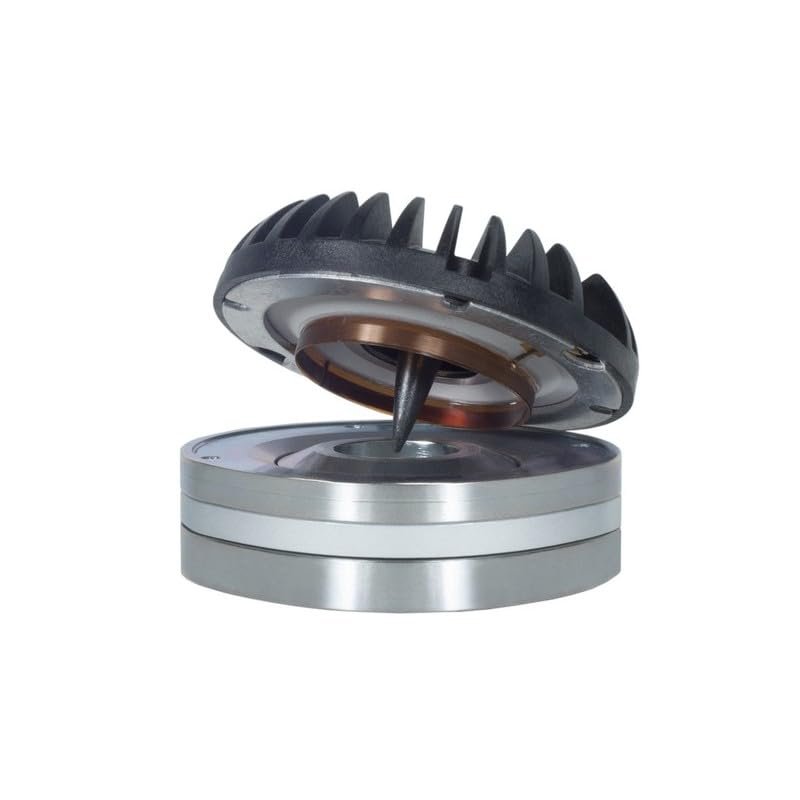

As the newest ring radiator offering from B&C speakers, the DE360 features a ketone polymer diaphragm with a neodymium magnet motor. Extensive FEA modeling and physical testing over the last several years has culminated in these 1.5 inch (38mm) coil ring drivers with outstanding sensitivity, high frequency extension, and compactness.
A practical recommended crossover point of 1.8kHz and sensitivity of 110dB in the DE360 allows for a wide range of applications, including compact two way boxes and line arrays.
