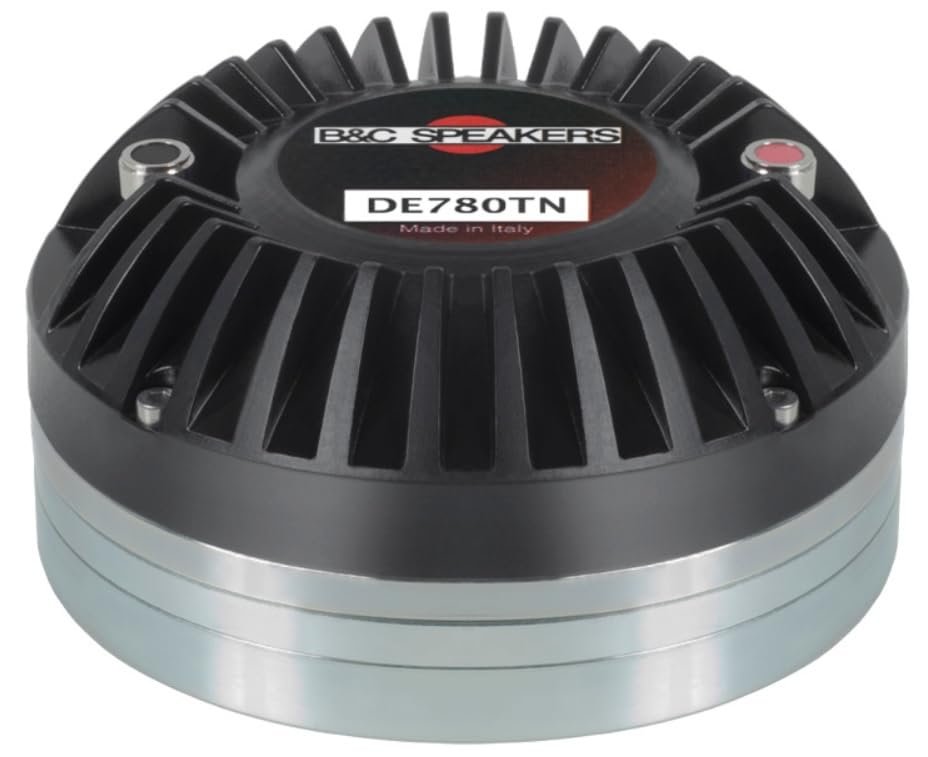

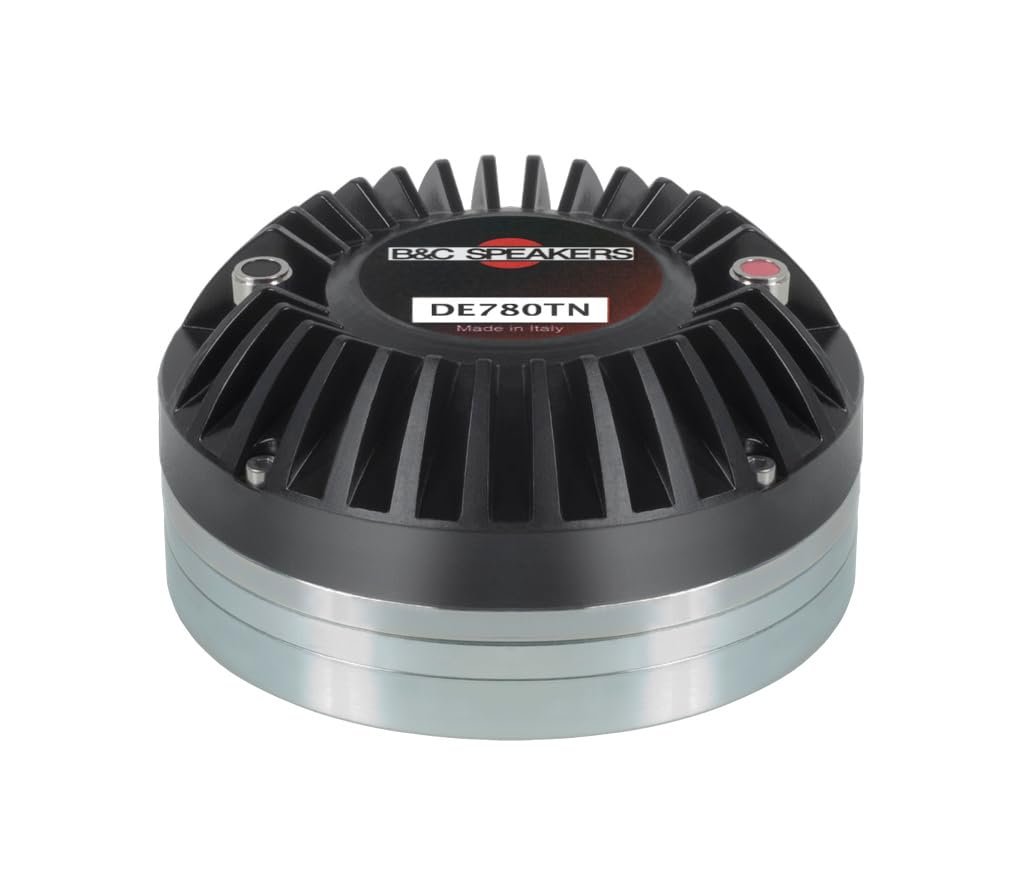

B&C Speakers DRV780TN-8 Compression Driver 1.4 inch Horn Throat Diameter Titanium Diaphragm 110 Watts Rms 220 Watts Peak 8 Ohms Motorcycle Car Pro Audio Sound Speaker - DRV780TN8
- "GENERAL || Brand : B&C Speakers || Model Number : DRV780TN-8 | DRV780TN8 | DE780TN || UPC : 8059300644744 | 718852125092 || FEATURES || 220 W continuous program power capacity || 1.4"" horn throat diameter || 75 mm (3 in) aluminum voice coil || Titanium diaphragm || 500 - 18000 Hz response || 108 dB sensitivity || Neodymium magnet assembly with shorting copper cap ||
- "SPECIFICATIONS || Throat Diameter : 36 mm (1.4 in) || Minimum Impedance : 8.7 Ω || Continuous Power Handling : 220 W || Frequency Range : 0.5 - 18 kHz || Voice Coil Diameter : 75 mm (3 in) || Inductance : 0.04 mH || Magnet Material : Neodymium Ring || Nominal Impedance : 8 Ω || Nominal Power Handling : 110 W || Sensitivity : 108 dB || Recommended Crossover : 1.2 kHz || Winding Material : Aluminium || Diaphragm Material : Titanium || Flux Density : 1.95 T ||

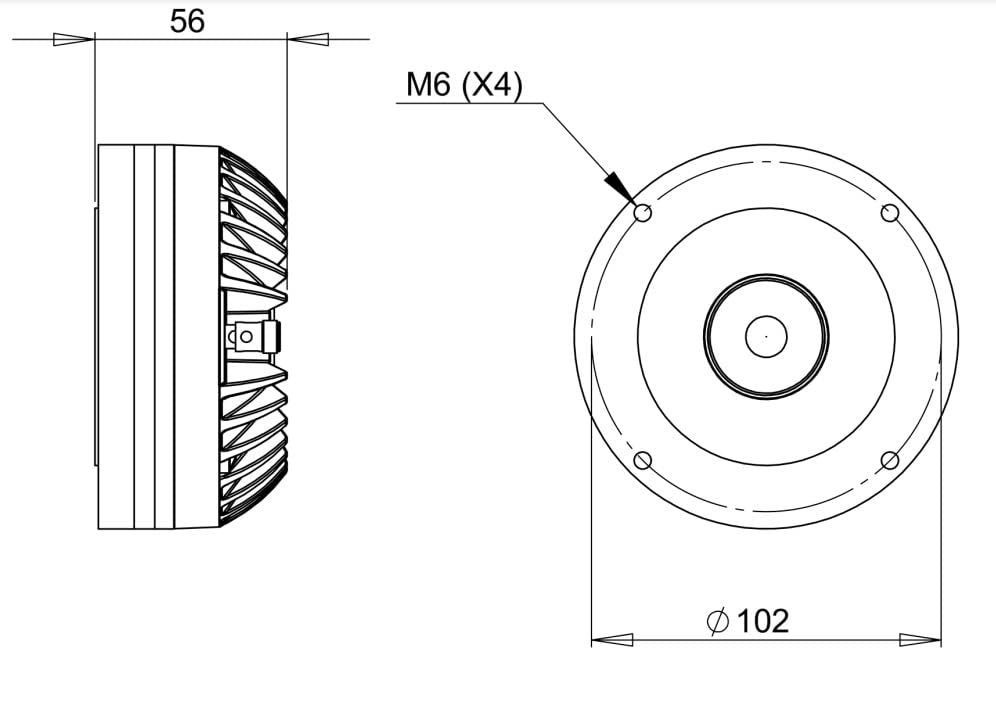

- "MOUNTING AND SHIPPING INFO || Other details : 4x M6 Mounting Studs with bolts and washers included || Depth : 56 mm (2.2 in) || Shipping Units : 1 pcs || Shipping Box : 120x120x65 mm (4.72x4.72x2.56 in) || Overall Diameter : 112 mm (4.41 in) || Net Weight : 1.6 kg (3.53 lb) || Shipping Weight : 1.64 kg (3.6 lb) || SERVICE KIT || HF Replacement Diaphragm : MMD3FTN8M ||
- While shrink-ray technology may not have escaped the 1990s, we have succeeded in creating two more highly compact drivers, not only permitting close spacing but also reducing weight and cost at the same time.
- In a larger, 3” coil we now offer the DE780 : Designed with a sonic character like our famous DE900TN, but in a 112mm diameter package weighing only 3.5 lb (1.6kg). Continuous power handling of 220W combined with 108dB sensitivity primes this driver for consideration in a new generation of lighter, more compact line array loudspeakers.
