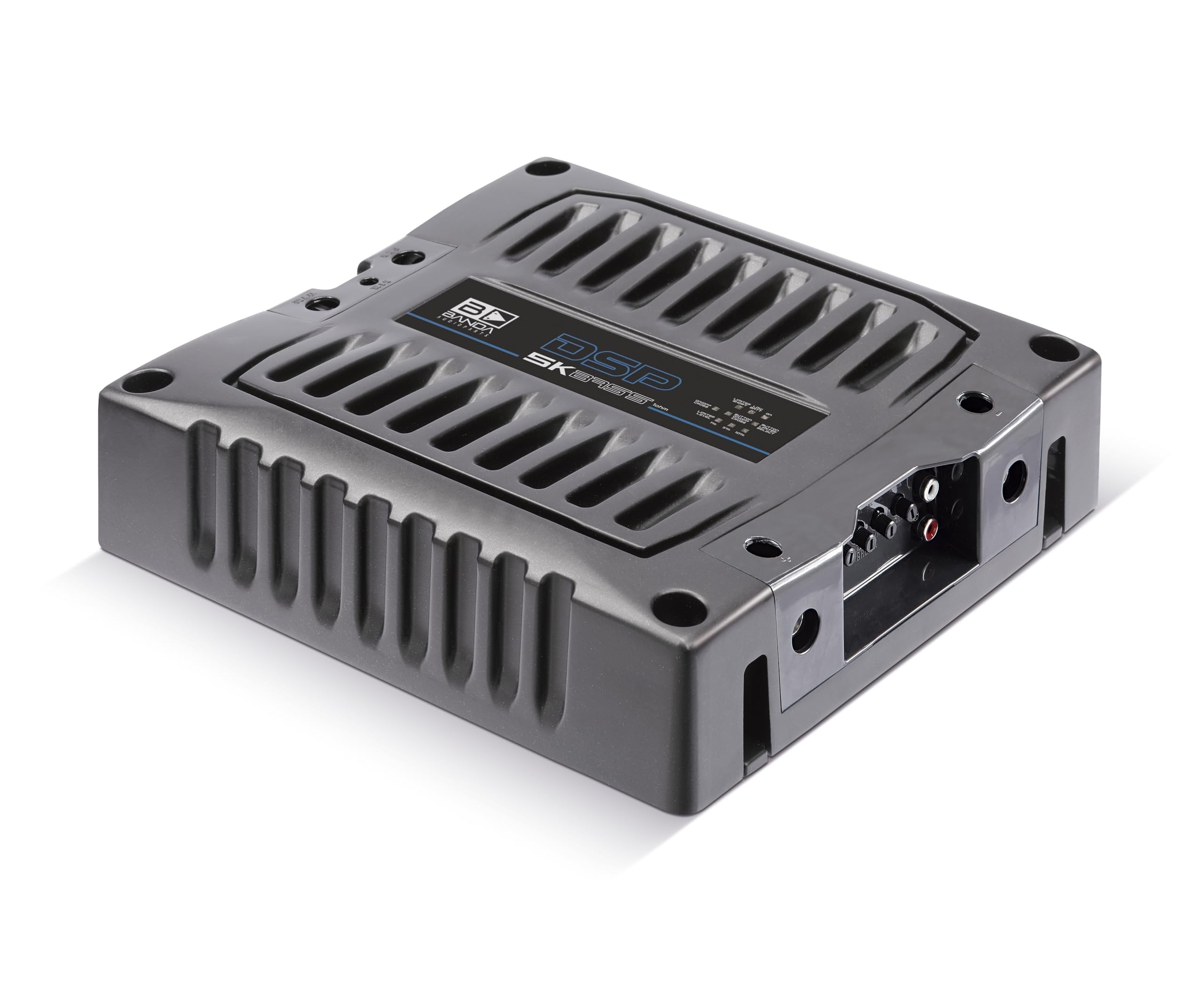

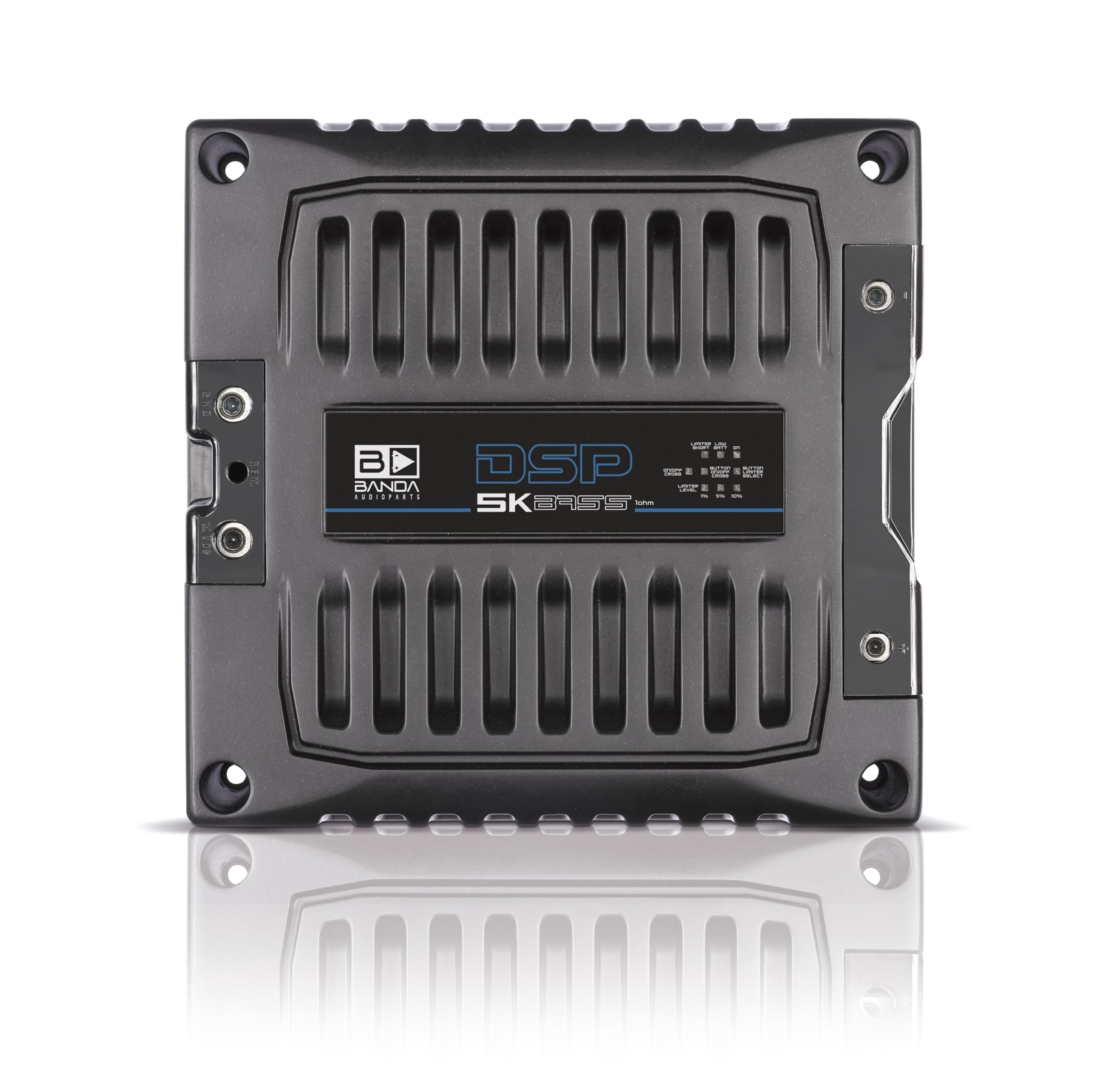

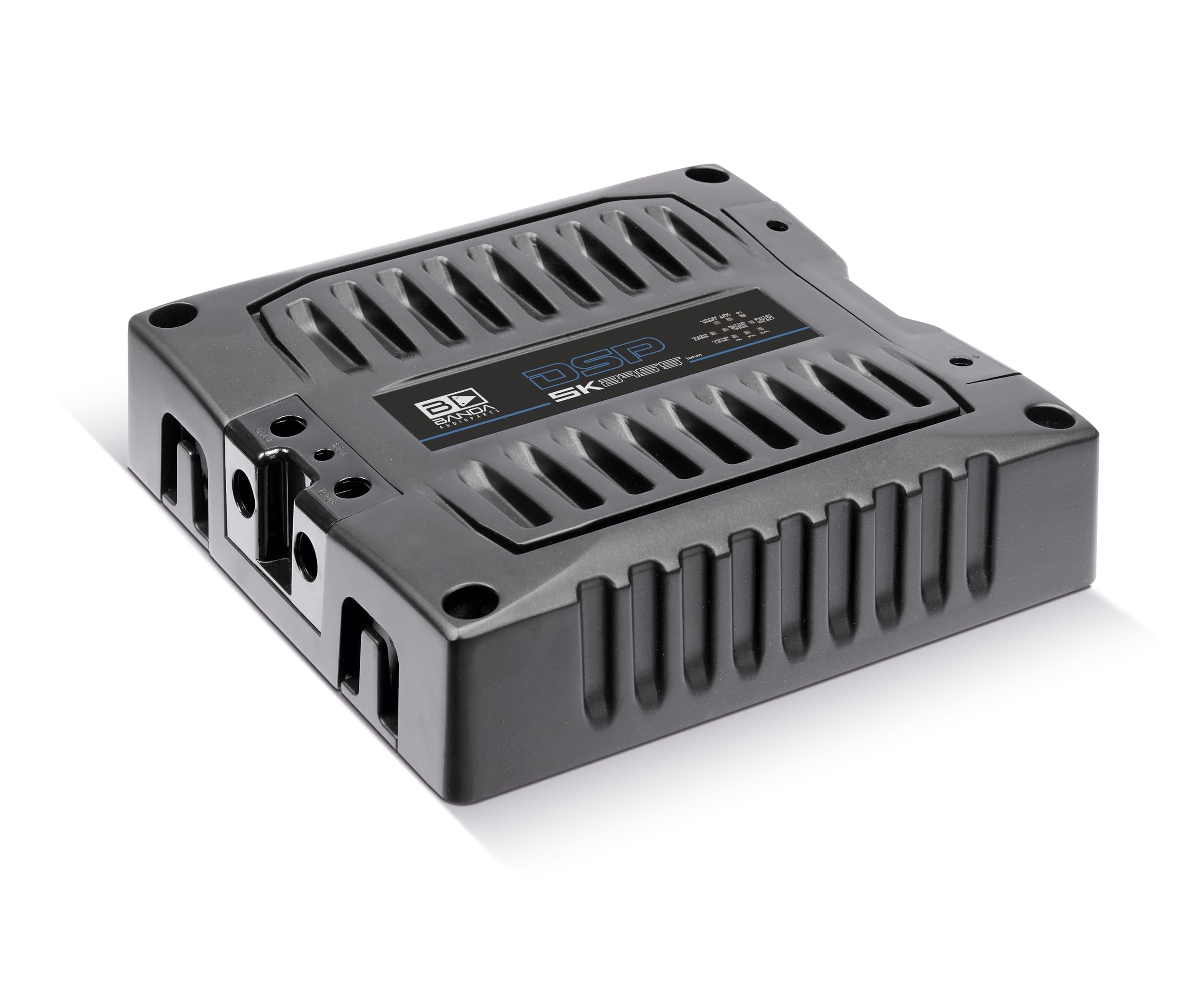

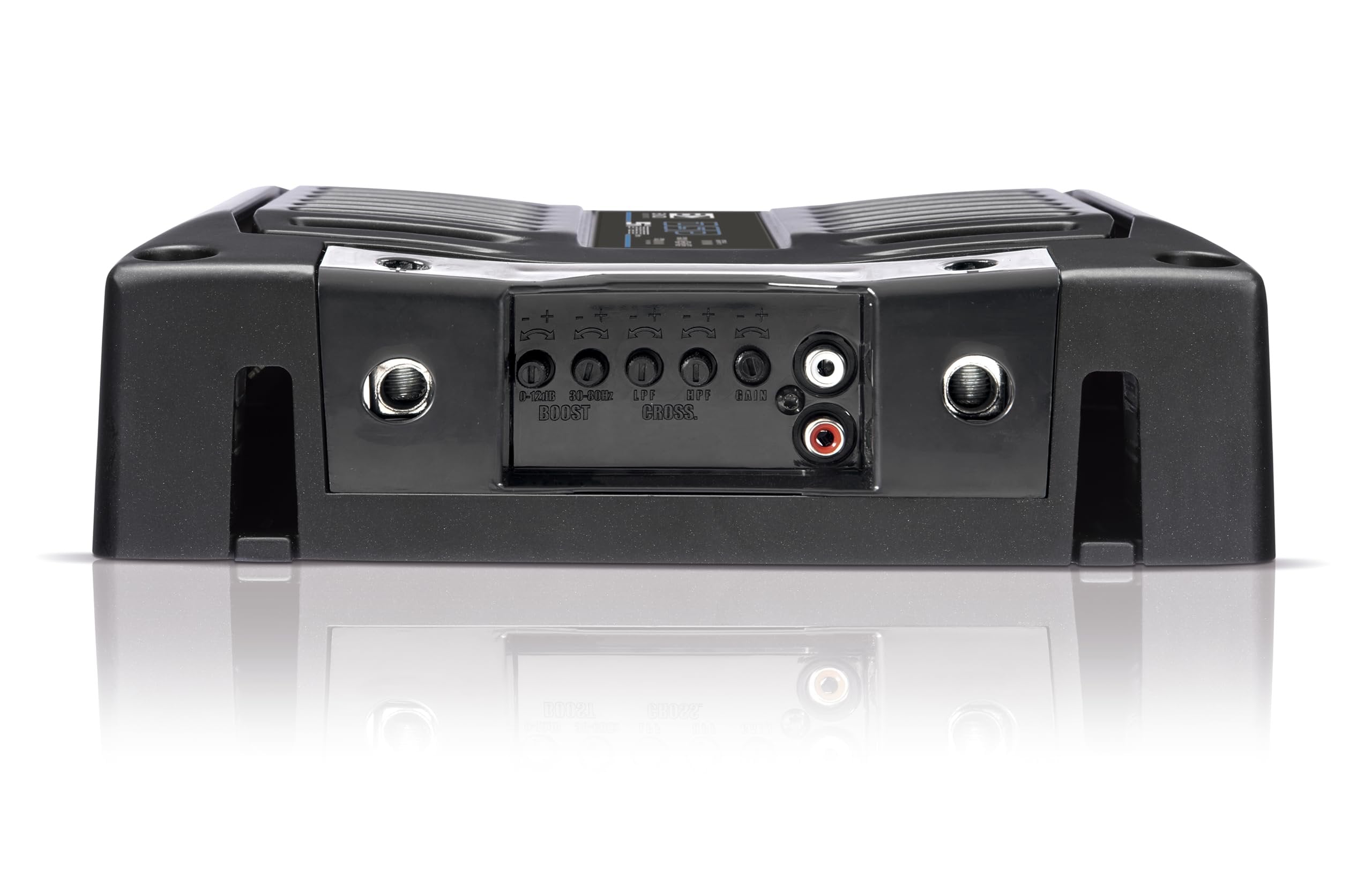

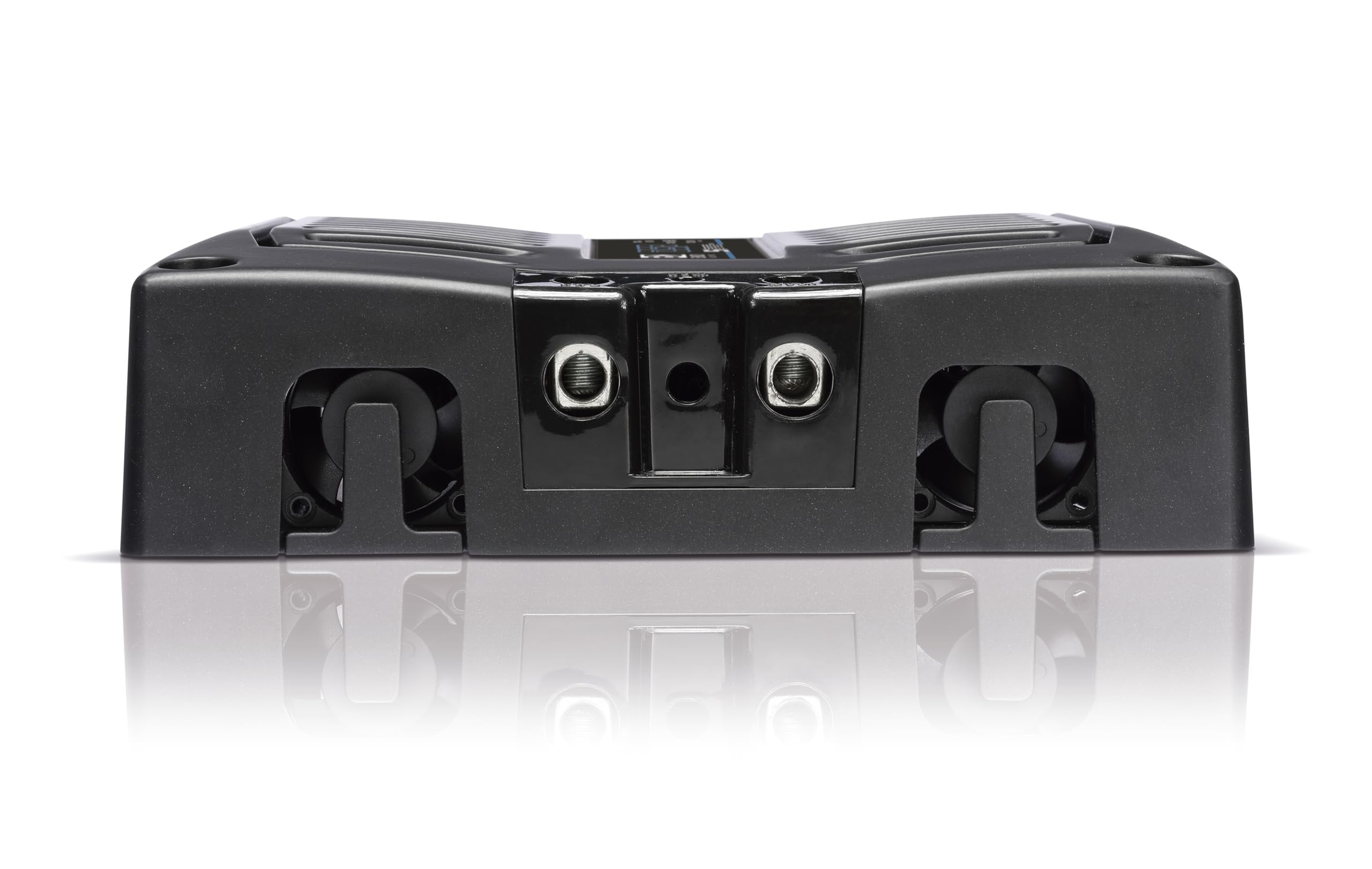

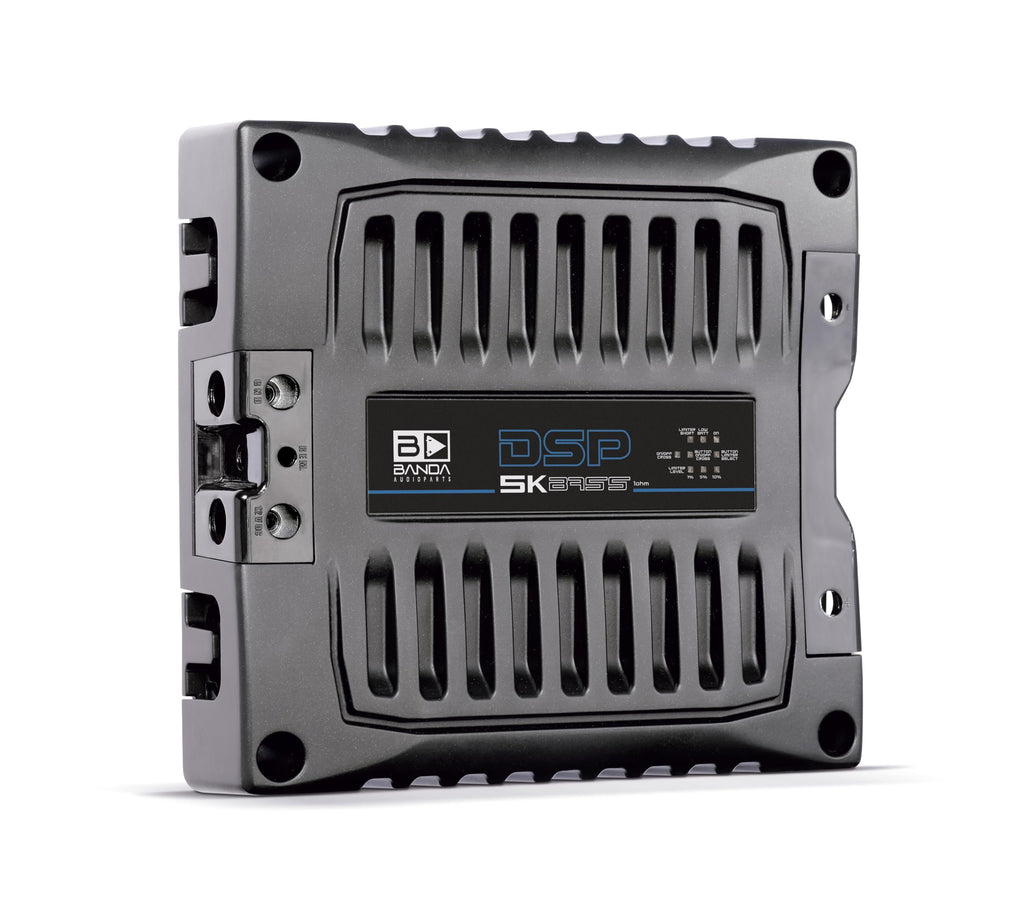

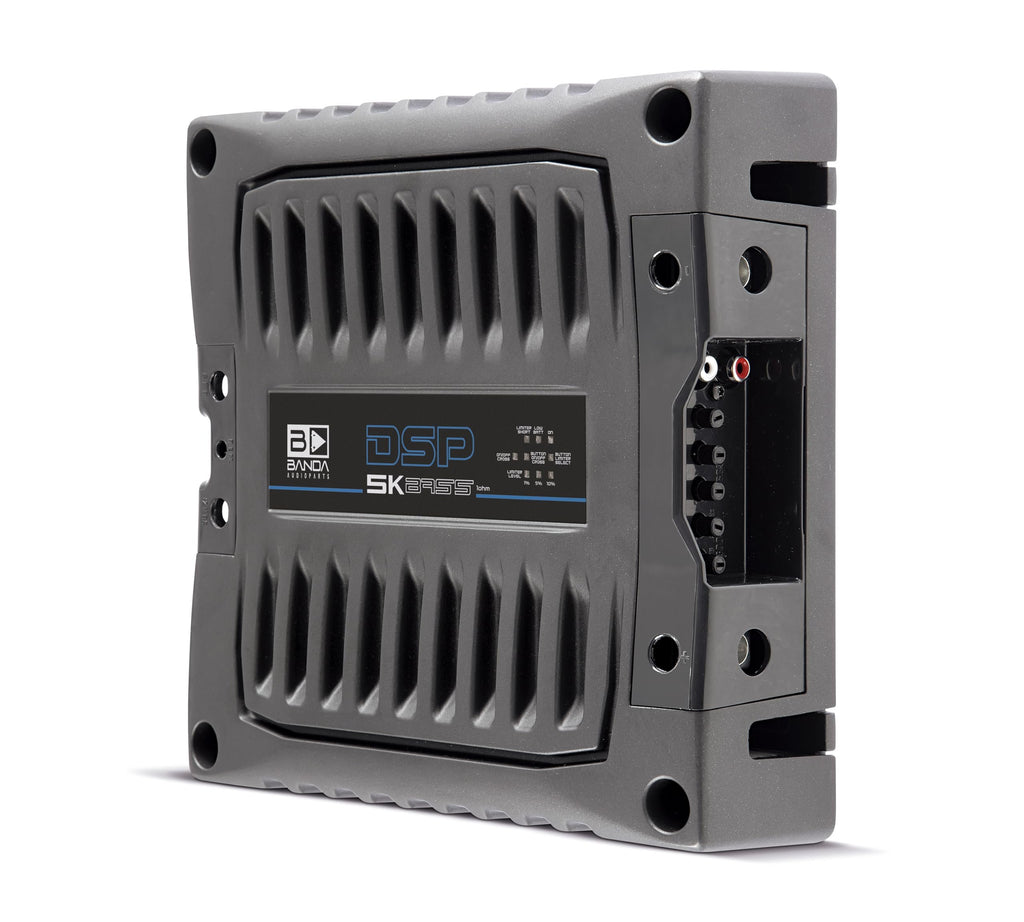

BANDA Audioparts DSP5K1BLACKBASS 5K DSP Bass Amplifier Car Audio Amp 1 x 5000 Watts Rms 1-Ohm Vehicle Amplifier Audio Speaker Systems Delivering Robust Power and Efficiency
- GENERAL : Brand : BANDA Audioparts || Model Number : DSP5K1BLACKBASS || UPC : 7898713131592 || BANDA 5K DSP BASS AMP 1 OHM BLACK ||
- TECHNICAL INFORMATION || Amplifier Class : D || Total Power 14,4 @ 1 Ohm : 6200 WRMS || Total Power 14,4 @ 2 Ohms : 4300 WRMS || Total Power 12,6 @ 1 Ohm : 5000 WRMS || Total Power 12,6 @ 2 Ohms : 3600 WRMS ||
- Efficiency @ 2 Ohms : 0.77 || Efficiency @ 1 Ohm : 0.67 || Input Voltage : 9 – 15V || Input Impedance : 100K Ohms || THD+Noise : <1% || Input Sensitivity : 40mV – 2V || SNR : 90dB || Frequency Response (Key OFF) : 5 to 500Hz (-3dBs) || Frequency Response : 20 to 500Hz (-3dBs) || Bass Bosst @ 45Hz : Variable 0 to +18dBs || HPF (Subsonic) : 20 to 80Hz @ 12dB/octave Linkwitz-Riley || LPF (Crossover) : 80 to 500Hz @ 12dB/octave Linkwitz-Riley ||
- Recommended Fuse : 250 A || Current at Rest : 3,5 A || Average Current Draw (Sinusoidal) : 600 A || Average Current Draw (Music) : 270 A || Power Wire Gauge (min. Recommended) : 50mm / 0 AWG || Speaker Wire Gauge (min. Recommended) : 2 x 6mm / 2 x 3 AWG ||
- DIMENSION || Weight (Lb) : 11.9 || Height (in) : 2.4 || Width (in) : 10.6 || Depth (in) : 12.3
