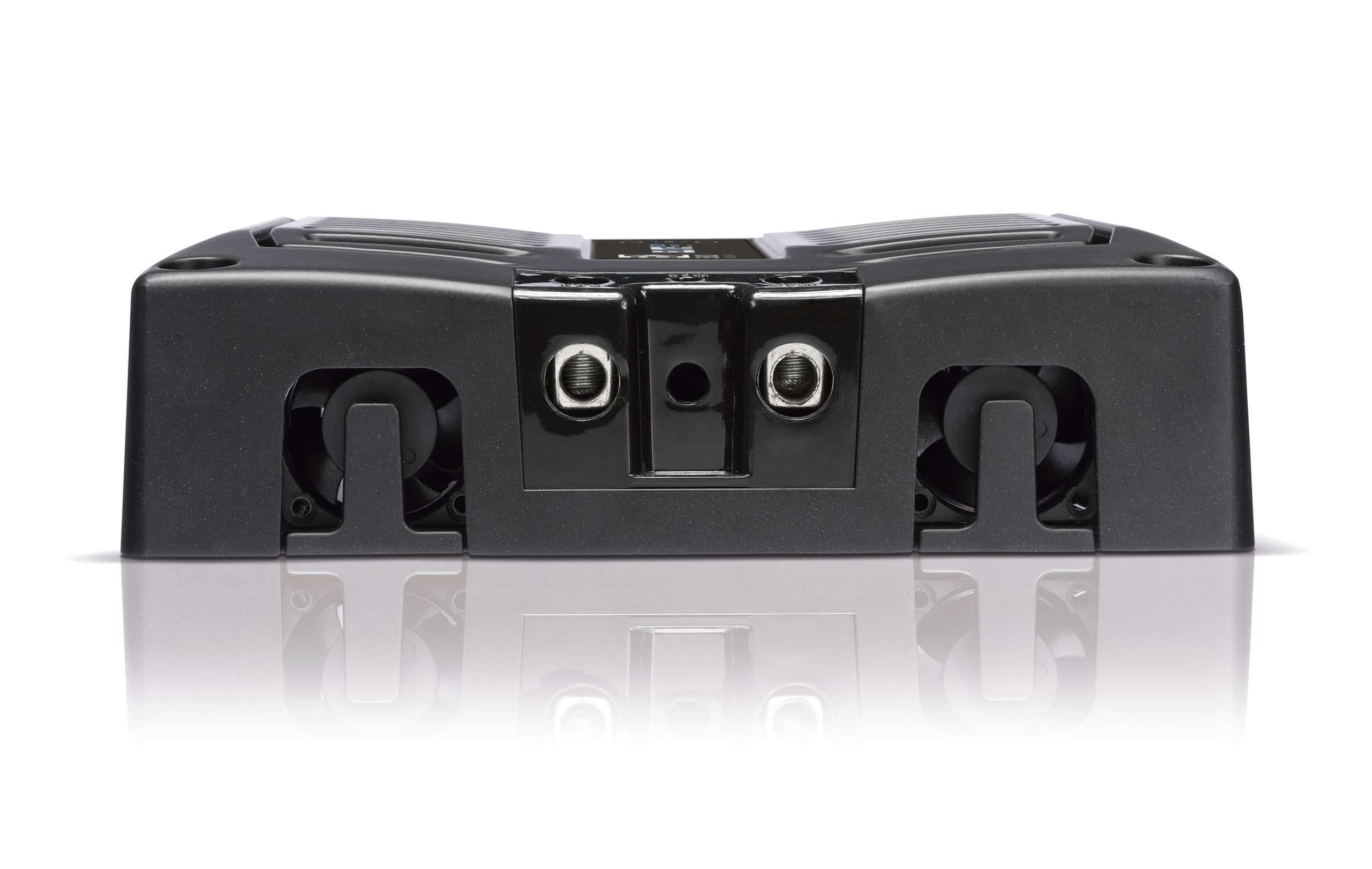

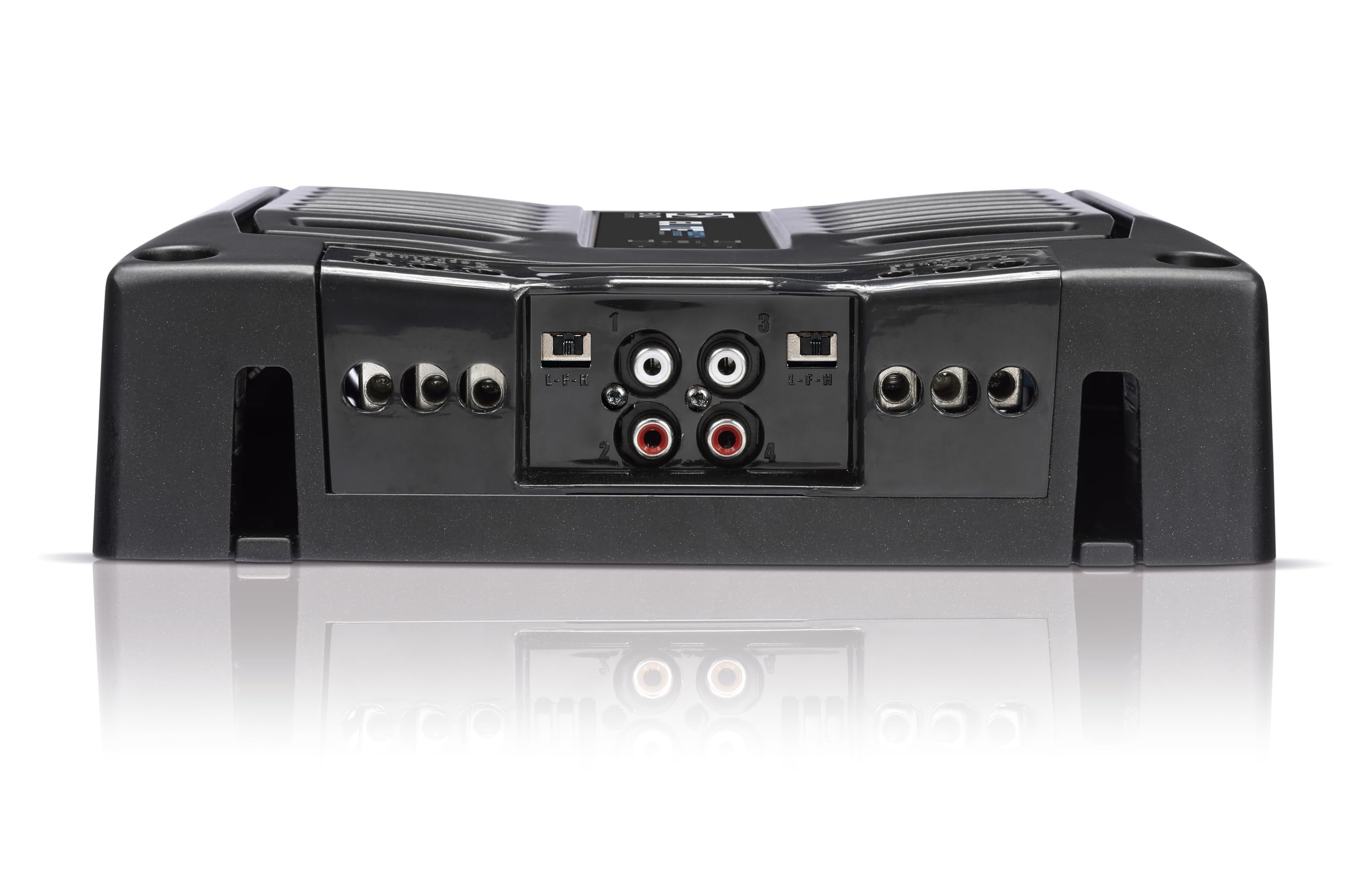

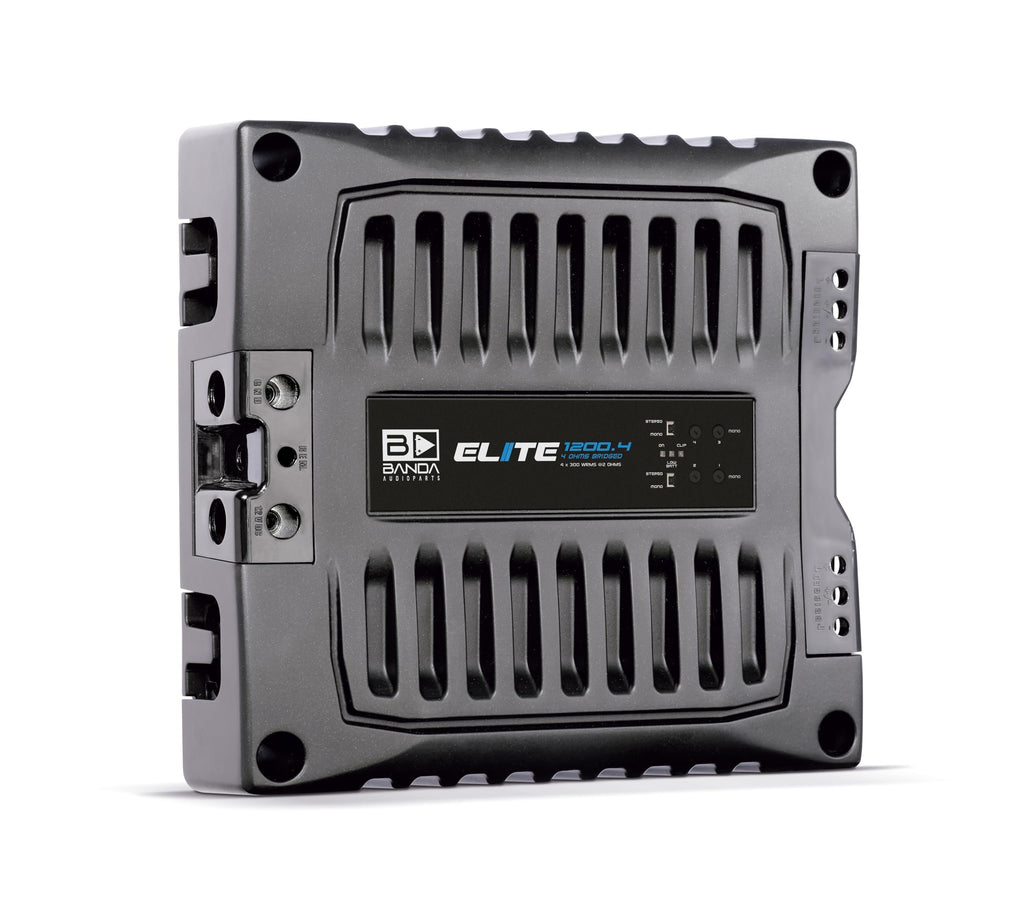

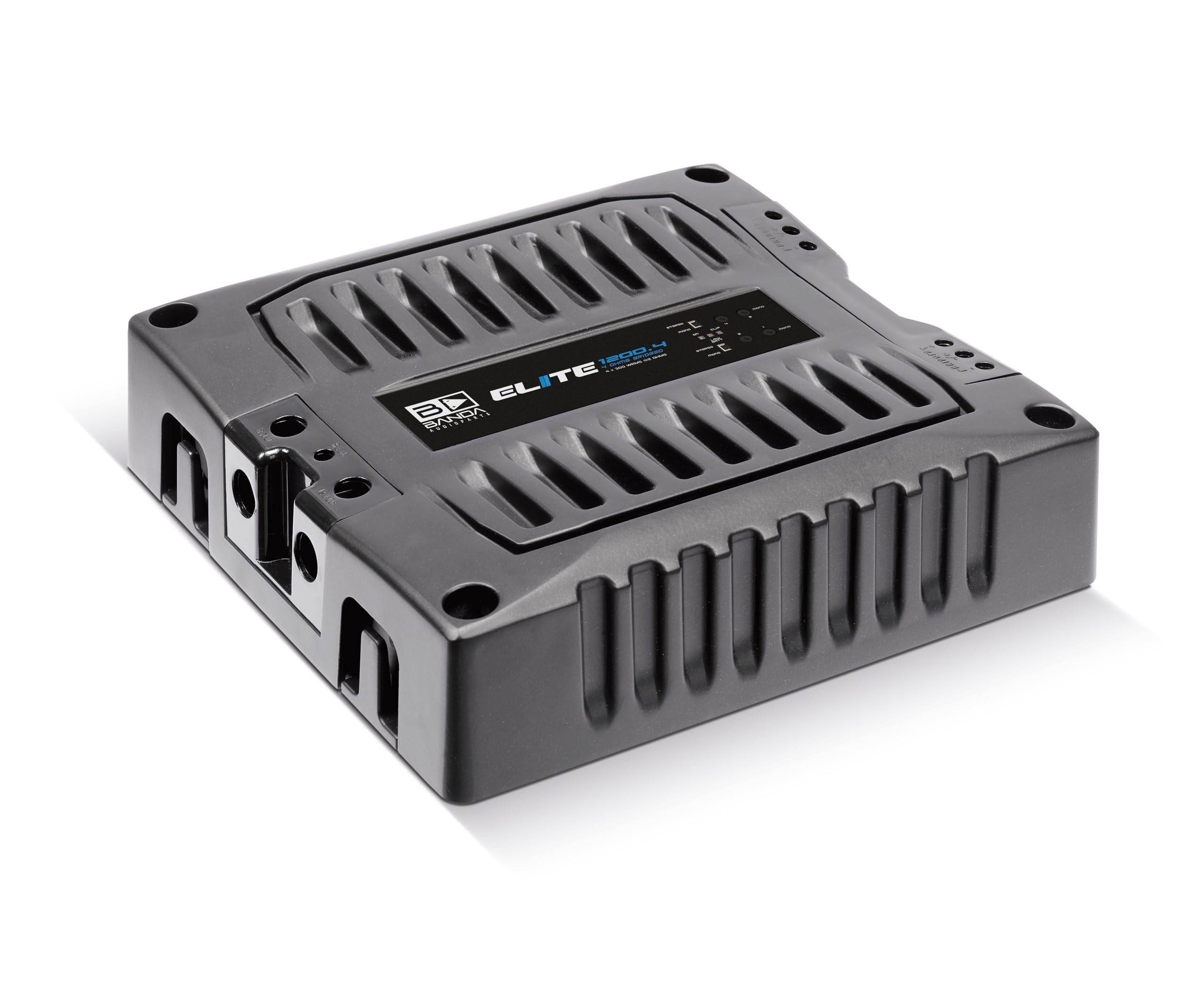

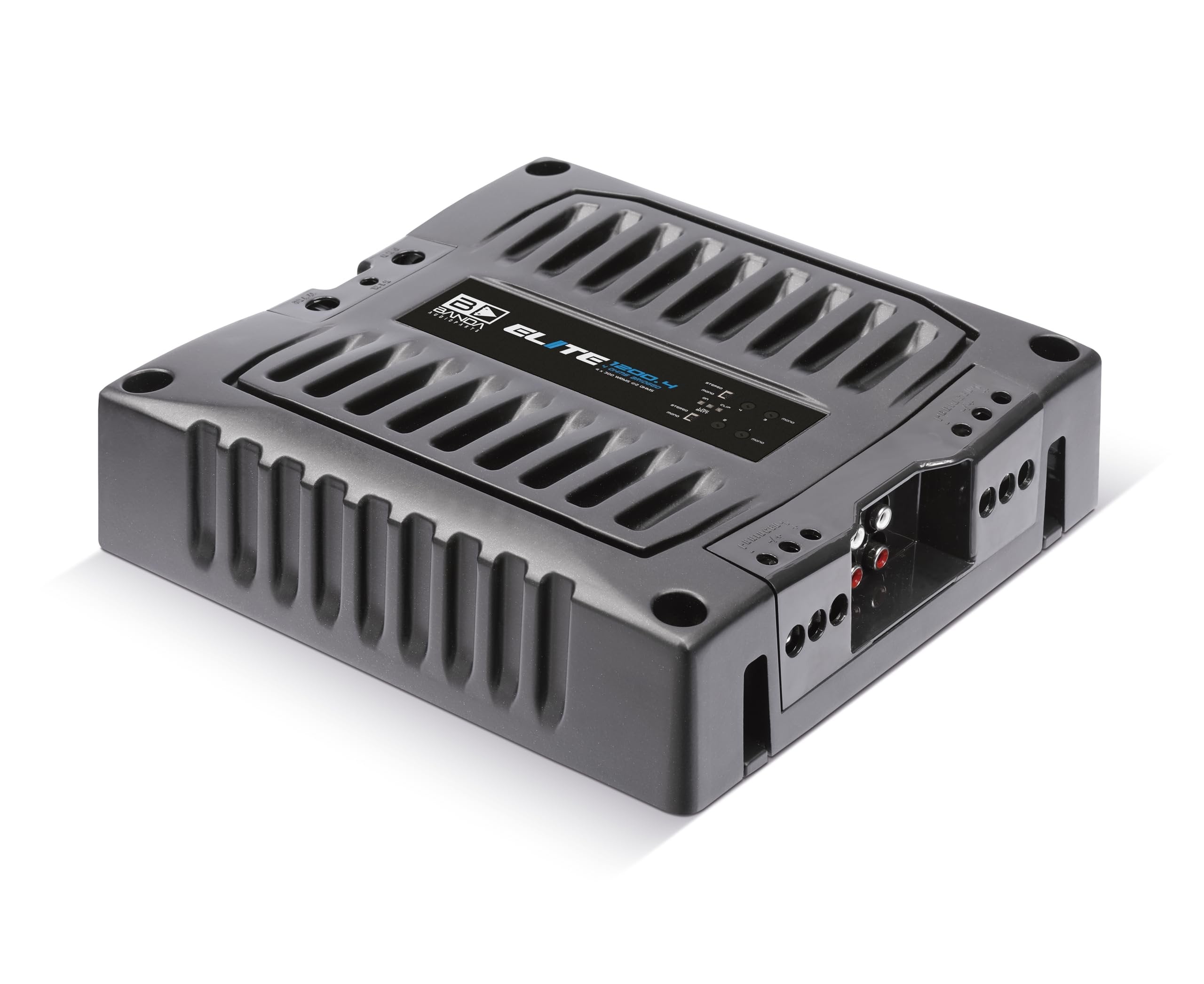

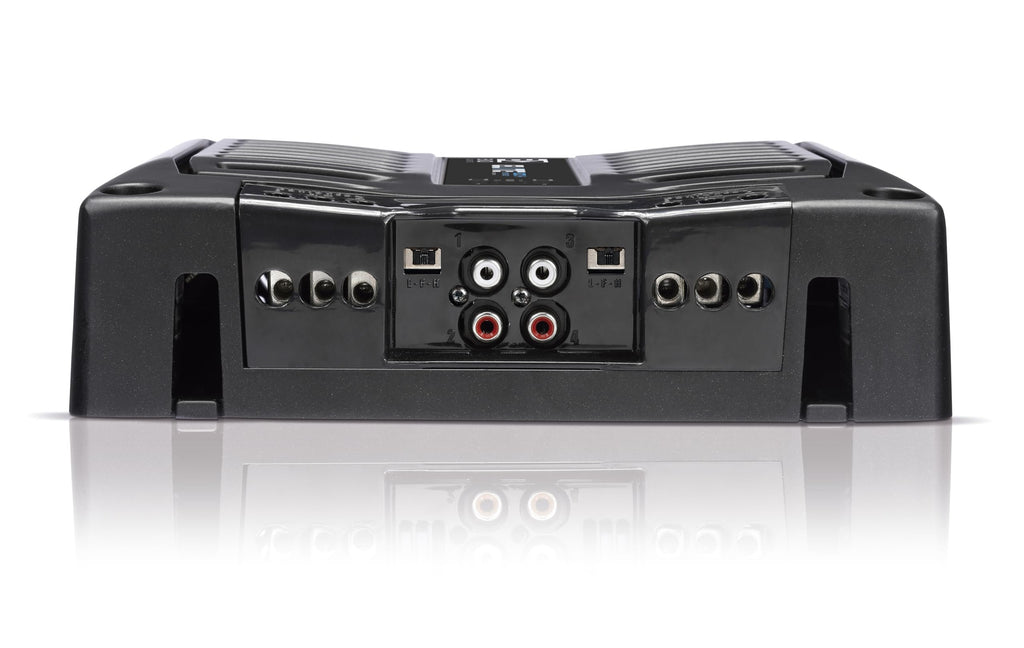

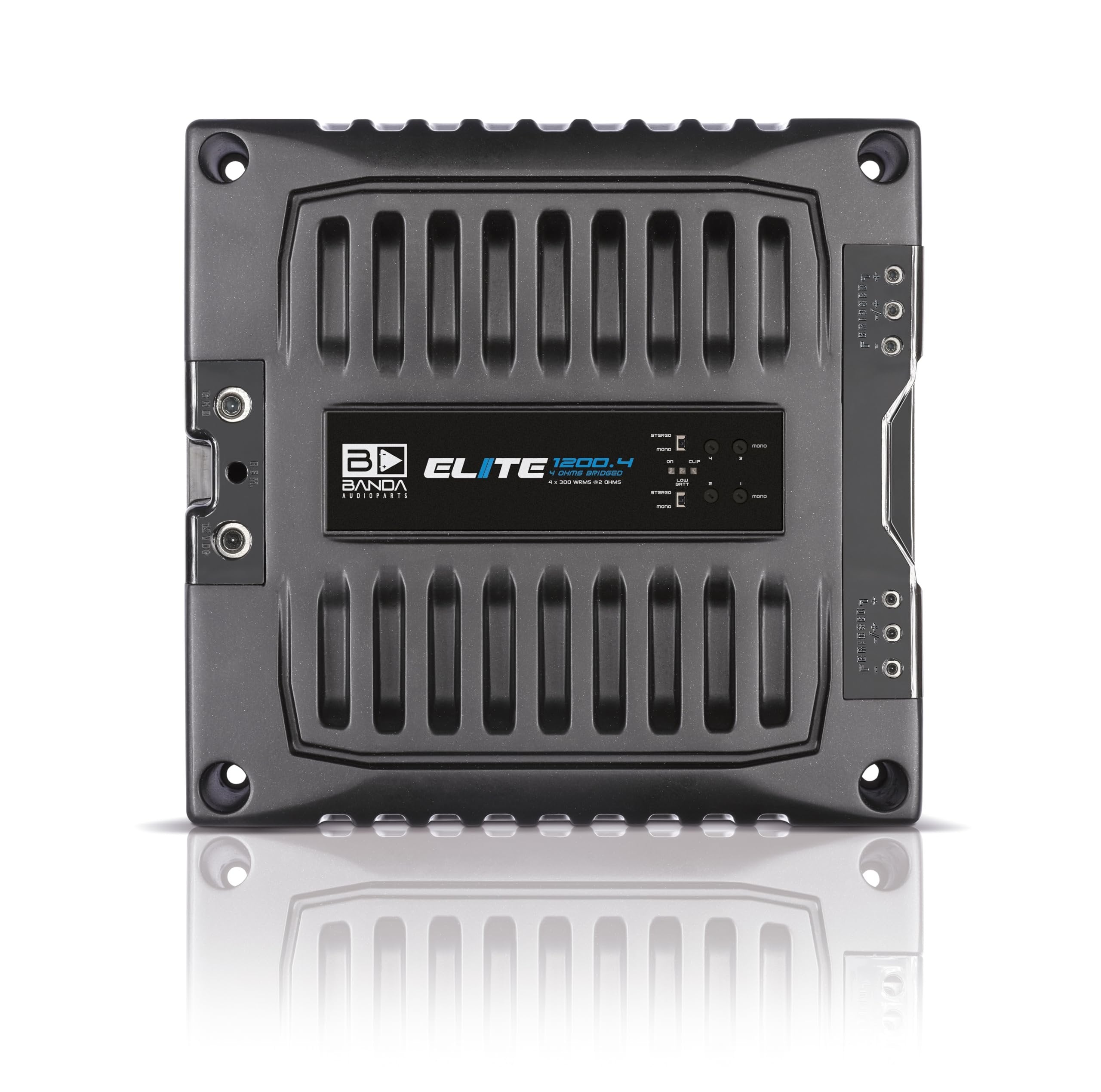

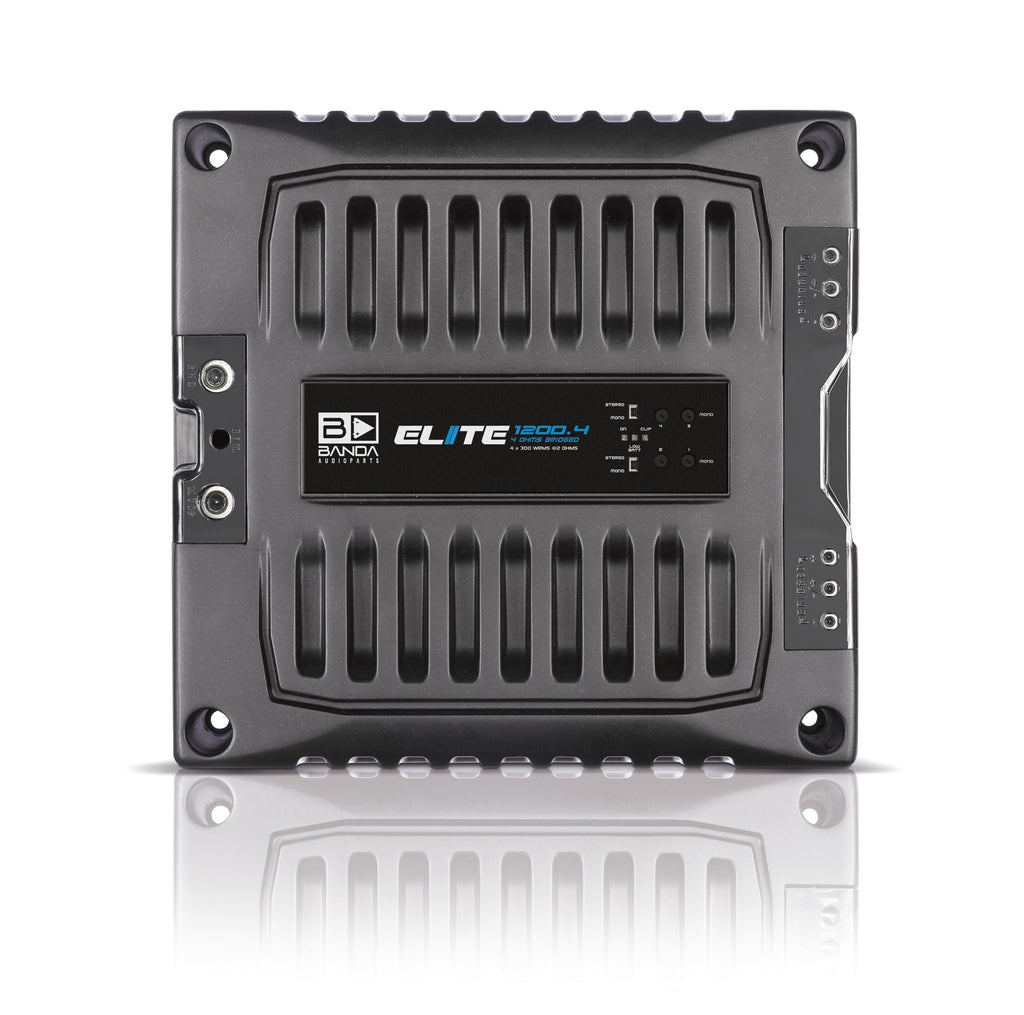

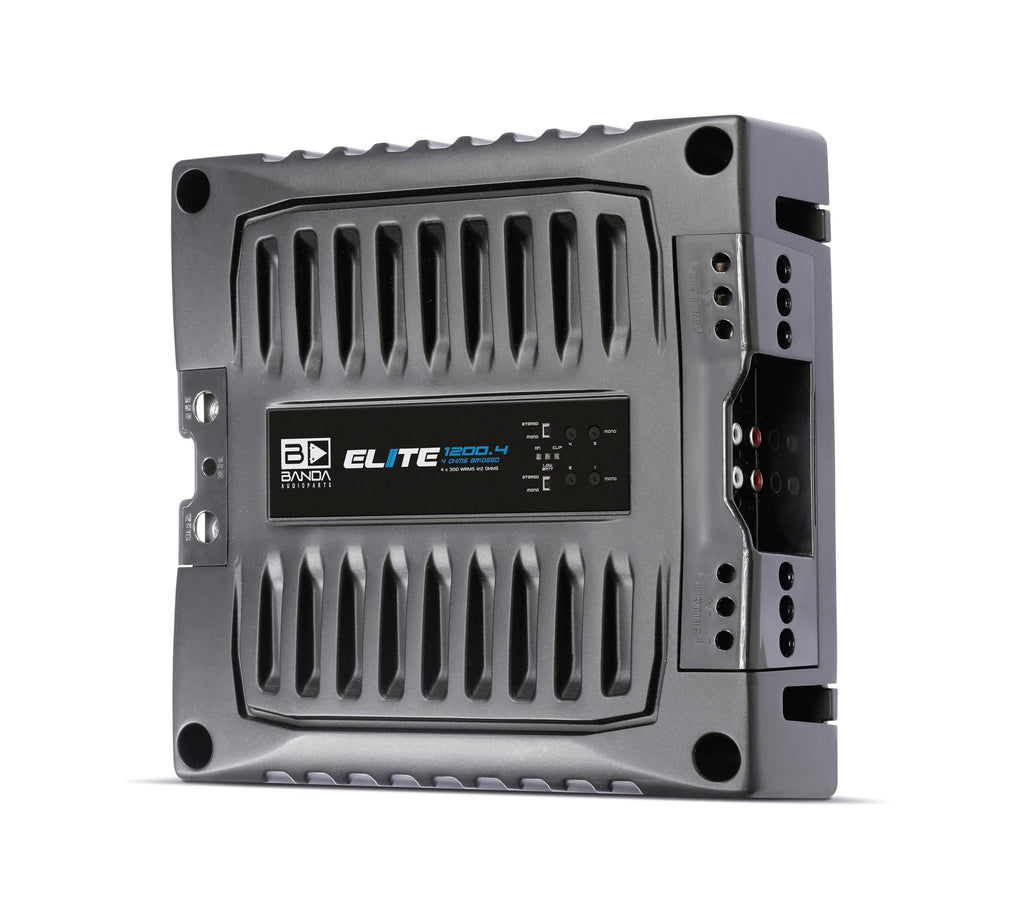

BANDA Audioparts ELITE1200.42OHMS 4-Channel Vehicle Audio Amplifier 4 x 300 Wrms 2-Ohms Car Amp with Highpass Filter and Low Pass Filter - 1200.42OHM
GENERAL || * Brand : BANDA Audioparts || * Model Number : 1200.42OHM | ELITE1200.42OHMS || * UPC : 7898713132018 || * COLOR : BLACK || The ELITE 1200.4 is a powerful 4-channel amplifier from BANDA Audioparts that impresses with its technical specifications. The amplifier also scores with a high signal-to-noise ratio and wide frequency coverage. ||
The technical profile is rounded off by a high-pass and a low-pass filter for optimum sound quality. The BANDA 1200.4 amplifier is indeed a robust and versatile car audio amplifier. This model is designed to provide high-quality sound with efficient power usage and it's suitable for a variety of car audio systems. ||
Technical data || Total Power 14,4 @ 1 Ohm : – || Total Power 14.4 @ 2 Ohms : 4 x 400 WRMS || Total Power 14.4 @ 4 Ohms : 4 x 260 WRMS || Total Power 14.4 Bridged @ 2-4 Ohms : 2 x 800 WRMS || Total Power 12.6 @ 1 Ohm : – || Total Power 12.6 @ 2 Ohms : 4 x 300 WRMS || Total Power 12.6 @ 4 Ohms : 4 x 200 WRMS || Total Power 12.6 Bridged @ 2-4 Ohms : 2 x 600 WRMS || Efficiency @ 4 Ohms : 0.92 || Efficiency @ 2 Ohms : 0.8 || Efficiency @ 1 Ohm : – ||
Technical data || Input Voltage : 9 – 15V || Input Impedance : 100K Ohms || THD+Noise : <1% || Input Sensitivity : 160mV – 4V || SNR : 86dB || Frequency Response : 20 to 20kHz (-3dBs) || HPF (High Pass Filter) : 80Hz @ 12dB/octave Linkwitz-Riley || LPF (Low Pass Filter) : 80Hz @ 12dB/octave Linkwitz-Riley || Recommended Fuse : 80 A || Current at Rest : 1.5 A || Average Current Draw (Sinusoidal) : 140 A || Average Current Draw (Music) : 75 A ||
Technical data || Power Wire Gauge (min. Recommended) : 16mm / 5 AWG || Speaker Wire Gauge (min. Recommended) : 2 x 2.5mm / 2 x 14 AWG || Weight (Lb) : 7.2 || Height (in) : 2.2 || Width (in) : 8.4 || Depth (in) : 9.7
