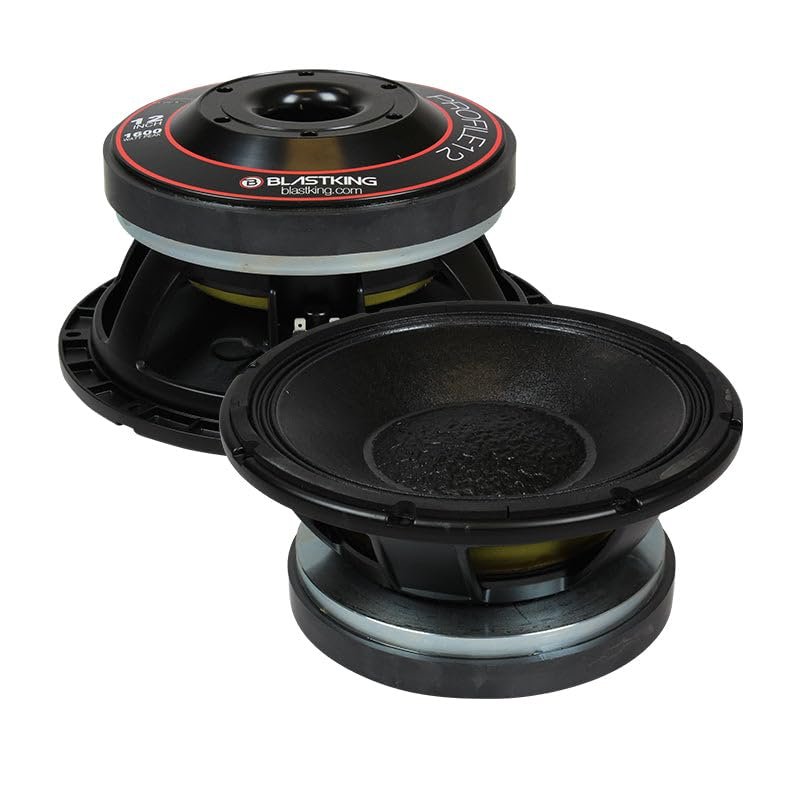

Blastking PROFILE12 Woofer 12-inch 1600 Watts Max Power 800 Watts RMS 4” Voice Coil 8 Ohm High Output Low Frequency Woofers Midranges Tweeters Forced Air VentilationFEATURES | 4” Voice Coil | 800 Watts Rated Power Handling | 1600 Watts Program Power | 95.6 dB sensitivity | 70 Hz – 1500 Hz frequency response | Forced air ventilationSPECIFICATIONS Basket Diameter : 305/12 mm/inch | Rated Impedance : 8 ohm | Rated Power Handling : 800 Watts | Program Power : 1600 Watts | Sensitivity : 95.6 dB | Frequency Range : 70-1500 Hz | Magnet Weight : 150 Oz | Magnet Composition : Ferrite Magnet | Voice Coil Diameter : 99.2/4 mm/inch | Voice Coil Construction : SV, Inside/Outside | Voice Coil Winding With : 25/1 mm/inch | Suspension : Single Spider | X-ma : 3/0.11 mm/inch | Basket Materials : Aluminum |MOUNTING INFORMATION | Overall Diameter : 320 mm / 12.6 inch | Bolt Circle Diameter : 293-304 mm / 11.5-12 inch | Bolt Hole Diameter : 6.5 mm / 0.25 inch | Front Mount Baffle Cut-Out : 280 mm / 11 inch | Rear Mount Baffle Cut-Out : 280 mm / 11 inch | Depth : 145 mm / 5.7 inchPHYSICAL INFORMATION | Net Weight : 15.4 Kg / 34 Lbs | Shipping Weight : 18.3 Kg / 40.3 Lbs | Dimension (WxDXH) : 370x370x200 mm / 14.5x14.5x7.9 inchThe BlastKing Profile series brings high output, low frequency woofers in 12”, 15”, 18” and 21” options. These transducers are capable of very low frequencies and are intended for use in a reflex or horn loaded cabinets. They are all made in a high-quality die cast aluminum frame and boast a heavy-duty ferrite magnet that allows for increased power ratings. The Profile transducers are perfect for those needing high level, low frequency output transducers with very low distortion.
