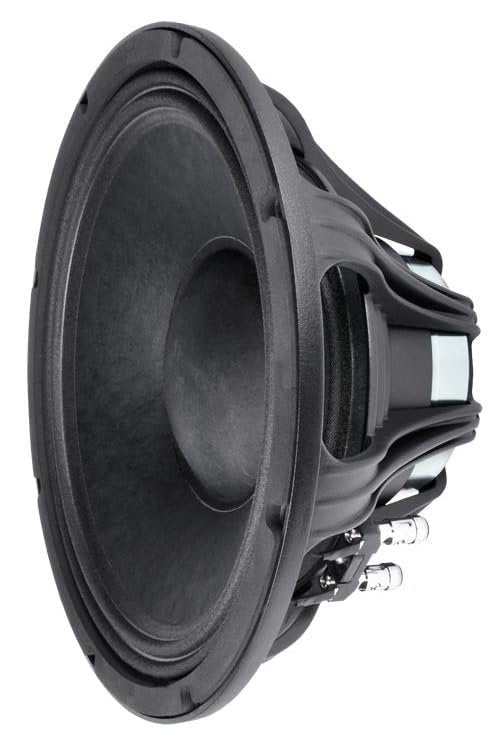

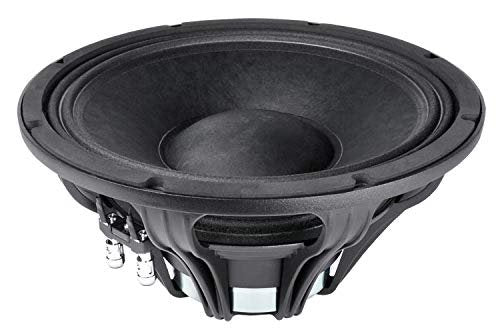

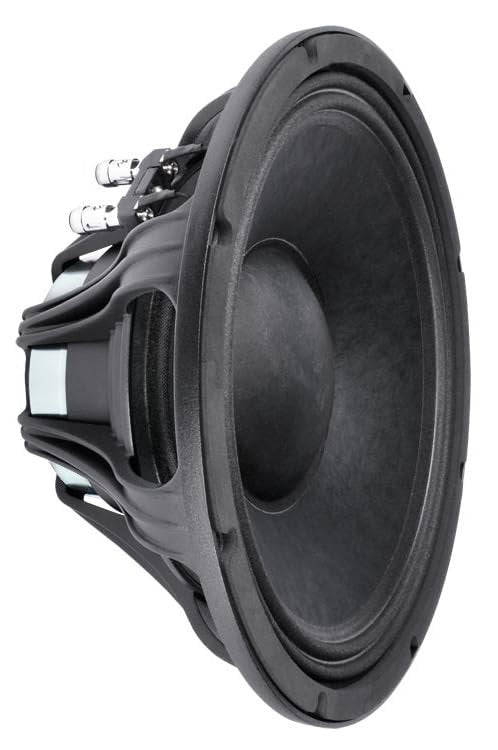

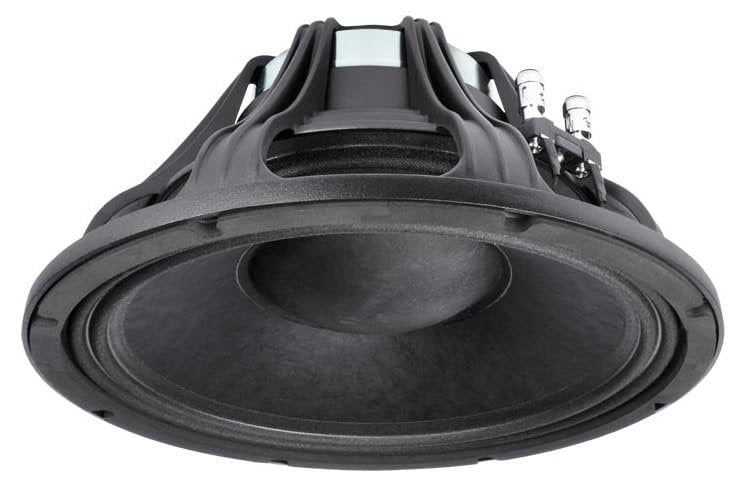

"The FAITAL PRO 12HP1020-8 is a 12-inch professional low-frequency loudspeaker. These features make the 12HP1020-8 suitable for applications requiring high power handling and efficiency, with a focus on delivering clear and powerful low-frequency audio || NOMINAL SPECIFICATIONS || Nominal Diameter : 300 mm (12 in) || Overall Diameter : 316 mm (12.44 in) || Bolt Circle Diameter : 298.5 mm (11.75 in) || Baffle Cutout Diameter : 284 mm (11.18 in) || Depth : 155.75 mm (6.13 in) || Flange and Gasket Thickness : 12.45 mm (0.49 in) || Net Weight : 5.8 kg (12.8 lb) || Shipping Box (Single Carton Box) : 350 x 346 x 216 mm (13.8 x 13.6 x 8.5 in) || Shipping Weight : 6.5 kg (14.3 lb) || || TECHNICAL PARAMETERS || Nominal Impedance : 8 Ohm || Minimum Impedance : 7.1 Ohm || AES Power Handling (1) : 700 W || Maximum Power Handling (2) : 1400 W || Sensitivity (1W/1m) : 97 dB || Frequency Range : 55÷3150 Hz || Voice Coil Diameter : 100 mm (4 in) || Winding Material : Al || Former Material : Glass Fiber || Winding Depth : 22 mm (0.87 in) || Magnetic Gap Depth : 12 mm (0.47 in) || Flux Density : 1.3 T || Magnet : Neodymium Slug || Basket Material : Aluminum || Demodulation : No || Cone Surround (3) : M-Roll || NET Air Volume filled by Loudspeaker : 2.8 dm^3 (0.099 ft^3) || Spider Profile : 2x non-adjacent symmetrical constant height waves || || THIELE AND SMALL PARAMETERS || Fs : 55 Hz || Re : 5.5 Ohm || Qes : 0.28 || Qms : 9.4 || Qts : 0.27 || Vas : 38.6 dm^3 (1.36 ft^3) || Sd : 533 cm^2 (82.62 in^2) || Xmax (4) : 9.00 mm || Xdamage (5) : 16 mm || Mms : 86.0 g || Bl : 24.3 N/A || Le : 1.1 mH || Mmd : 72.1 g || Cms : 0.10 mm/N || Rms : 3.2 kg/s || Eta Zero : 2.25 % || EBP : 196 Hz || || Brand : FAITAL PRO || Model Number : 12HP1020-8 | 12HP1020 || UPC : 810130951161 || PART NUMBER (P/N) Push Terminals - 8 Ohm Version : 3003940 || NOTES || PATENTED IT 2006/000327 || (1) 2 Hours Test According to AES 2-1984 Rev. 2003 || (2) Maximum power is defined as 3dB greater than nominal power || (3) Treated Polycotton || (4) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3) || (5) Maximum excursion before permanent damage""", 12HP1020, 810130951161, 3003940, 2006/000327

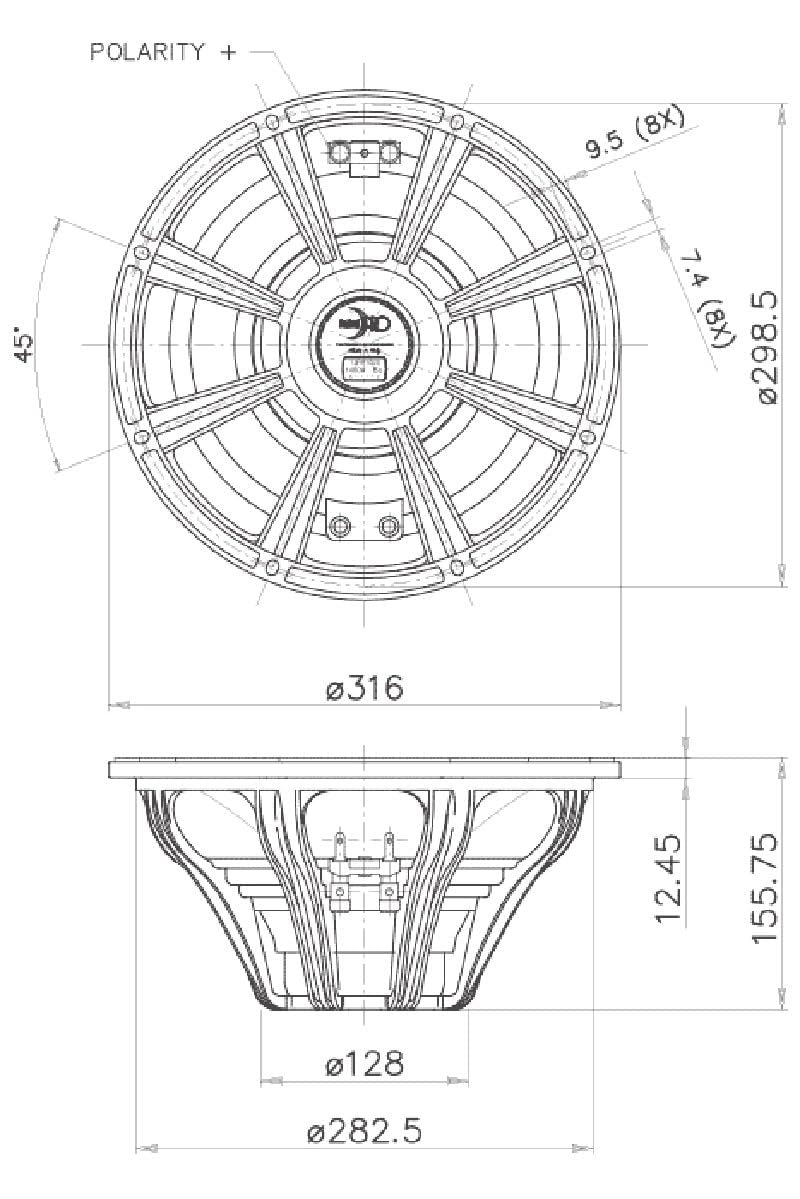

"NOMINAL SPECIFICATIONS Nominal Diameter : 300 mm (12 in) || Overall Diameter : 316 mm (12.44 in) || Bolt Circle Diameter : 298.5 mm (11.75 in) || Baffle Cutout Diameter : 284 mm (11.18 in) || Depth : 155.75 mm (6.13 in) || Flange and Gasket Thickness : 12.45 mm (0.49 in) || Net Weight : 5.8 kg (12.8 lb) || ""Shipping Box (Single Carton Box) : 350 x 346 x 216 mm (13.8 x 13.6 x 8.5 in) || "" Shipping Weight : 6.5 kg (14.3 lb) || "

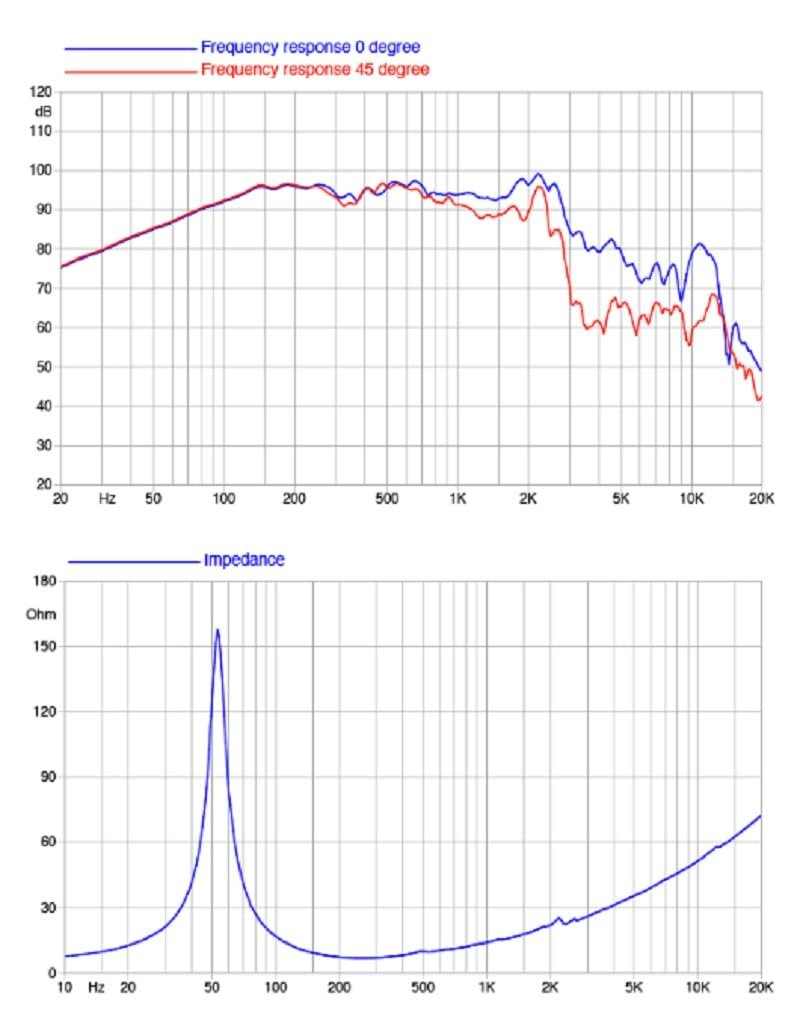

"TECHNICAL PARAMETERS || Nominal Impedance : 8 Ohm || Minimum Impedance : 7.1 Ohm || AES Power Handling (1) : 700 W || Maximum Power Handling (2) : 1400 W || Sensitivity (1W/1m) : 97 dB || Frequency Range : 55÷3150 Hz || Voice Coil Diameter : 100 mm (4 in) || Winding Material : Al || Former Material : Glass Fiber || "
"TECHNICAL PARAMETERS || Winding Depth : 22 mm (0.87 in) || Magnetic Gap Depth : 12 mm (0.47 in) || Flux Density : 1.3 T || Magnet : Neodymium Slug || Basket Material : Aluminum || Demodulation : No || Cone Surround (3) : M-Roll || NET Air Volume filled by Loudspeaker : 2.8 dm^3 (0.099 ft^3) || Spider Profile : 2x non-adjacent symmetrical constant height waves || "
"THIELE AND SMALL PARAMETERS || Fs : 55 Hz || Re : 5.5 Ohm || Qes : 0.28 || Qms : 9.4 || Qts : 0.27 || Vas : 38.6 dm^3 (1.36 ft^3) || Sd : 533 cm^2 (82.62 in^2) || Xmax (4) : 9.00 mm || Xdamage (5) : 16 mm || Mms : 86.0 g || Bl : 24.3 N/A || Le : 1.1 mH || Mmd : 72.1 g || Cms : 0.10 mm/N || Rms : 3.2 kg/s || Eta Zero : 2.25 % || EBP : 196 Hz || "
"Brand : FAITAL PRO || Model Number : 12HP1020-8 | 12HP1020 || UPC : 810130951161 || PART NUMBER (P/N) Push Terminals - 8 Ohm Version : 3003940 || NOTES || PATENTED IT 2006/000327 || (1) 2 Hours Test According to AES 2-1984 Rev. 2003 || (2) Maximum power is defined as 3dB greater than nominal power || (3) Treated Polycotton || (4) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3) || (5) Maximum excursion before permanent damage"
