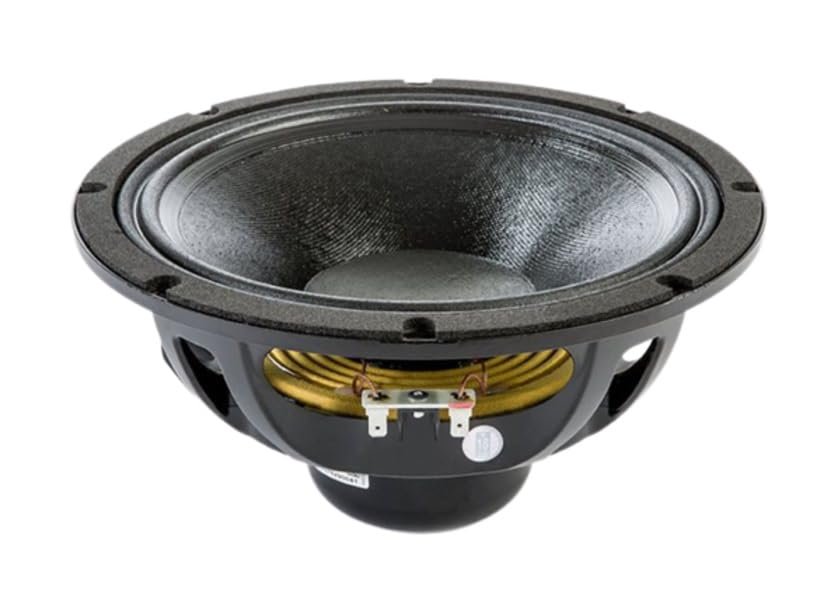

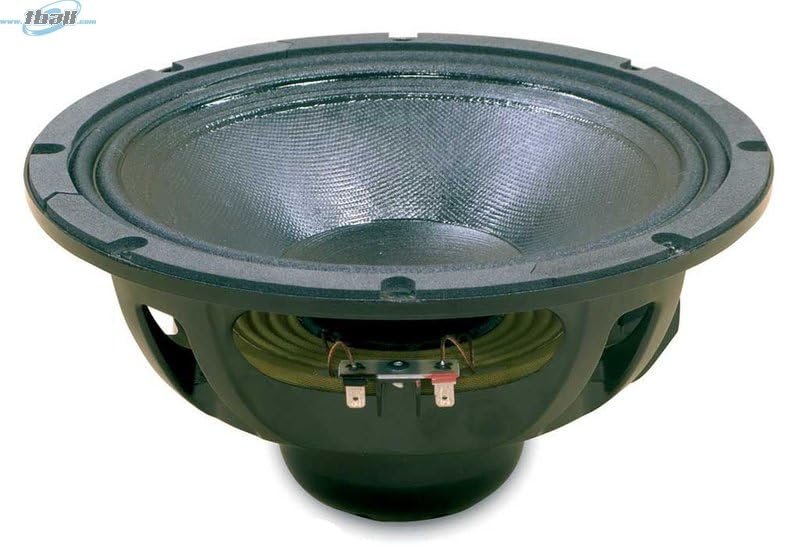

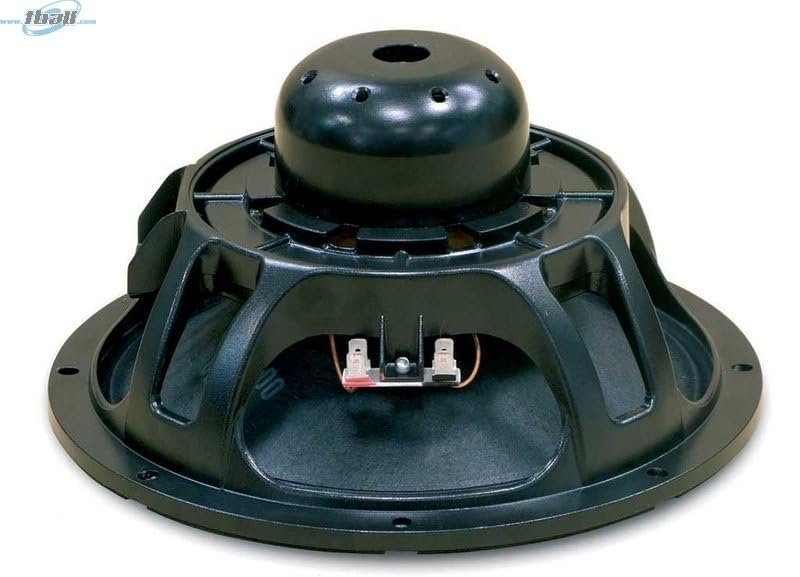

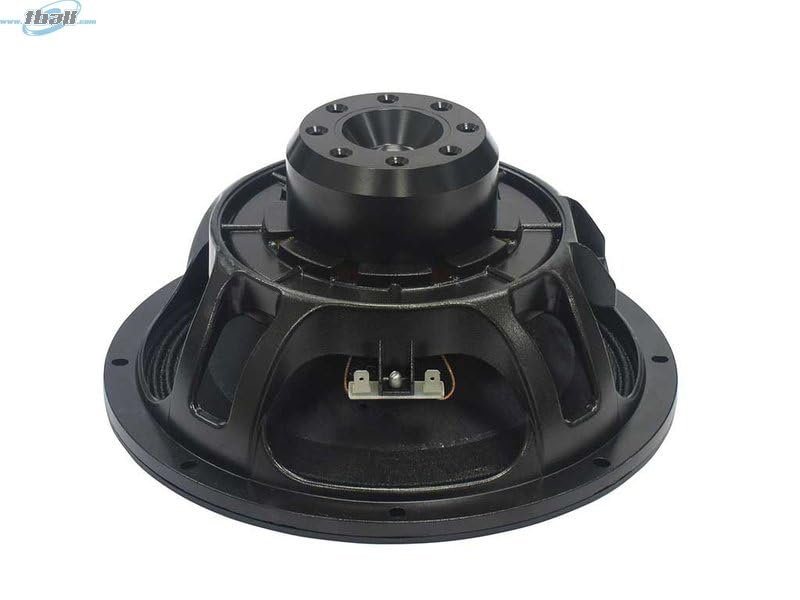

Eighteen Sound 10NW650-8 10-inch LF Neo Woofer 600-Watt Neodymium Transducer 8 Ohms with Weather Protected Cone and Coated Plates for Outdoor Usage Ultra Lightweight Design
- "* 96 dB SPL 1W / 1m average sensitivity * 65 mm (2.5 in) aluminum edgewound voice coil * 600 W program power handling * High excursion design for low frequency clarity and punch * Suitable for line array applications and multiway systems * LF Neodymium Transducer * Nominal Diameter 260 mm (10 in) * Rated Impedance 8 Ohm * AES Power 300 W * Peak Power 1200 W * Frequency Range 60 - 6000 Hz * Power Compression @-10dB 0.5 dB * Power Compression @-3dB 1.3 dB * Power Compression @@Full Power 2.3 dB"
- * Max Recomm.Frequency 1800 Hz * Recomm.Enclosure Volume 10 -40 It.(0.35 - 1.41 cul) * Minimum Impedance 6.0 Ohm at 25 DegreesC * Max Peak To Peak Excursion 25 mm (0.98 in) * Voice Coil Diameter 65 mm (2.5 in) * Voice Coil winding material Edgewound Aluminum * Suspension Double-roll.Polycoton * Cone Cqvilinear profile. water resistant. high damping * THIELE SMALL PARAMETERS * Fs 51 Hz * Re 5.0 Ohm * Sd 0.0346 sq.mt.(53.6 sq.in.) * Qms 8 * Qes 0.29 * Ots 0.28 * Vas 48 It (1.70 cuff.)
- "* Overall diameter 260 mm (10.24 in) * N.of mounting holes and bolt 8 * Mounting holes diameter 6.1 mm (0.24 in) * Bolt circle diameter 243.5 mm (9.59 in) * Front mount baffle cutout diameter 230 mm (9.06 in) * Rear mount baffle cutout diameter 231 mm (9.09 in) * Total depth 131.8 mm (5.19 in) * Flange and gasket thickness 9.8 mm (0.39 in) * Net weight 2.7 kg (5.95 Ib) * Shipping weight 3.15 kg (6.95 Ib) * CardBoard Packaging dimensions 275 x 275 x 170 mm (9.25 x 9.25 x 6.69 in)"
- The 10NW650 is a neodymium 10 inch size woofer. The transducer has been developed in response to a specific market requirement for a light weight design that combines excellent linearity with high power handling capabilities. The 10NW650 is primarily intended for use as a low frequency driver for line-arrays as well as high quality 2-way or multiway reflex enclosures. The low pass filter might be positioned as high as 2000Hz.
- The high grade neodymium magnet assembly assures high flux concentration and low power compression. The levels of force factor and power handling are, as a consequence, at the upper professional level with best power to weight ratio. The voice coil is cooled through airways placed between the chassis back plate and the magnet faceplate and carefully designed ventilation ducts made into the metal back plate. The curvilinear paper cone is formed using a special high strength wood pulp
