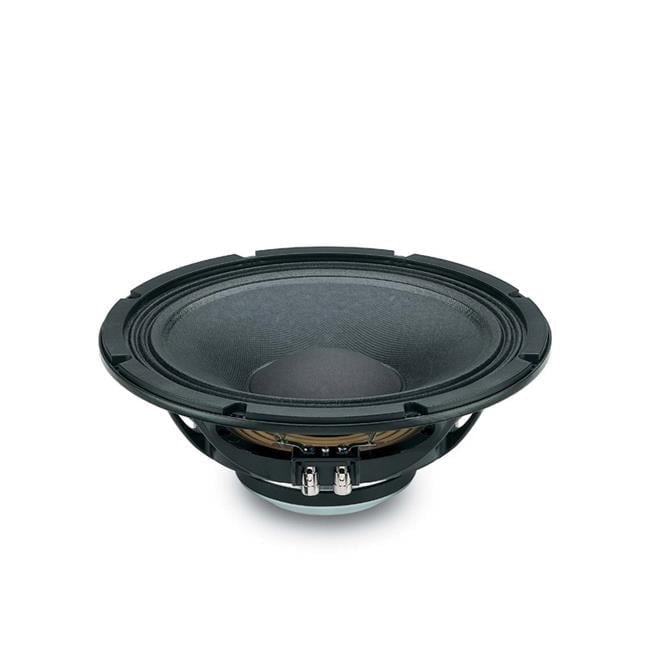

Eighteen Sound 12ND610-8 High Power Midbass 12-inch Woofer 8-Ohm with Neodymium MagnetHIGHLIGHT : Nominal Diameter: 300mm (12 in) || * Rated Impedance: 8 Ohm || * AES Power: 450W || * Program Power: 700W || * Peak Power: 1500W || * Sensitivity: 102dB || * Frequency Range: 80 - 5500 Hz || * Power Compression @-10dB: 0.7 dB || * Power Compression @-3dB: 1.9 dB || * Power Compression @Full Power: 2.4 dB || * Max Recomm. Frequency: 2000 Hz || * Recomm.Enclosure Volume: 8 - 40 lt.(0,28 - 1.41 cuft) ||* Minimum Impedance: 4.2 Ohm at 25 DegreesC || * Max Peak To Peak Excursion: 23 mm (0.91 in) || * Voice Coil Diameter: 75 mm (3 in) || * Voice Coil winding material: aluminum || * Suspension: Triple roll, polycotton || Cone: Curvilinear, Paper || Magnet Material : Neo || Woofer Cone Treatment : Weather protected || Recommended Enclosure : 25.0 dm3 (0.88 ft3) || Recommended Tuning : 50 Hz ||"MOUNTING AND SHIPPING INFO || Overall Diameter : 315 mm (12.4 in) || Bolt Circle Diameter : 296 mm (11.65 in) || Baffle Cutout Diameter : 282.0 mm (11.1 in) || Depth : 124 mm (4.88 in) || Flange and Gasket Thickness : 11 mm (0.43 in) || Net Weight : 3.9 kg (8.6 lb) || Shipping Weight : 4.6 kg (10.14 lb) || Shipping Box : 332 x 332 x 184 mm (13.07x13.07x7.24 in) || "The 12ND610 is an extremely high output neodymium mid-bass transducer perfect for high quality professional systems. It has been designed for midrange & midbass frequency reproduction in horn-loaded, as well as bass-reflex compact enclosures. The transducer's extremely powerful neodymium magnet assembly assures high flux concentration, low power compression and excellent heat exchange. The levels of force factor & power handling result in the best power to weight ratio on the market today.12ND610 curvilinear paper cone has been designed by 18 Sound engineers with a special high-strength wood pulp to achieve the best possible linearity within its intended frequency range & to control bell-mode resonances around the cone circumference. Its cone is capable of carrying significant loadings thanks to a dedicated reinforcing treatment. The cone is carried by a multiroll suspension built from a linen-like material which is more resistant to aging & fatigue than traditional materials.
