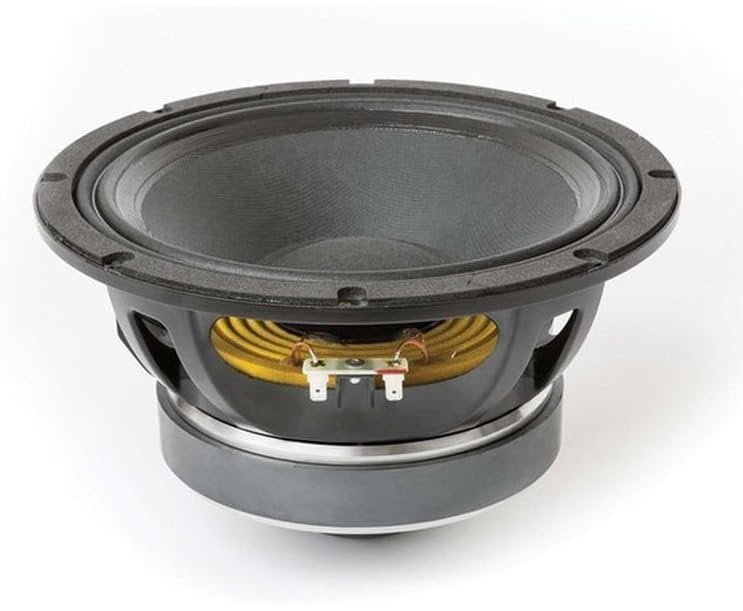

Eighteen Sound 18 10CX650-8 10-inch Coaxial Transducer Designed for Use in Compact Reflex Enclosures and Stage Monitors 8 Ohms 400W LF - 140W HF Maximum Program Power
"HIGHLIGHT : * Nominal Diameter: 260 mm (10.24 in) || * Nominal Impedance: 8 Ohms || * Minimum Impedance LF: 6.1 O || * Frequency Range: 60 - 4800 Hz || * Dispersion Angle: 90 degrees || * Woofer Cone Treatment: Humidity repellent || "
"FEATURES : * 94.0 dB LF/106.5 dB HF SPL 1W/1m average sensitivity || * Single magnet motor || * 400W LF - 140W HF maximum program power handling || * 65 mm (2.5”) LF voice coil || * 44 mm (1.75”) HF PEN diaphragm || * Proprietary Phase Plug design || * HF copper sleeve for reduced distortion and higher output || * 90 degrees nominal conical dispersion || * Atmos ready* || * Extended LF design || * Suitable for very compact enclosures and stage monitors || "
"MOUNTING AND SHIPPING INFO || * Overall Diameter : 260 mm (10.24 in) || * Bolt Circle Diameter : 243 mm (9.57 in) || * Baffle Cutout Diameter : 230 mm (9.06 in) || * Depth : 155 mm (6.1 in) || * Flange and Gasket Thickness : 8 mm (0.31 in) || * Net Weight : 6.2 kg (13.67 lb) || * Shipping Weight : 6.8 kg (14.99 lb) || * Shipping Box : 275x275x195 mm (10.83x10.83x7.68 in) || "
"SPECIFICATIONS HF UNIT || * HF Sensitivity5 : 106.5 dB || * HF Nominal Power Handling6 : 70 W || * HF Continuous Power Handling7 : 140 W || * HF Voice Coil Diameter : 44 mm (1.75 in) || * HF Winding Material : Edge wound Aluminum || * Diaphragm Material : PEN || * Recommended Crossover8 : 1.6 kHz || "
"SPECIFICATIONS LF UNIT * LF Sensitivity2 : 94.0 dB || * LF Nominal Power Handling3 : 200 W || * LF Continuous Power Handling4 : 400 W || * LF Voice Coil Diameter : 65 mm (2.5 in) || * LF Winding Material : Edgewound copper || "
