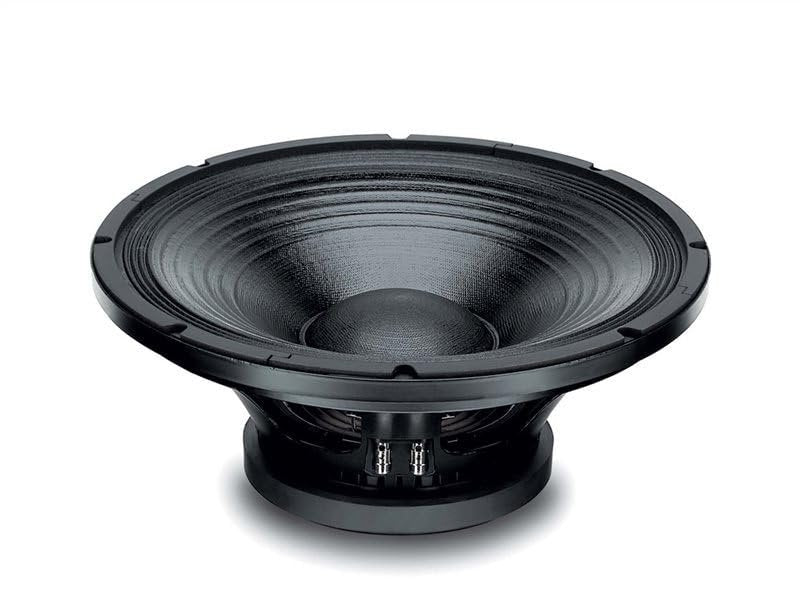

Eighteen Sound 18 Sound 15MB700-8 15-inch Very High Output Mid-Bass Transducer with Exceptional Efficiency 400-Watt RMS 600-Watt Peak
- "HIGHLIGHTS || 103 dB SPL 1W / 1m average sensitivity || * 75 mm (3 in) Interleaved Sandwich Voice coil (ISV) || * 400 W AES power handling || * Excellent transient response || * Additional cone damping treatment || * Improved heat dissipation via unique basket design || * Suitable for compact two way, multiway and horn loaded midbass applications ||"
- "SPECIFICATIONS || Nominal Diameter : 380 mm ( in) || Nominal Impedance : 8 Ω || Minimum Impedance : 5.9 Ω || Nominal Power Handling : 400 W || Continuous Power Handling : 600 W || Sensitivity : 103.0 dB || Frequency Range : 45 - 4300 Hz || Voice Coil Diameter : 75 mm (3.0 in) || Winding Material : aluminum || "
- MOUNTING AND SHIPPING INFO || || Overall Diameter :: 387 mm (15.24 in) || || Bolt Circle Diameter :: 370 mm (14.57 in) || || Baffle Cutout Diameter :: 353.0 mm (13.9 in) || || Depth :: 167 mm (6.57 in) || || Flange and Gasket Thickness :: 19 mm (0.75 in) || || Net Weight :: 8.3 kg (18.3 lb) || || Shipping Weight :: 9.4 kg (20.72 lb) || || Shipping Box :: 405 x 405 x 214 mm (15.94x15.94x8.43 in) ||
- The 15MB700 very high output mid-bass transducer shows exceptional efficiency and is primarily intended for 2-way very compact reflex systems (75 lt.), 3-way systems and horn loaded applications. It combines high sensitivity (103 dB 1W/1m) with a high power handling capability. The smooth textured curvilinear paper cone, in conjunction with the viscose dampened multiroll suspension, provides excellent cone dampening and excursion control.
- The 75 mm diameter aluminum voice coil features the same technology fitted to our top-of-the-range 4-in voice-coil models. It employs Interleaved Sandwich Voice coil (ISV) technology, in which a high strength fiberglas former carries windings on both the outer and inner surfaces to achieve a mass balanced coil. This results in an
