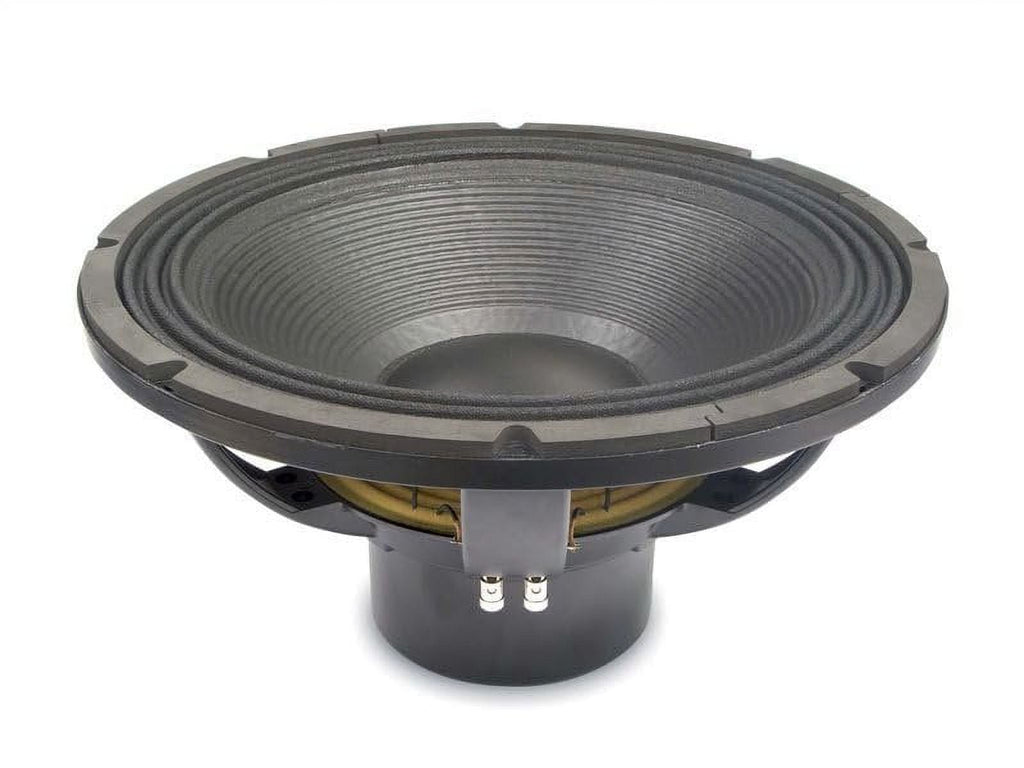

Eighteen Sound 18NLW9601-4 18-inch 4Ohm Woofer Extended Low Frequency Neodymium High Performance Transducer 1800 Watts RMS 3600 Watts PeakHIGHLIGHTS || 96 dB SPL 1W / 1m average sensitivity || * 135 mm (5.3 in) split winding four layers ISV aluminum voice coil || * 3600 W program power handling || * Carbon fiber reinforced cellulose cone || * Double Silicon Spider (DSS) for improved excursion control || * Aluminum demodulating ring (SDR) for lower distortion || * High force neodymium magnet assembly || * Weather protected cone and plates for outdoor usage ||"SPECIFICATIONS || Nominal Diameter : 462 mm ( in) Nominal Impedance : 4 Ω Minimum Impedance : 3.6 Ω Nominal Power Handling1 : 1800 W Continuous Power Handling2 : 3600 W Sensitivity3 : 96.0 dB Frequency Range : 30 - 2300 Hz Voice Coil Diameter : 135 mm (5.3 in) Winding Material : aluminum""MOUNTING AND SHIPPING INFO || Overall Diameter : 462 mm (18.19 in) || Bolt Circle Diameter : 440 mm (17.32 in) || Baffle Cutout Diameter : 416.0 mm ( in) || Depth : 236 mm (9.29 in) || Flange and Gasket Thickness : 26 mm (1.02 in) || Net Weight : 12.8 kg (28.22 lb) || Shipping Weight : 14.3 kg (31.53 lb) || Shipping Box : 482x482x257 mm (18.98x18.98x10.12 in) || "The 18NLW9601 is an extended low frequency 18 inch neodymium high performance transducer. It is the evolution of the industry standard 18NLW9600. The loudspeaker has been designed for use as a subwoofer component, in either a reflex, bandpass or horn loaded high SPL demanding applications. For optimum results recommended amplifier should be able to deliver 3600 Watt program power. 18NLW9601 being able to control the moving mass with high linearity.The state-of-the-art 5,3" diameter ISV copper clad aluminum wire CCAW voice coil shows a inside-outside split winding, four layers design, enabling the 18NLW9601 to handle up to 3600W program power. Bl force factor, as well as all other electro-dynamic parameters, are linear within the working range. The 18NLW9601 has been developed after intense FEA and fluidodynamics simulation and testing, focusing on dissipating the heat generated by the powerful voice coil.
