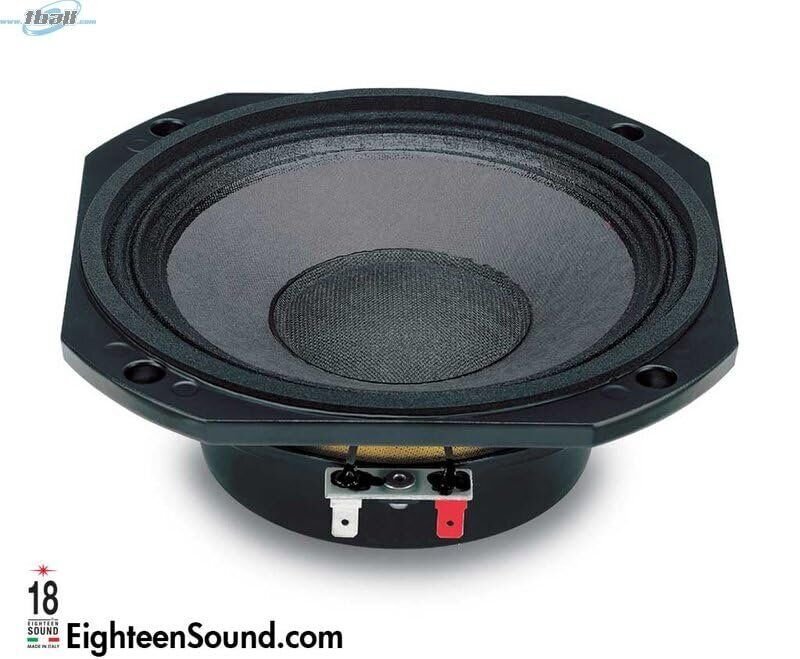

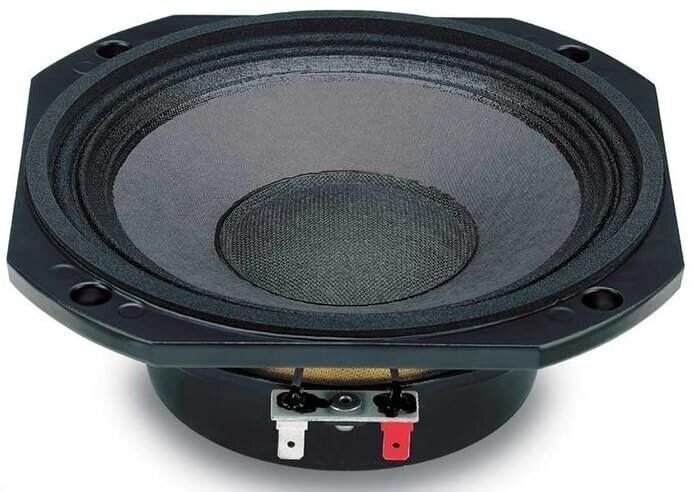

Eighteen Sound 6NMB420-8 6-inch High Output MB Neodymium Transducer 8-Ohms 260 Watts RMS 500 Watts Peak Pro Audio Components Speakers Drivers Used for Motorcycle Car Audio Applications
- "HIGHLIGHT : * 100 dB SPL 1W / lm average sensitivity || * 44 mm (1 3/4 in) voice coil || * 200 W AES power handling || * External neodymium magnet assembly || * Single Demodulating Ring (SDR) for lower distortion || * Weather protected cone and plates for outdoor usage || * Improved heat dissipation via Active Cooling System || * Specially designed for line arrays and compact two way systems || "
- "HIGHLIGHT : * Nominal Diameter 152mm (6 in) || * Rated Impedance 8 Ohm || * AES Power 200 W || * Program Power 260 W || * Peak Power 500 W || * Sensitivity 100 dB || * Frequency Range 200 - 7000 Hz || * Power Compression @-10dB 0.9 dB || * Power Compression @-3dB 1.6 dB || * Power Compression @@Full Power 2.9 dB || "
- "HIGHLIGHT : * Max Recomm.Frequency 3500 Hz || * Recomm.Enclosure Volume 2 - 6 It.(0.07 - 0.21 cuft) || * Minimum Impedance 6.2 Ohm at 25 DegreesC || * Max Peak To Peak Excursion 14 mm (0.55 in) || * Voice Coil winding material aluminum || * Suspension Triple Roll.Polycotton || * Cone Curvilinear.Paper || "
- MOUNTING AND SHIPPING INFO || || Overall Diameter :: 162 mm (6.38 in) || || Bolt Circle Diameter :: 170 mm (6.69 in) || || Baffle Cutout Diameter :: 148.0 mm (5.83 in) || || Depth :: 73 mm (2.87 in) || || Flange and Gasket Thickness :: 11 mm (0.43 in) || || Net Weight :: 1.25 kg (2.76 lb) || || Shipping Weight :: 1.45 kg (3.2 lb) || || Shipping Box :: 185x170x85 mm (7.28x6.69x3.35 in) ||
- The 6NMB420 is a 44mm voice coil 6.5 inch neodymium midbass transducer designed for mid low frequency reproduction in system designs where high intelligibility is required. Compared to our 6ND410 state-of-the-art midrange transducer, 6NMB420 offers a lower frequency resonance and a longer linear . As a result the speaker shows an increased output around 250Hz with a consequent slightly reduced output above 700Hz. It is suitable as mid-bass in line array systems or multiple way systems
