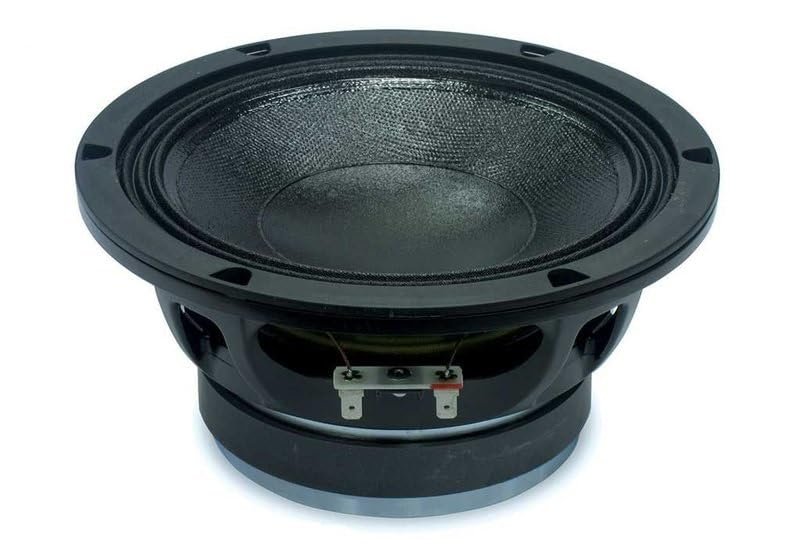

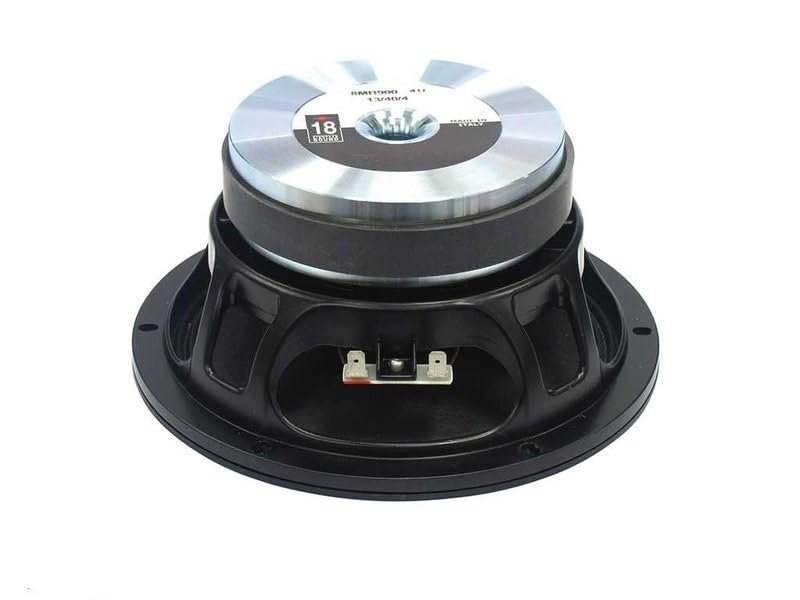

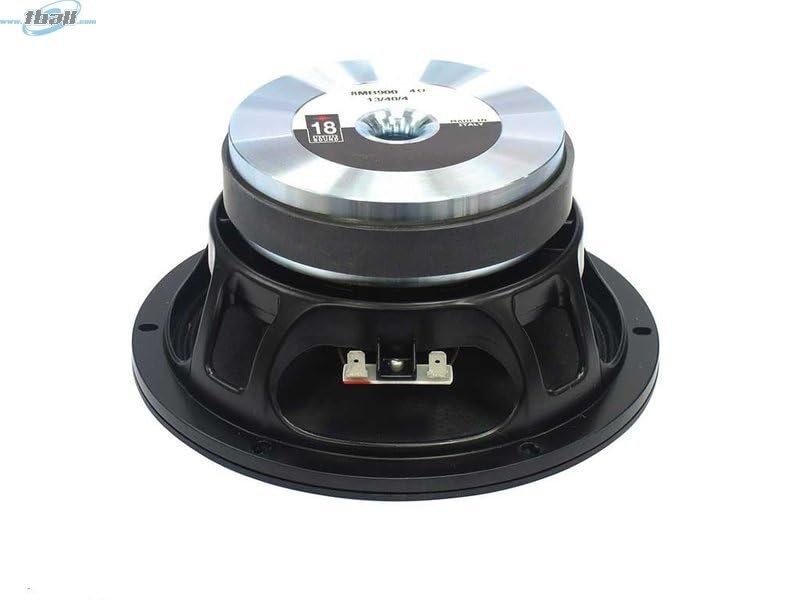

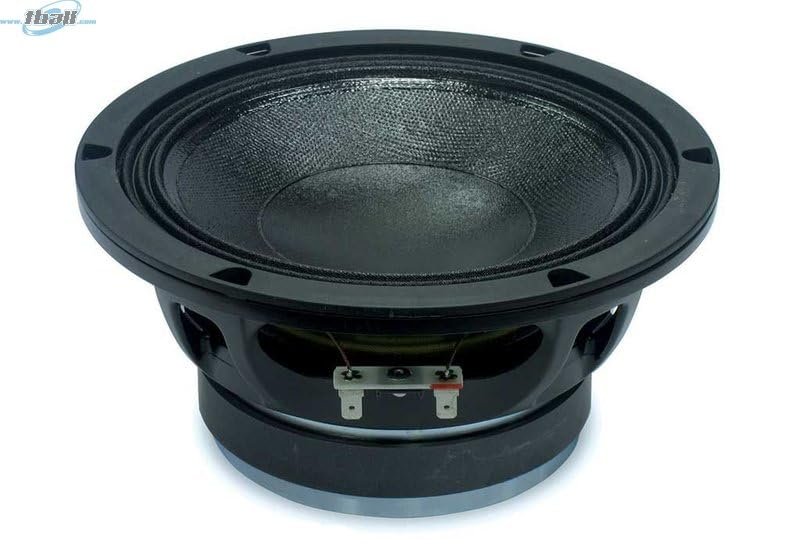

Eighteen Sound 8MB500-8 18sound 8 Mid Bass/8ohm/400w
- "SPECIFICATIONS || * Conforms to PowersoftTM iPal standards || * 94.2 dB SPL 1W / 1m average sensitivity || * 135mm (5.3-in) split winding. four layer ISV aluminum voice coil || * 3600 W program power handling || * Triple Silicon Spider (TSS) for improved excursion control || * Aluminum demodulating ring (SDR) for lower distortion || * Nominal Diameter 200 mm (8 in) || * Rated Impedance 8 Ohm || * AES Power 280 W || * Program Power 400 W || * Peak Power 800 W || "
- "SPECIFICATIONS || * Sensitivity 95 dB || * Frequency Range 60 - 4500 Hz * Power Compression @-10dB 0.5 dB || * Power Compression @-3dB 1.4 dB || * Power Compression @@Full Power 2.3 dB || * Max Recomm. Frequency 3000 Hz || * Recomm. Enclosure Volume 10 -40 It. || (0.35 - 1.41 cuff) || * Minimum Impedance 5.8 Ohm at 25 DegreesC || * Max Peak To Peak Excursion 19 mm (0.75 in) * Voice Coil Diameter 51 mm (2 in) || * Voice Coil winding material aluminum || "
- "SPECIFICATIONS : * Voice Coil winding material aluminum * Suspension Triple-roll. || Polycoton * Cone Curvilinear. Treated cellulose || * THIELE SMALL PARAMETERS * Fs 74 Hz || * Re 5.1 Ohm || * Sd 0.023 sq.mt. (35.65 sq.in.) || * Qms 2.66 || * Qes 0.51 || * Qts 0.43 * Vas 21.5 It. (0.76 cult) || * Mms 17 gr. (0.04 lb) || * 131 9.0 Tm || * Linear Mathematical Xmax +/- 6 mm (+/- 0.24 in) || * Le (1kHz) 0.60 mH || * Ref. Efficiency 1 W@1 m (half space) 94.4 dB || "
- "SPECIFICATIONS : * Overall diameter 210 mm (8.27 in) || * N.of mounting holes and bolt 6 || * Mounting holes diameter : 0.23 in || * Bolt circle diameter : 7.68 - 7.80 in || * Front mount baffle cutout diameter : 7.32 in || * Rear mount baffle cutout diameter : 724 in || * Total depth : 3.92 in || * Flange and gasket thickness 14.5 mm (0.57 in) || * Net weight 3.4 kg (7.5 lb) * Shipping weight 3.72 kg (8.22 lb) || * CardBoard Packaging dimensions : 9.25 x 9.25 x 5.91 in || "
- The 8M400 is a high power, high output, 200mm(8in) mid-range for high level professional use. The excellent sound quality has been achieved as a result of extensive research on mid frequencies intelligibility. The 8M400 has been designed for use as a midrange in both horn and direct radiation,closer or reflex enclosures, as small as 3 lt. The curvilinear cone,made w/a high damping wood pulp, has been designed to achieve the best possible linearity within its frequency range. ||
