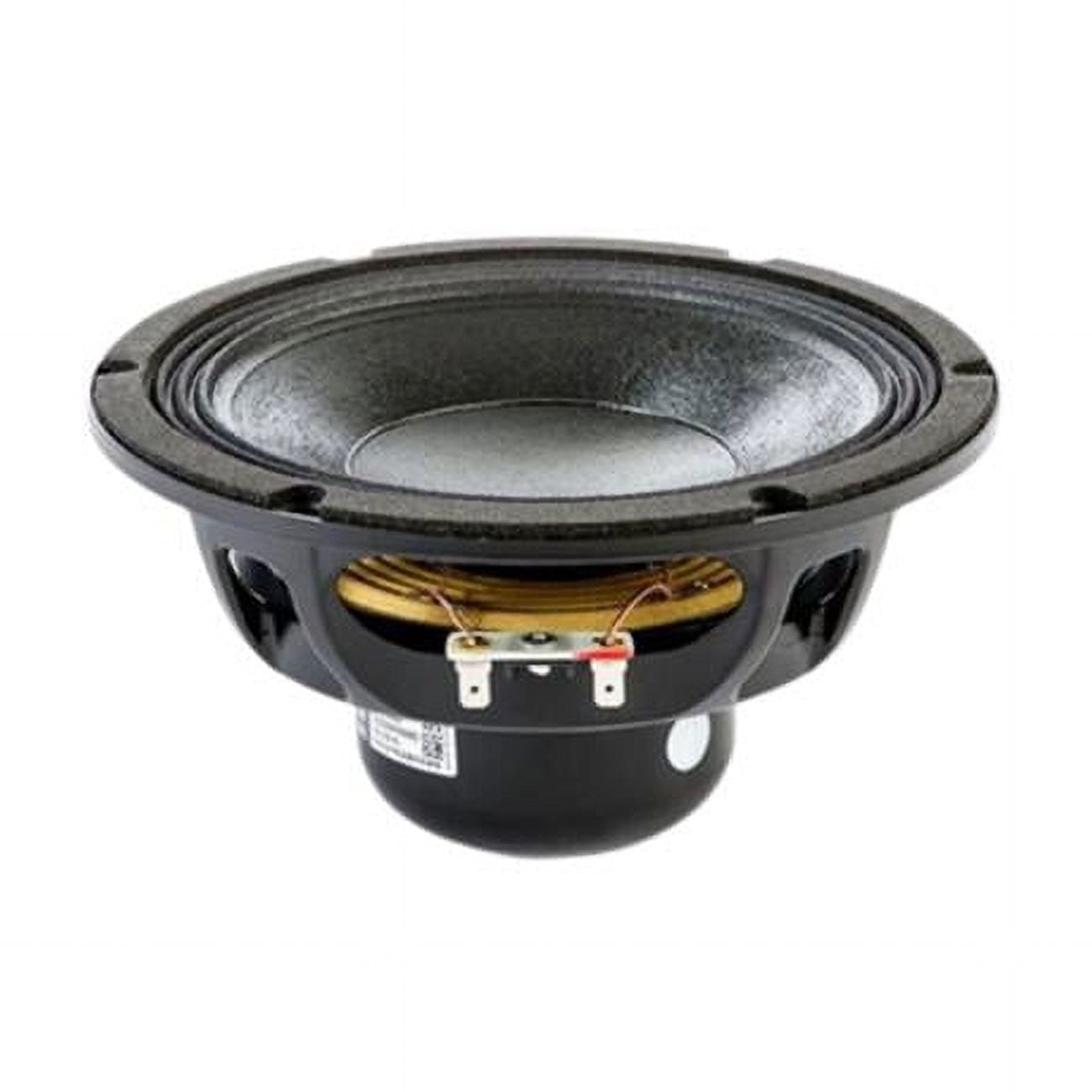

Eighteen Sound 8NW650-8 18 Sound 8 Mid Bass NeoHIGHLIGHT :: 96 dB SPL 1W / 1m average sensitivity || 65 mm (2.5 in) aluminum edgewound voice coil || 600 W program power handling || High excursion design for low frequency clarity and punch || Weather protected cone and coated plates for outdoor usage || Ultra lightweight design || Suitable for line array applications and multiway systems ||"SPECIFICATIONS || Nominal Diameter : 200 mm || Nominal Impedance : 8 Ω || Minimum Impedance : 6.3 Ω || Nominal Power Handling1 : 300 W || Continuous Power Handling2 : 600 W || Sensitivity3 : 96.0 dB || Frequency Range : 55 - 6300 Hz || Voice Coil Diameter : 65 mm (2.5 in) || Winding Material : aluminum || "" MOUNTING AND SHIPPING INFO || || Overall Diameter :: 210 mm (8.27 in) || || Bolt Circle Diameter :: 195 mm (7.68 in) || || Baffle Cutout Diameter :: 185.0 mm (7.28 in) || || Depth :: 111 mm (4.37 in) || || Flange and Gasket Thickness :: 8 mm (0.31 in) || || Net Weight :: 2.4 kg (5.29 lb) || || Shipping Weight :: 2.7 kg ( lb) || || Shipping Box :: 235 x 235 x 150 mm (9.25x9.25x5.91 in) || "The 8NW650 is a 8 inch neodymium woofer. The transducer has been developed in response to a specific market requirement for a light weight design that combines excellent linearity with high power handling capabilities. The 8NW650 is primarily intended for use as a low frequency driver for line-arrays as well as high quality 2-way or multiway reflex enclosures.The levels of force factor and power handling are, as a consequence, at the upper professional level with best power to weight ratio. The 65mm Ø edgewound aluminum wire voice coil is wound on a high strength fiberglas former. The voice coil is cooled through airways placed between the chassis back plate and the magnet faceplate and carefully designed ventilation ducts made into the metal back plate.
