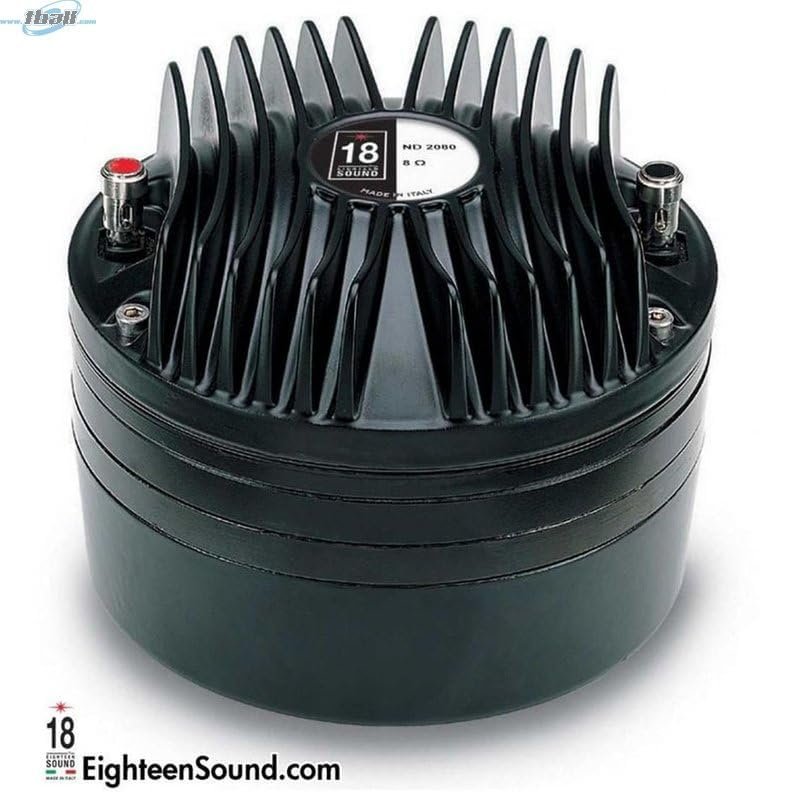

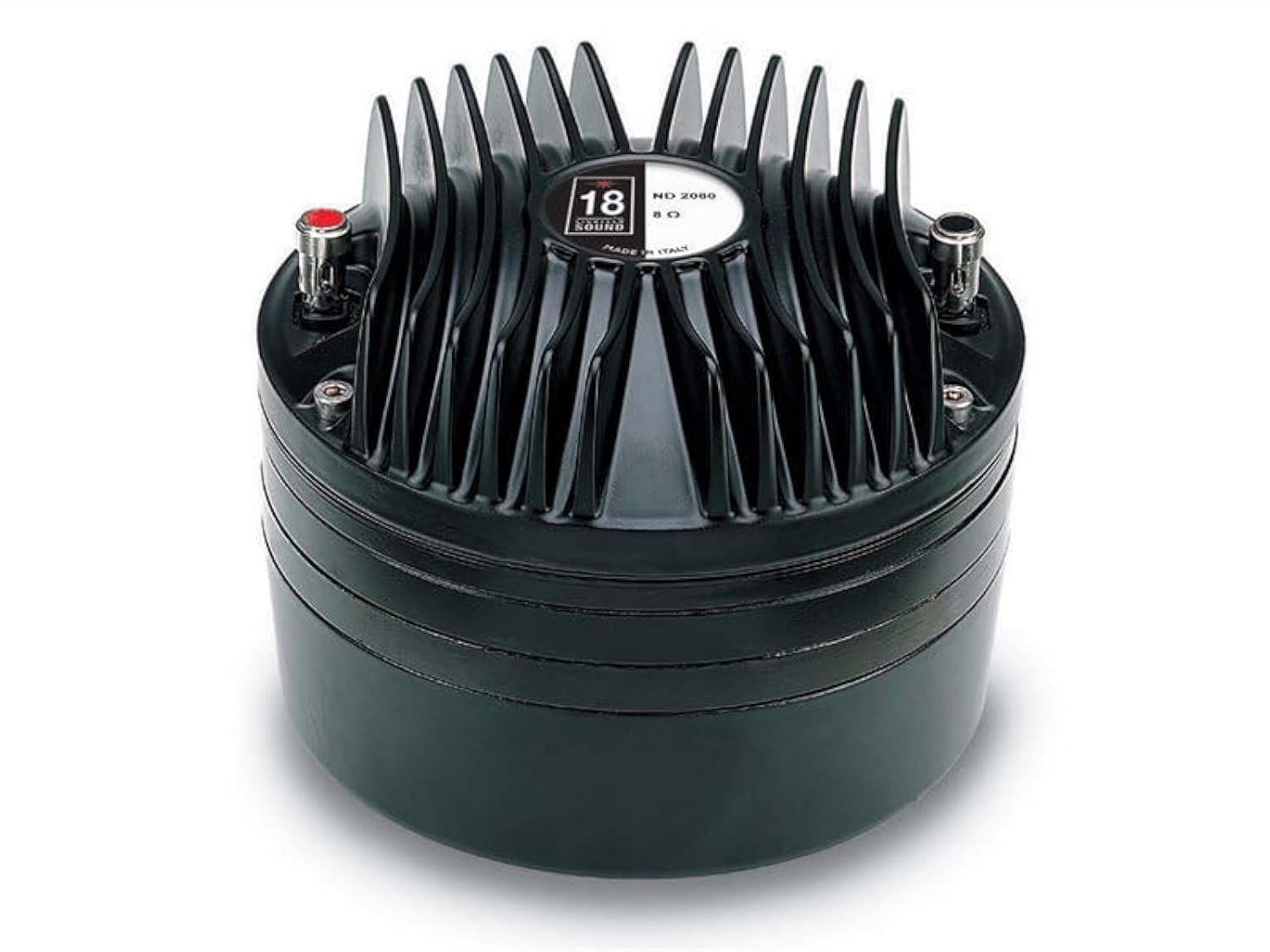

Eighteen Sound ND2080-8 HF Driver Neodymium with 2 inch Exit Throat 100 Watt RMS 200 Watt Peak 8 Ohms Pro Audio Components Speakers Drivers for Motorcycle Car Audio Applications
- FEATURES :: 110 dB SPL 1W / 1m average sensitivity || 2 inch exit throat || 3 inch edgewound aluminum voice coil || 200 W program power handling || Pure Titanium diaphragm assembly || Neodymium ring magnetic structure || Excellent thermal exchange || 16 Ohm version available ||
- "SPECIFICATIONS || Throat Diameter :: 50 mm (2.0 in) || Nominal Impedance :: 8 Ω || Minimum Impedance :: 8.0 Ω || Nominal Power Handling :: 100 W || Continuous power handling :: 200 W || Sensitivity (1W/1m) :: 110.0 dB || "
- SPECIFICATIONS || Frequency Range :: 0.5 - 20.0 kHz || Recommended Crossover :: 0.8 kHz || Voice Coil Diameter :: 75 mm (3.0 in) || Winding Material :: Aluminum || Diaphragm Material :: Titanium || Magnetic Material :: Neodymium || Flux Density :: 2.2 T ||
- MOUNTING AND SHIPPING INFO :: Overall Diameter :: 131 mm (5.16 in) || Depth :: 99 mm (3.9 in) || Net Weight :: 3.4 kg (7.05 lb) || Shipping Weight :: 3.5 kg (7.72 lb) || Shipping Box :: 132x132x103 mm (5.20x5.20x4.06 in)
- The ND2080 2-inch exit high frequency compression driver has been designed for high quality sound systems application. The titanium diaphragm is produced in house & has been developed to assure unmatched transient response. The diaphragm assembly is made by joining the former directly to the titanium dome on its upper bend edge. In comparison w/ a usual straight former joint, the driver design assures extended frequency energy transfer for improved response linearity & unparallel reliability.
