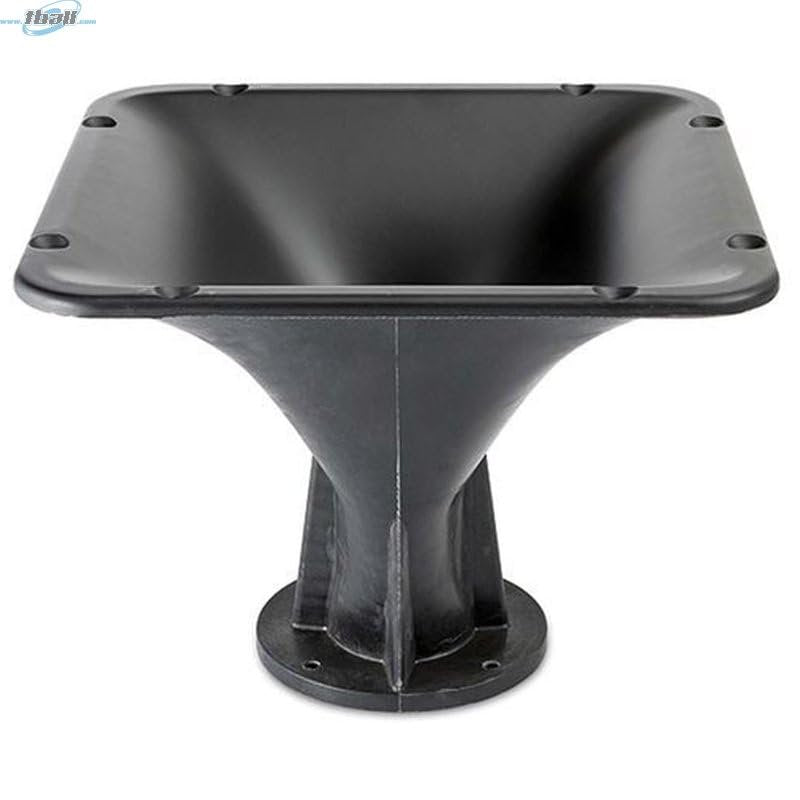

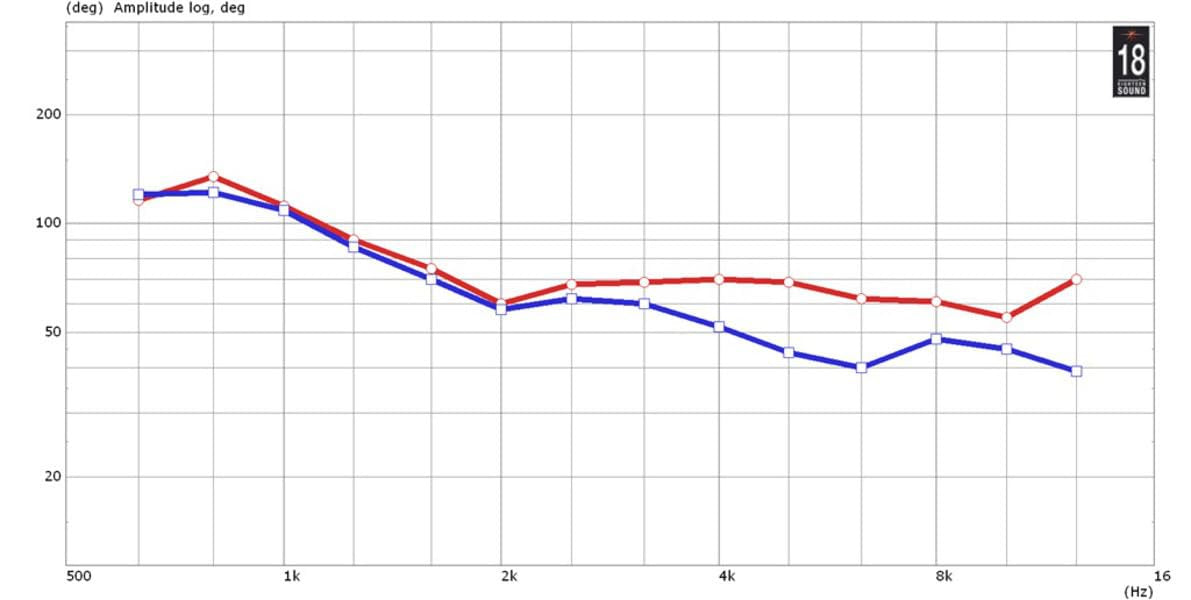

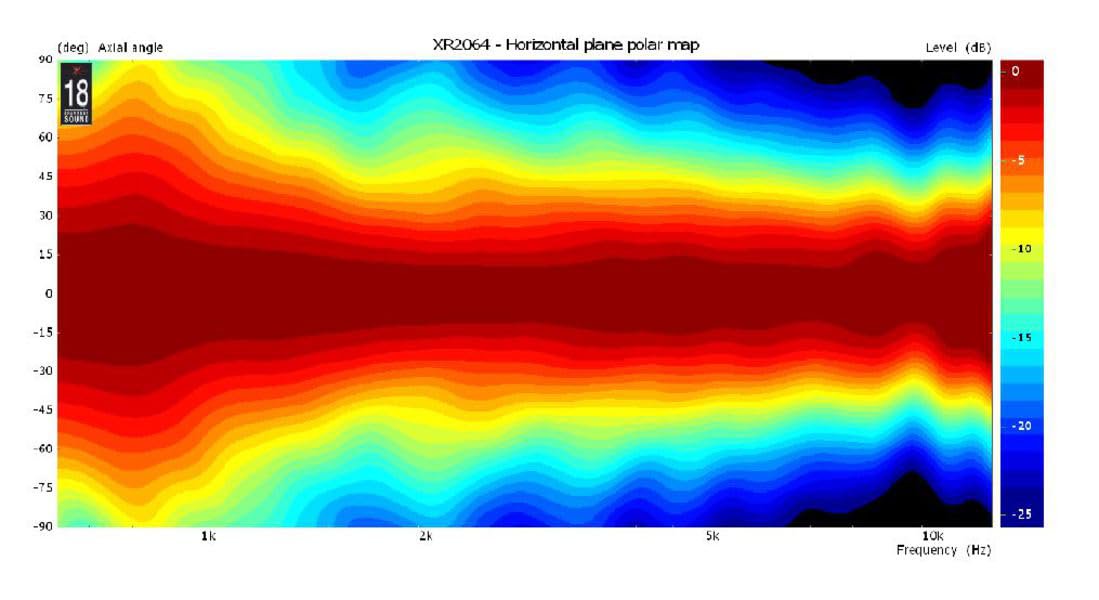

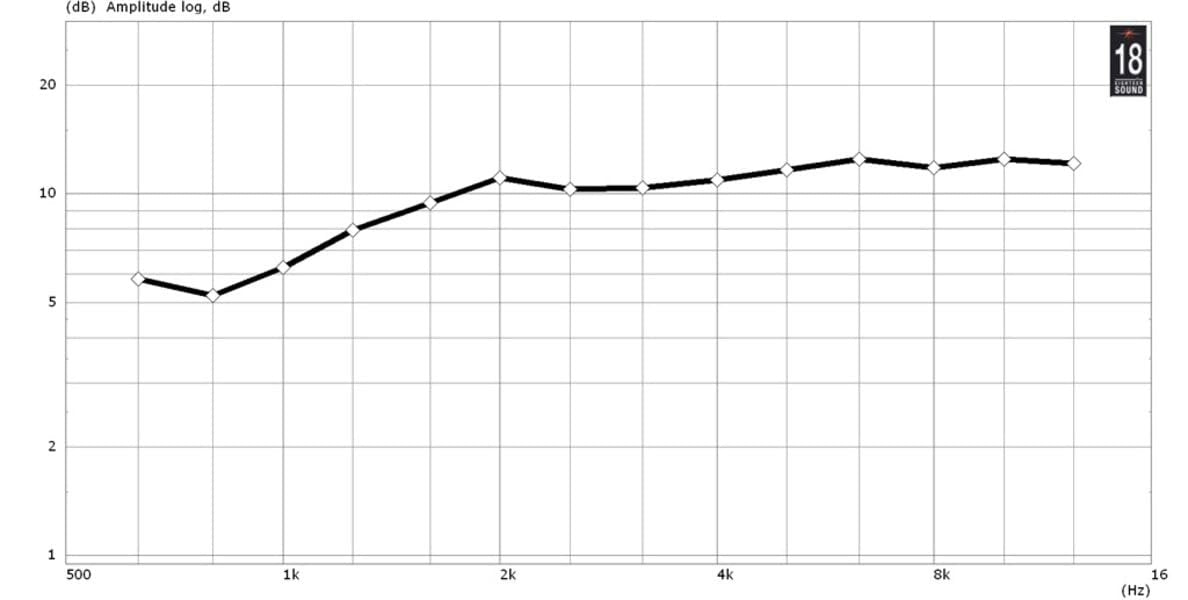

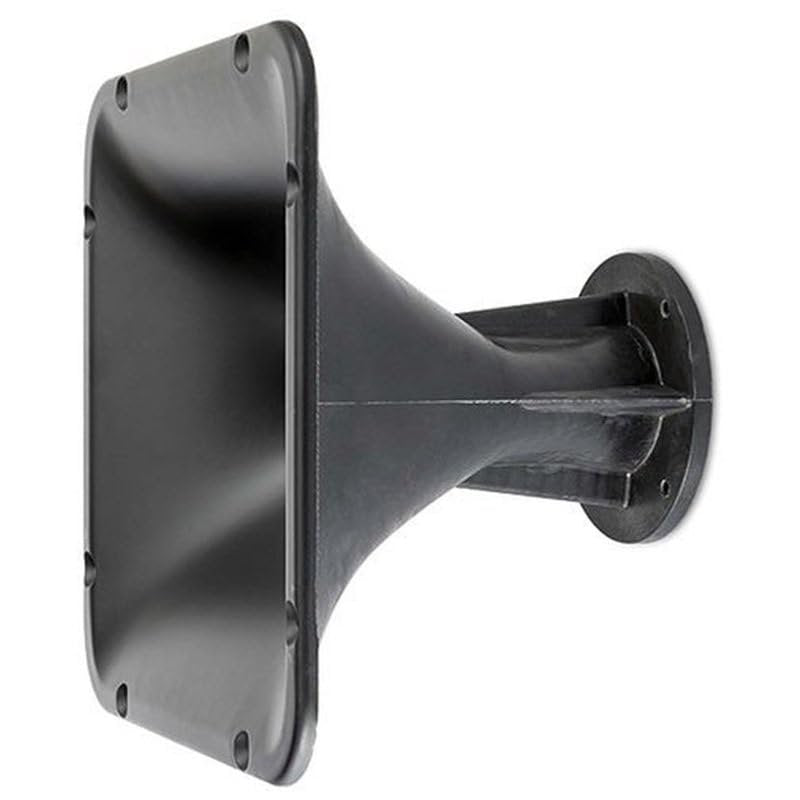

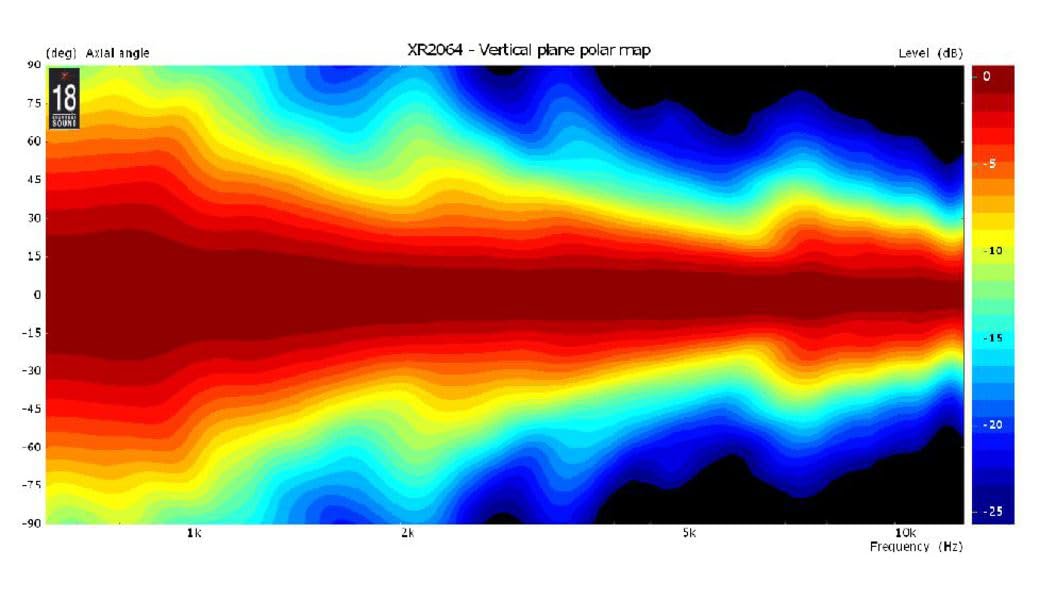

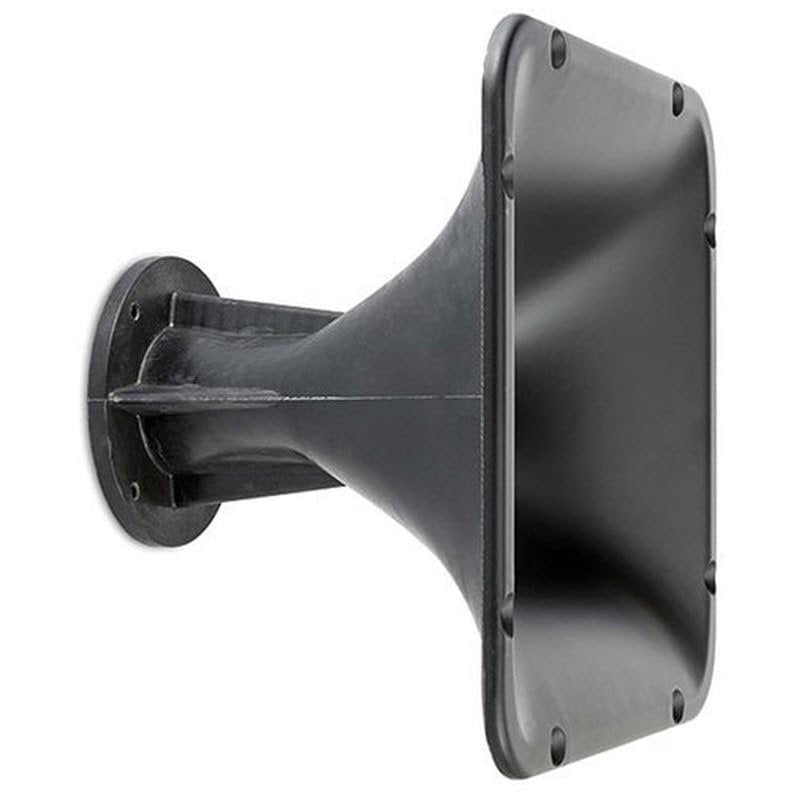

Eighteen Sound XR2064 2-inch Throat Entry Horn Flare 60° x 40° Horizontal & Vertical Constant Coverage HF HornKey Features :: 2 inch throat entry || High damping composite structure / Uniform on-axis and off-axis frequency response || 60° x 40° horizontal and vertical constant coverage || Very low distortion at high sound pressure || Optimized weight thanks to composite material structure ||Specifications :: Throat Diameter : 50 mm (2 in) || Horizontal Coverage (-6dB) : 60° (10 ÷ -6) average range (1,6kHz - 12,5kHz) || Vertical Coverage (-6 dB) : 40° (30 ÷ 0) average range (1,6kHz - 12,5kHz) || Directivity Index : 11 dB (1.8 ÷ - 2.6) average range (1,6kHz - 12,5kHz) || Usable Frequency Range : Above 800 Hz || Recomm. Cross.Frequency : 800 Hz or more || Sensitivity || Frequency Range : 800 Hz - 18KHz || Material : Composite material ||Mounting information :: Mouth Height : 270 mm (10,6 in) || Mouth Width : 270 mm (10,6 in) || Depth : 200 mm (7,9 in) || Mouth Mounting Dimensions : 8 ø 6 holes || Net weight : 1.6 Kg (3.52 lb) || Shipping weight : 2.16 Kg (4.76 lb) ||Description :: The XR2064 is a constant directivity 2 inch horn. The XR2064C has been developed to reach the optimum performance when coupled to 2 inch exit Eighteen Sound high frequency compression drivers.All XR series horns have been designed in order to reach smooth driver frequency response, to maintain constant coverage & directivity & eliminating the midrange narrowing & high frequency beaming problems common of many similar horns on the market. XR2064C horn maintains nominal 60° Horizontal x 40° Vertical pattern control. It provides consistent on-axis & off-axis frequency response from 1.2kHz to 16kHz in both horizontal & vertical planes. Horn directivity is constant down to 1.2kHz
