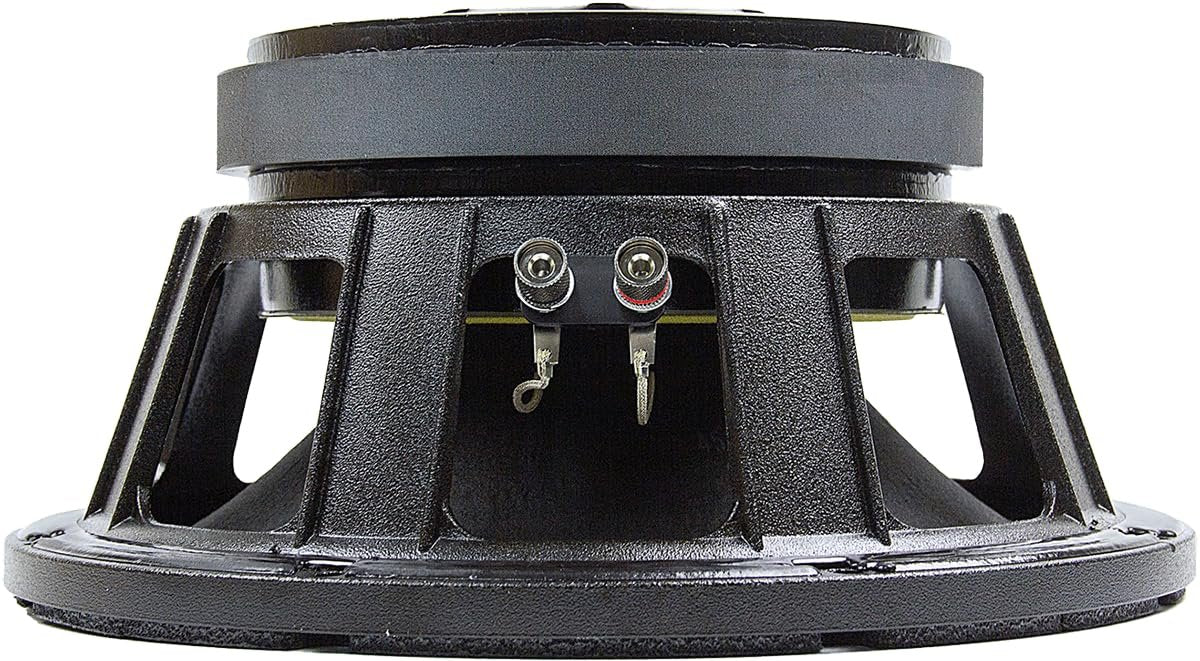

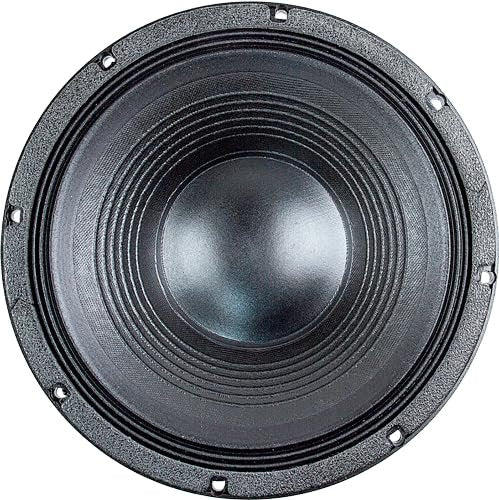

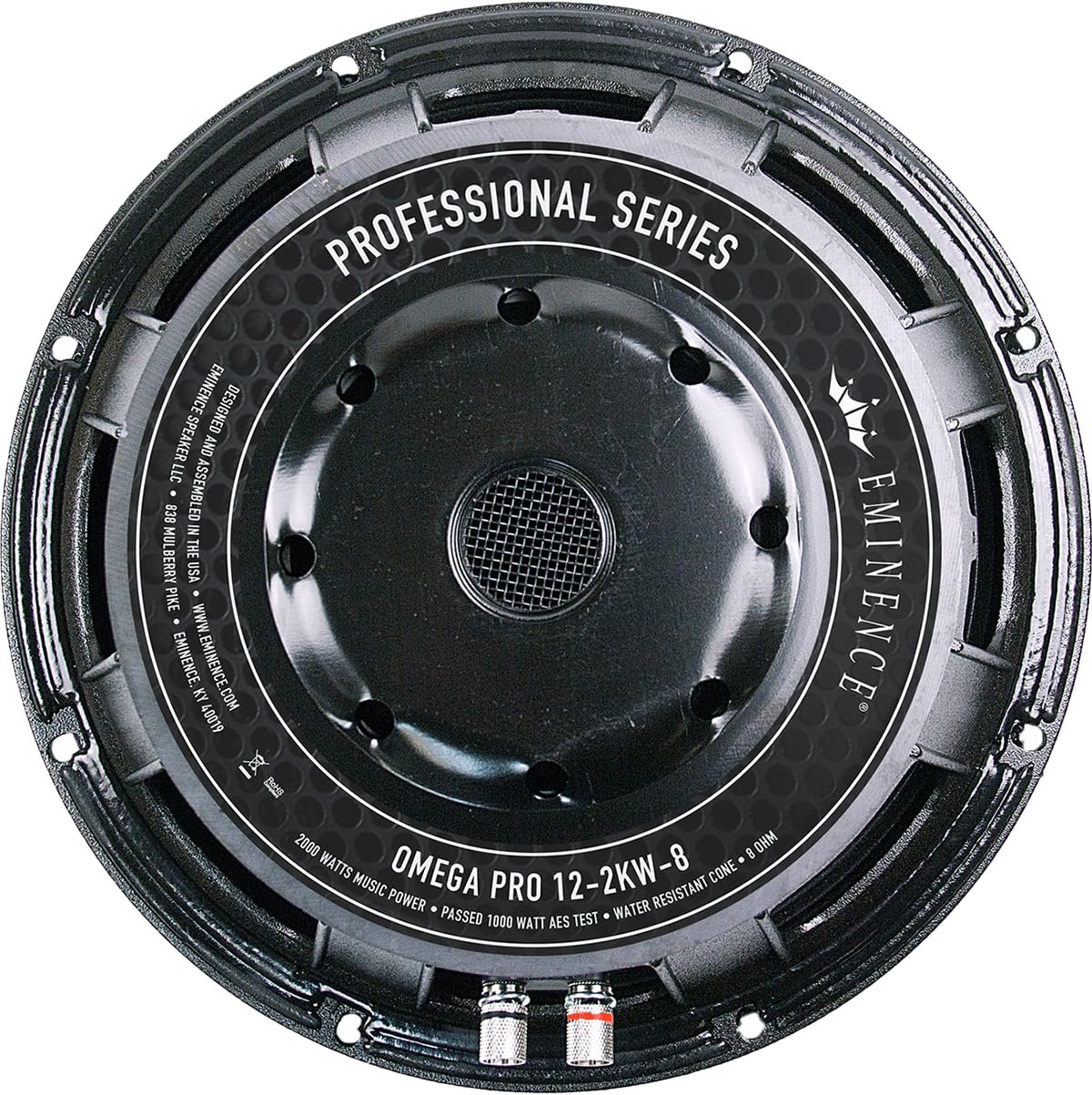

Eminence OMEGAPRO12-2KW-8 Professional Series 12-inch Bass Speaker 1000 Wrms 2000 Watt Peak Pro Audio Loudspeaker 8 Ohm Water Resistant Cone Dust Cap
- Features include || 2000W Program Power || 4000W (peak) AES || 12” Nominal Diameter || 8 Ω || Water Resistant Cone &Dust-cap || Applications || Mid-Bass | Subwoofer | Woofer | Pro Audio | Bass Guitar || Box Type: Vented | Scoop Loading | Horn Loading || PARAMETERS (1) || Resonant Frequency (fs) : 48.14 Hz || DC Resistance (Re) : 6.04 Ω || Coil Inductance (Le) : 1.13 m H || Mechanical Q (Qms) : 14.88 || Electromagnetic Q (Qes) : 0.4 || Total Q (Qts) : 0.39 ||
- PARAMETERS (2) || Compliance Equivalent Volume (Vas) : 49.55 liters / 1.75 cu.ft. || Peak Diaphragm Displacement Volume (Vd) : 387 cc || Mechanical Compliance of Suspension (Cms) : 0.12 mm/N || BL Product (BL) : 20.40 T-M || Diaphragm Mass Inc. Airload (MMs) : 91.96 grams || Efficiency Bandwidth Product (EBP) : 119.2 || Maximum Linear Excursion (Xmax) : 7.1 mm || Surface Area of Cone (Sd) : 545.4 cm2 || Maximum Mechanical Limit (Xlim) : 19.6 mm ||
- SPECIFICATION || Nominal Basket Diameter : 12-in, 304.8 mm || Nominal Impedance* : 8 Ω || Power Rating* : || Program Power : 2000 W || Watts : 1000 W || Resonance : 48.14 Hz || Usable Frequency Range : 42 Hz - 1.6 kHz || Sensitivity* : 93.33 dB || Magnet Weight : 109 oz. || Gap Height : 0.375-in, 9.5 mm || Voice Coil Diameter : 4-in, 101.6 mm ||
- MOUNTING INFORMATION || Recommended Enclosure Volume || Vented : 31.15-87.78 liters / 1.1-3.1 cu.ft. || Driver Volume Displaced : 183 cu.in. / 3 liters || Overall Diameter : 12.38", 314.45 mm || Baffle Hole Diameter : 11.06", 280.92 mm || Front Sealing Gasket : Yes || Mounting Holes Diameter : 0.28", 7.112mm || Mounting Holes B.C.D. : 11.7", 297.18mm || Depth : 6.04", 153.416 mm || Net Weight : 21.8 lbs, 9.89 kg || Shipping Weight : 23.8 lbs, 10.8 kgs ||
- MATERIALS OF CONSTRUCTION || Coil Construction : Inside/outside copper voice coil || Coil Former : Fiberglass former || Magnet Composition : Ferrite magnet || Core Details : Vented and extended core || Backplate Details : Vented || Basket Materials : Die-cast aluminum basket || Cone Composition : Water-resistant treated paper cone || Cone Edge Composition : Cloth cone edge || Dust Cap Composition : Water-resistant treated dust cap ||
