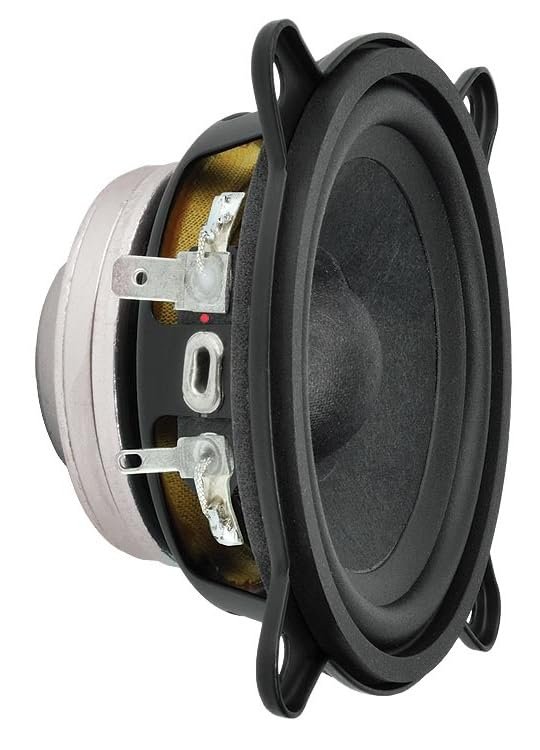

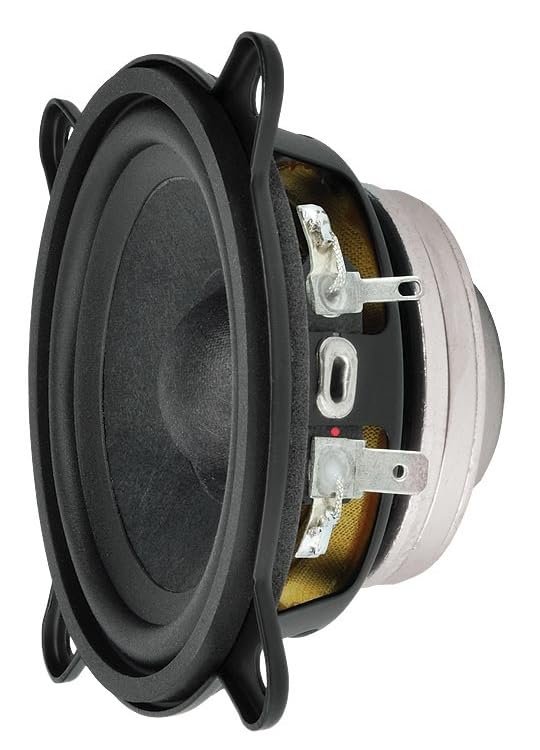

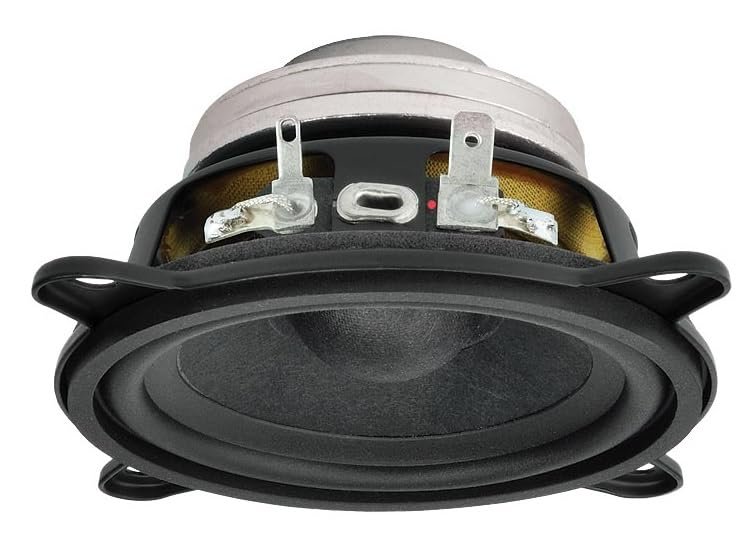

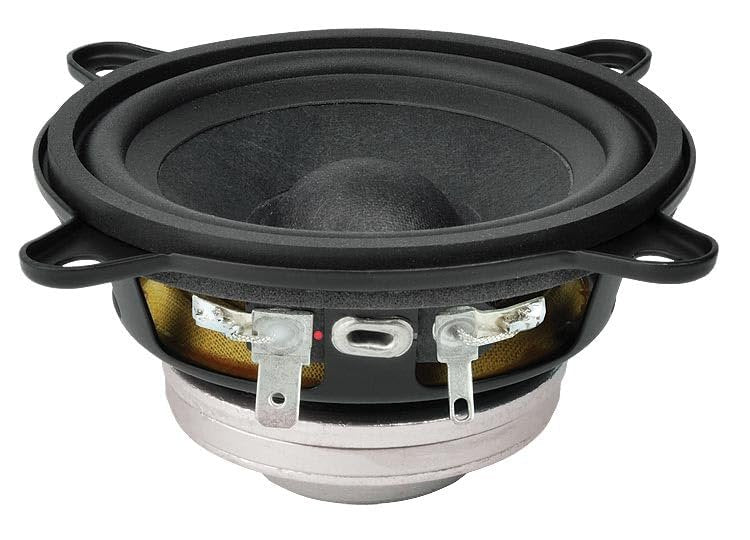

Faital Pro 3FE22-8 3-inch Full Range Loudspeaker 8-Ohms Professional Audio Speaker Applications 20-Watt Rms 40-Watt Max

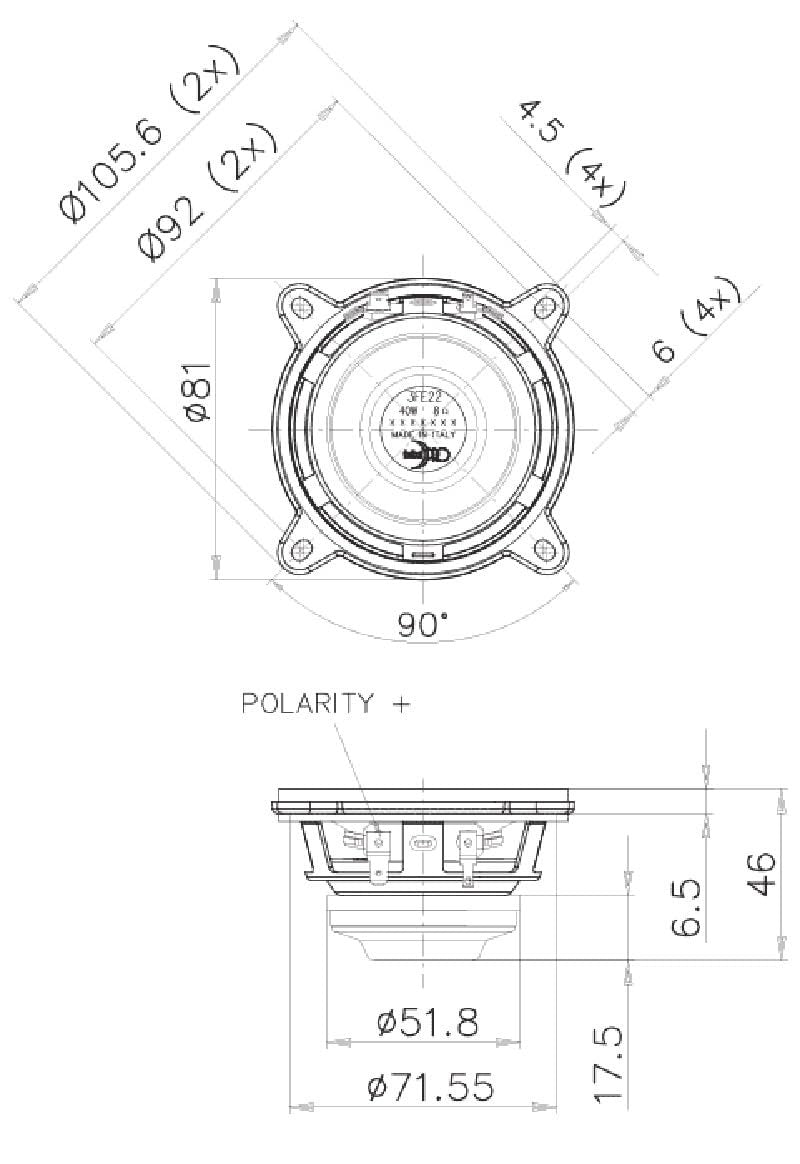

- NOMINAL SPECIFICATIONS || Nominal Diameter : 80 mm (3 in) || Overall Diameter : 105.6/81 mm (4.16/3.19 in) || Bolt Circle Diameter : 92 mm (3.62 in) || Baffle Cutout Diameter : 73.6 mm (2.90 in) || Depth : 46 mm (1.81 in) || Flange and Gasket Thickness : 6.5 mm (0.26 in) || Net Weight : 240 g (0.53 lb) || Shipping Box (Single Carton Box - 36 units) : 285 x 285 x 255 mm (11.2 x 11.2 x 10.0 in) || Shipping Weight (36 units) : 10 kg (22.00 lb) ||

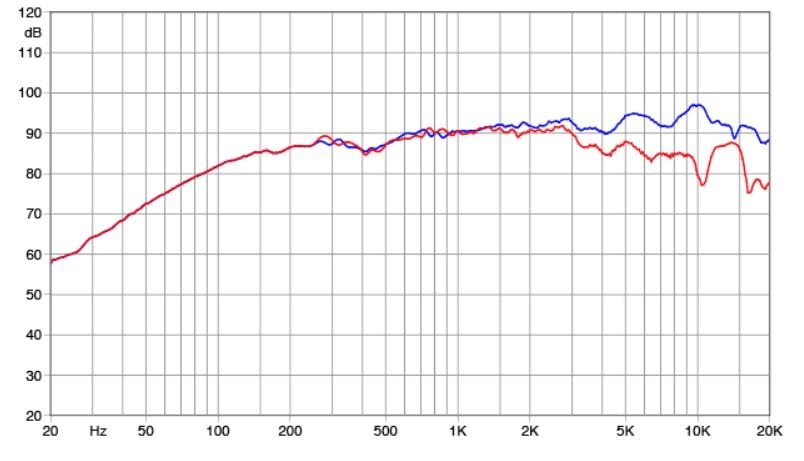

- TECHNICAL PARAMETERS || Nominal Impedance : 8 Ohm || Minimum Impedance : 6.2 Ohm || AES Power Handling (1) : 20 W || Maximum Power Handling (2) : 40 W || Sensitivity (1W/1m) : 91 dB || Frequency Range : 100÷20000 Hz || Voice Coil Diameter : 19 mm (0.75 in) || Winding Material : Al || Former Material : Kapton ||
- TECHNICAL PARAMETERS || Winding Depth : 5 mm (0.20 in) || Magnetic Gap Depth : 4 mm (0.16 in) || Flux Density : 1.4 T || Magnet : Neodymium Ring || Basket Material : Steel || Demodulation : No || Cone Surround (3) : Half Roll || NET Air Volume filled by Loudspeaker : 0.060 dm^3 (0.002 ft^3) || Spider Profile : 1x constant height waves ||

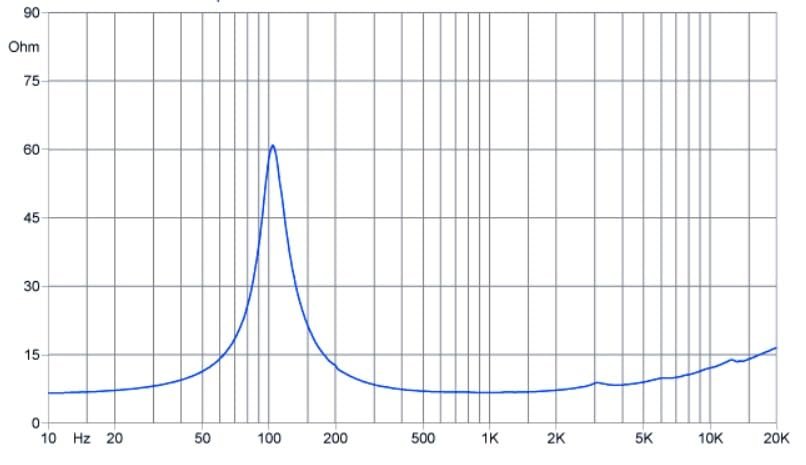

- THIELE AND SMALL PARAMETERS || Fs : 110 Hz || Re : 6.2 Ohm || Qes : 0.52 || Qms : 5 || Qts : 0.47 || Vas : 1.3 dm^3 (0.04 ft^3) || Sd : 33 cm^2 (5.12 in^2) || Xmax (4) : 1.83 mm || Xdamage (5) : 7.3 mm || Mms : 2.5 g || Bl : 4.5 N/A || Le : 0.15 mH || Mmd : 2.3 g || Cms : 0.84 mm/N || Rms : 0.3 kg/s || Eta Zero : 0.31 % || EBP : 212 Hz ||
- Brand : FAITAL PRO || Model Number : 3FE22-8 | 3FE22 || UPC : 810130951291 || PART NUMBER (P/N) Faston Terminals - 8 Ohm Version : 00804083 || NOTES || Packaged and sold in multiples of 36 units || (1) 2 Hours Test According to AES 2-1984 Rev. 2003 || (2) Maximum power is defined as 3dB greater than nominal power || (3) NBR (Rubber) || (4) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3) || (5) Maximum excursion before permanent damage
