PRV AUDIO 1" EXIT PRO AUDIO TITANIUM COMPRESSION DRIVER D230Ti-B
Exit Throat Diameter: 1” (25.4mm)
Nominal impedance: 8 Ohms
Rated AES Power Handling (RMS): 30 Watts
Program Power: 60 Watts
Sensitivity 2.83V at 1m: 105 dB
Recommended Hi Pass Crossover**: 2000 Hz**
*For Full Power Handling **12db Per Octave Crossover

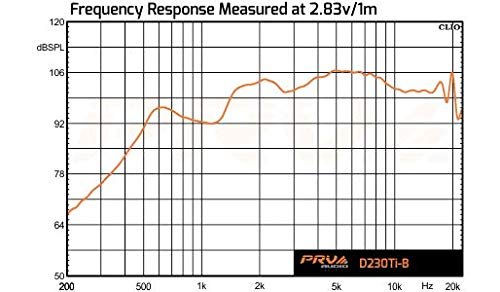

Frequency Response at -10dB: 1,800 – 20,000 Hz
Voice Coil Diameter: 1.4″ (35.5 mm)
Voice Coil Wire: Copper
Voice Coil Former Material: Kapton
Diaphragm Material: Titanium
Flux Density: 1.65 T
Magnet Material: Ferrite

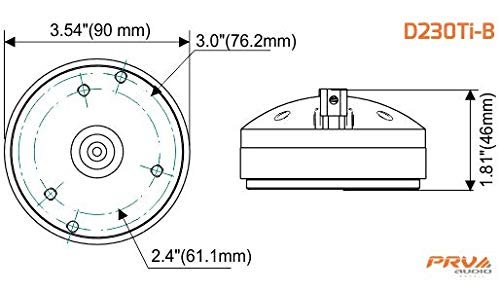

Overall Diameter: 3.54” (90 mm)
Overall Depth: 2.40” (61 mm)
Mounting Thread: 1 3/8” 18 TPI
Net Weight: 2.05 lbs (0.93 kg)
Shipping Weight: 2.14 lbs (0.97 kg)
Carton Dimensions W x L x H: 3.74” x 3.74” x 2.95” (95 x 95 x 75 mm)
Replacement Diaphragm: RPD230Ti
The D230Ti-S compression driver is known for excellent driver performance, reliability, and power handling as replacement and upgrade for many PA speakers that use a standard 1-3/8″-18 TPI horn.

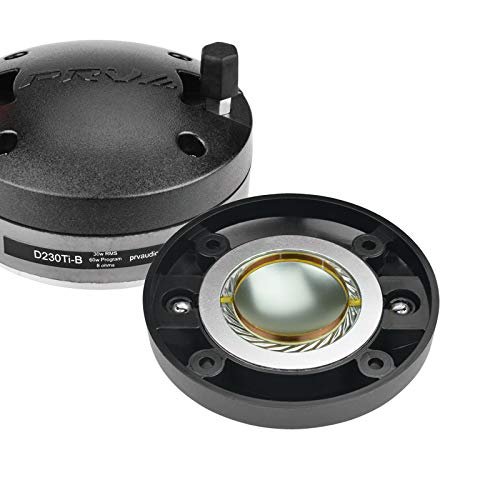

The voice coil is a copper clad aluminum wire wound on a Kapton high temperature coil former. The one-piece titanium diaphragm reduces the amount of moving mass, extending the high-frequency response of the driver.
Also available in both bolt-on and screw-on models (D230T-B / D230Ti-S). The D230Ti-B is a lightweight driver that weighs just 2lbs, and yet offers you outstanding response through 20kHz. The pure titanium diaphragm is supported by a Kapton former results in a lightweight, yet durable design and offers a more natural sound for high SPL applications.
The D230Ti-S is designed to ensure a quality sound and long-lasting play in your large environment applications and replacing your old drivers is easy with the standard 1” screw-on design
POWER YOU CAN RELY ON: The D230Ti-B compression driver is known for excellent driver performance, reliability, and power handling as replacement and upgrade for many PA speakers that use a standard 1-3/8″-18 TPI horn.SOLID STRUCTURE: The voice coil is a copper clad aluminum wire wound on a Kapton high temperature coil former.DESIGNED FOR EFFICIENCY: The voice coil is a copper clad aluminum wire wound on a Kapton high temperature coil former. The one-piece titanium diaphragm reduces the amount of moving mass, extending the high frequency response of the driver.LIGHTWEIGHT: The D230Ti-B is a lightweight driver that weighs just 2lbs, and yet offers you outstanding response through 20kHz. The pure titanium diaphragm is supported by a Kapton former results in a light weight, yet durable design and offers a more natural sound for high SPL applications.UPGRADE TODAY. HEAR THE DIFFERENCE: designed to ensure a quality sound and long lasting play in your large environment applications and replacing your old drivers is easy with the standard 1” screw-on design. This driver is also available in both bolt-on and screw-on models (D230T-B / D230Ti-S).
