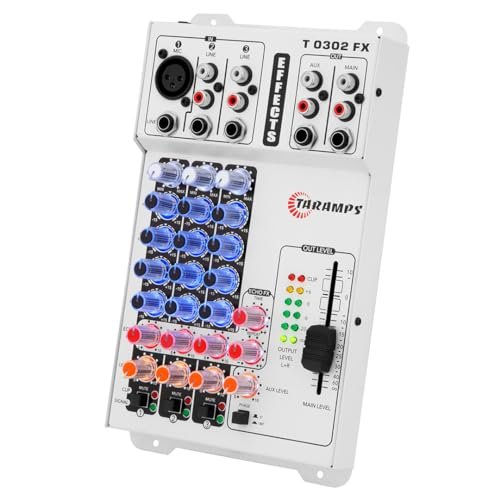

TARAMPS AUDIOMIXERT0302 Echo FX Sound Table 3-Channel Car Audio Mixer with LED Light in White Red Colorful With illuminated Knobs and Improved Adjustments
- The T0302 FX mixer combines exceptional quality with sophisticated design. With illuminated knobs and improved adjustments, including the Echo Effect, this mixer will take your sound system to the next level. The T0302 FX is available in three lighting versions to meet the most varied styles: White, Red and Colored. Whatever your preference, you’ll get a visually stunning experience and impeccable sound performance. ||
- TECHNICAL INFORMATION || FREQUENCY RESPONSE : 2Hz ~ 76KHz || TOTAL HARMONIC DISTORTION : <0,009% (T.H.D.) || SIGNAL TO NOISE RATIO : 112dB || FREQUENCY RESPONSE (-3DB) (PT) : 2Hz ~76KHz || TOTAL HARMONIC DISTORTION (PT) : <0,009% (T.H.D.) || SIGNAL-TO-NOISE RATIO (SNR) (PT) : 112dB ||
- INPUT SENSITIVITY || Channel 1 = Mic (XLR) Min: 500mV ~ Max 7mV | Line (TRS) Min : 620mV ~ Max 7.6mV || Channels 2 & 3 = Line (TRS/RCA) Min : 2.55V ~ Max: 60mV || 4 EQUALIZATION BANDS PER CHANNEL || High ±15dB (18KHz) | Mid High ±15dB (2.4KHz) | Mid Low ±15dB (240Hz) | Low ±15dB (30Hz) ||
- INPUT IMPEDANCE || Channel 1 = Mic (XRL) : Unbalanced 4K Ohms / Balanced 8K Ohms | Line (TRS) : Unbalanced 8.5K Ohms / Balanced 17K Ohms || Channels 2 & 3 = Line (TRS) : Unbalanced 10K Ohms | Line (RCA) : Unbalanced 10K Ohms || ECHO FX TIME / ECHO FX REPEAT : 50 ~ 350ms 1 ~ 12 repetitions || OUTPUT IMPEDANCE : Main Out (P10/RCA) : 47R | Aux Out (P10/RCA) : 47R || MAXIMUM OUTPUT LEVEL : Main Out (P10/RCA) : 18 dBu/6.3Vac | Aux Out (P10/RCA) : 18 dBu/6.3Vac ||

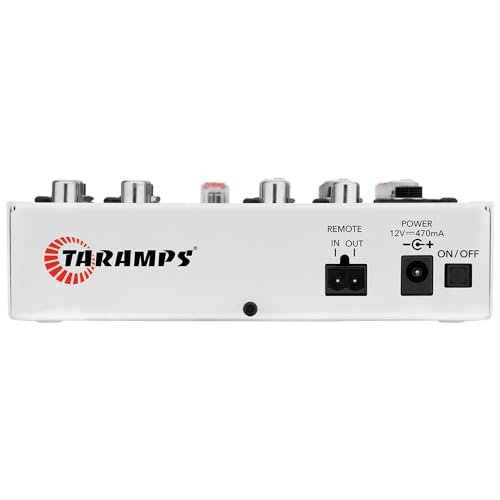

- POWER SUPPLY VOLTAGE (POWER) : 9 ~ 16 VDC || MAXIMUM CONSUMPTION : 470 mA || REMOTE INPUT (REM CONNECTOR) : 9 ~ 16 VDC || REMOTE OUTPUT (REM CONNECTOR) : 100 mA || DIMENSIONS (W X H X D) : 5.28" x 1.65" x 9.66" (145 x 42 x 242 mm) WEIGHT : 1.80lb (0.82Kg) || EAN Multicolored : 7908706600377
