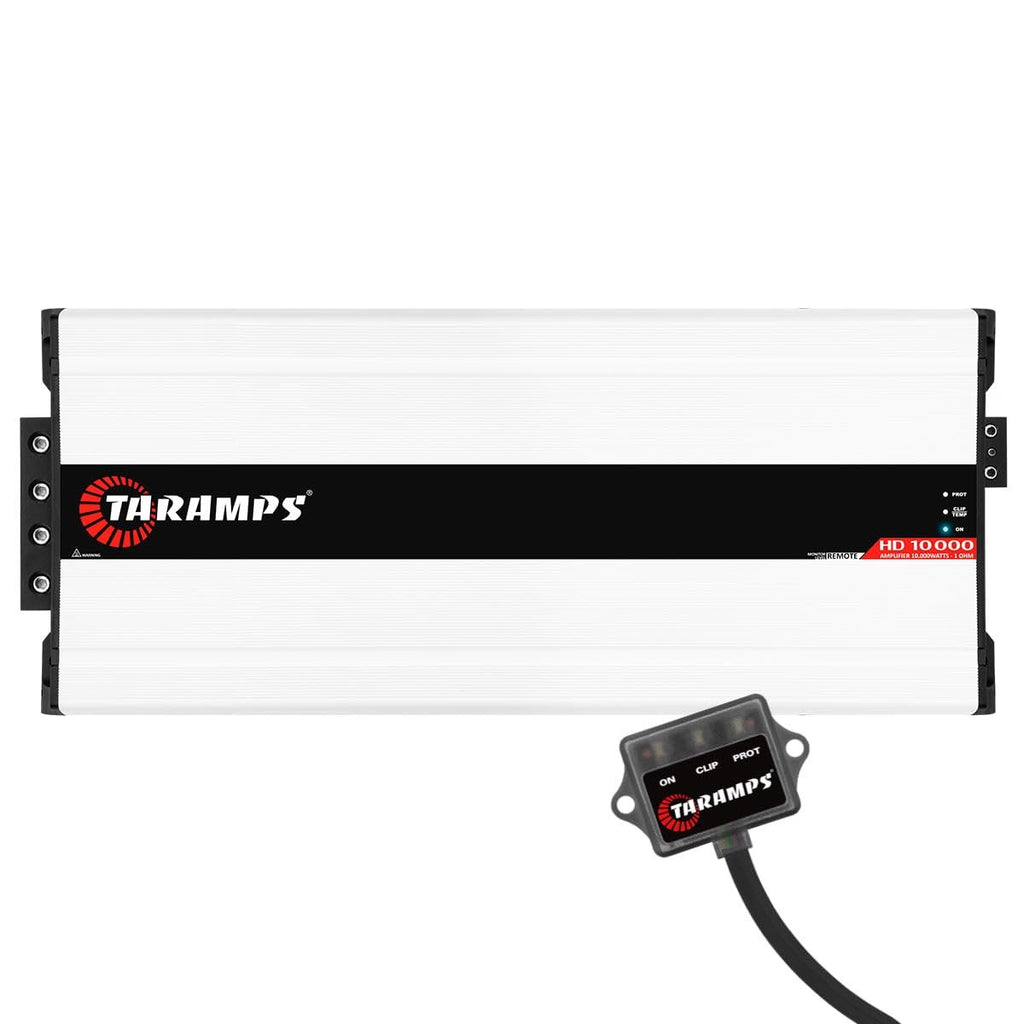

TARAMPS HD10000.1 Pro Car Audio Class D Amplifier 10000 Watts Sound System 1 Ohm Short-Circuit in Relation to GND, Low Impedance, Low/High Voltage Thermal Protection Covers Sub Bass Mid-bass Midrange
- SPECIFICATION (1) || 1 Ohm VERSION || Nominal Power @12.6 VDC : 1 Ohm: 10,162W RMS | 2 Ohms: 6,080W RMS | 4 Ohms: 3,332W RMS || Nominal Power @13.8 VDC : 1 Ohm: 11,545W RMS | 2 Ohms: 7,366W RMS | 4 Ohms: 3,987W RMS || Nominal Power @14.4 VDC : 1 Ohm: 12,136W RMS | 2 Ohms: 7,787W RMS | 4 Ohms: 4,370W RMS || Number of Channels : 01 || Input Sensitivity : 0.22 V ~ 4 V || Signal to Noise Ratio : >90 dB || Frequency Response : 10 Hz ~ 5 KHz (-3 dB) ||
- SPECIFICATION (2) || Crossover high pass (HPF) : 10 Hz ~ 90 Hz (-12 dB/8ª) Variable || Crossover low pass (LPF) : 90 Hz ~ 5 KHz (-12 dB/8ª) Variable || Bass boost : 35 Hz ~ 55 Hz | 0 ~ +10 || Efficiency : 81% || Input Impedance : 10K Ohms || protection system : Short-Circuit in Relation to GND, Low Impedance, Low/High Voltage and Thermal Protection ||

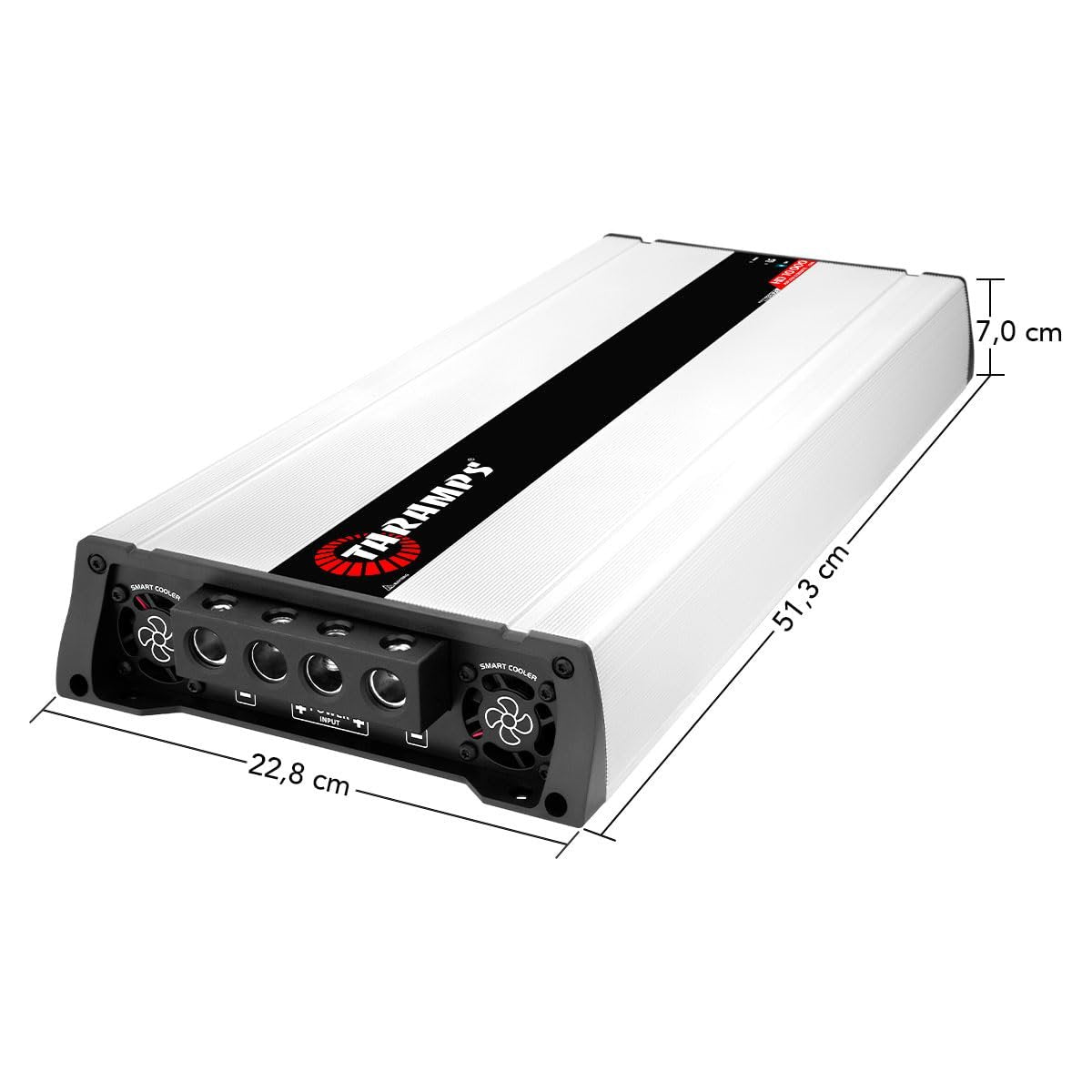

- SPECIFICATION (3) || Minimum Supply Voltage : 9 VDC || Maximum Supply Voltage : 17 VDC || Consumption at rest : 4.2A || Maximum music consumption : 490A || Maximum consumption in sinusoidal signal : 980A || Dimensions (WxHxD) : 8.98" x 2.75" x 20.20" (228 x 70 x 513 mm) || Weight : 14.66 lb (6.65 Kg) || EAN : 7908706601510 ||
- Discover the power of the Taramps HD 10000, an amplifier that will elevate the performance of your sound system. With the 1 Ohm version you get an impressive 10,162 WRMS at 12.6V and can reach over 12,000 WRMS with a supply voltage of 14.4V. Its wide frequency response, which ranges from 10 Hz to 5 KHz, covers subbass, bass, mid-bass and midrange frequencies. Experience high-power sound performance, superior quality and unparalleled endurance, transforming your listening experience. ||

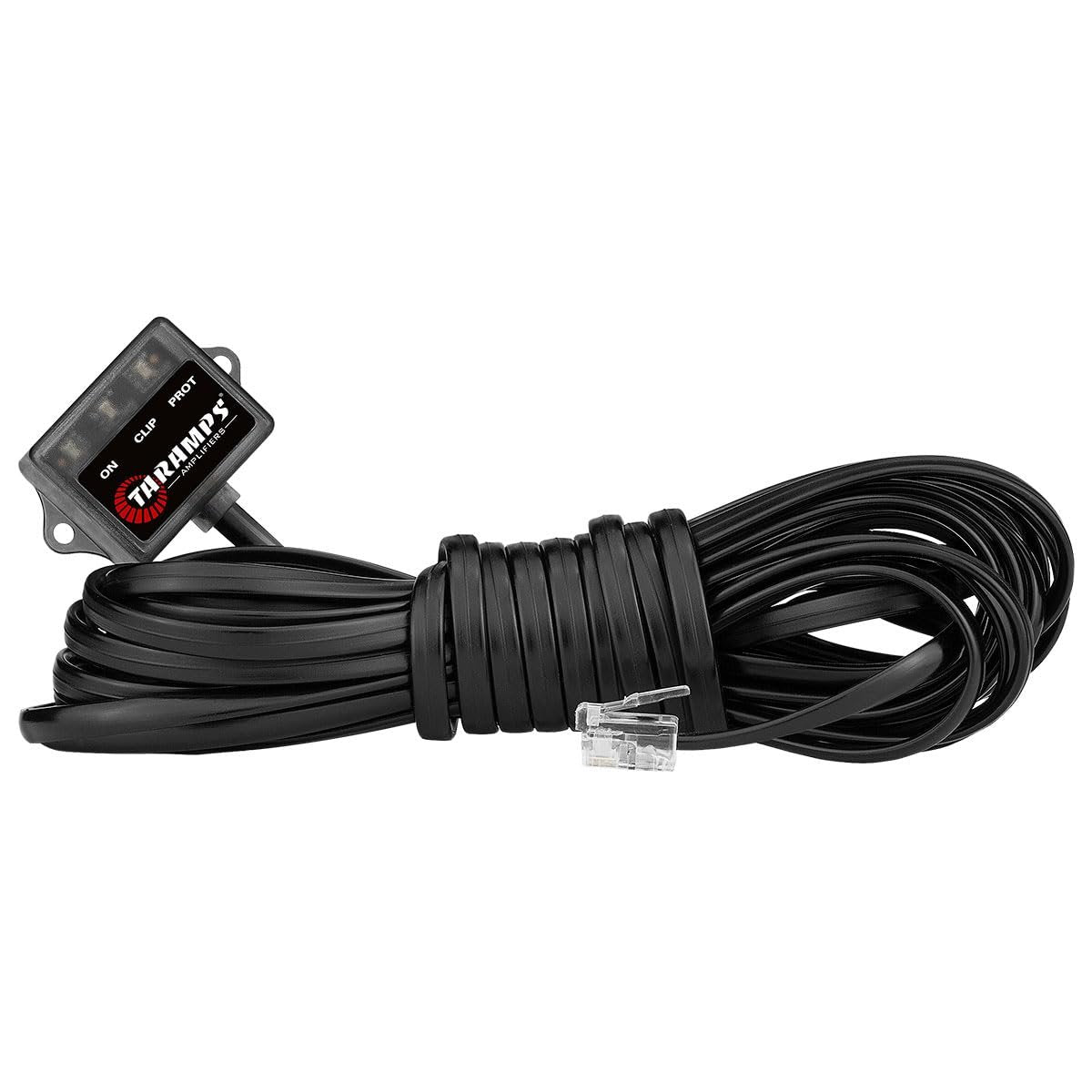

- This product is compatible with the Monitor Level Remote and LED Clip Monitor M1 accessories.
